Abstract

Transcriptional and post-transcriptional regulation of gene expression is of fundamental importance to numerous biological processes. Nowadays, an increasing amount of gene regulatory relationships have been documented in various databases and literature. However, to more efficiently exploit such knowledge for biomedical research and applications, it is necessary to construct a genome-wide regulatory network database to integrate the information on gene regulatory relationships that are widely scattered in many different places. Therefore, in this work, we build a knowledge-based database, named ‘RegNetwork’, of gene regulatory networks for human and mouse by collecting and integrating the documented regulatory interactions among transcription factors (TFs), microRNAs (miRNAs) and target genes from 25 selected databases. Moreover, we also inferred and incorporated potential regulatory relationships based on transcription factor binding site (TFBS) motifs into RegNetwork. As a result, RegNetwork contains a comprehensive set of experimentally observed or predicted transcriptional and post-transcriptional regulatory relationships, and the database framework is flexibly designed for potential extensions to include gene regulatory networks for other organisms in the future. Based on RegNetwork, we characterized the statistical and topological properties of genome-wide regulatory networks for human and mouse, we also extracted and interpreted simple yet important network motifs that involve the interplays between TF-miRNA and their targets. In summary, RegNetwork provides an integrated resource on the prior information for gene regulatory relationships, and it enables us to further investigate context-specific transcriptional and post-transcriptional regulatory interactions based on domain-specific experimental data.

Database URL : http://www.regnetworkweb.org

Introduction

Gene regulatory events play crucial roles in a variety of physiological and developmental processes in a cell, in which macromolecules such as genes, RNAs and proteins are coordinated to orchestrate operative responses under different conditions ( 1 ). Therefore, substantial efforts have been made to reveal gene regulatory network structures from transcriptomic profiling datasets generated by, e.g. microarray ( 2 ), ChIP-Seq ( 3 ) and RNA-Seq ( 4 ). Although a number of data-driven reverse engineering techniques were previously proposed to identify regulatory relationships between regulators and their targets [e.g. TFs and downstream genes ( 5 )], the low accuracy of these existing methods due to the curse of dimensionality significantly limits their applications in practice ( 6 ). However, several recent studies suggested a promising alternative for identifying regulatory network structures by combining the high-throughput transcriptomic profiling data with the prior knowledge on known or predicted regulatory relationships available in various databases and literature ( 7–9 ). For instance, the framework in ( 9 ) can significantly improve the accuracy of regulatory relationship identification by appropriately incorporating prior knowledge into the transcriptomic profiling data. Also, the results from several other independent studies suggest that the incorporation of prior knowledge can help to better identify the context-specific regulatory interactions corresponding to certain phenotypes ( 7–12 ). It is thus of paramount interest to collect, organize and share such prior information with the related communities for future biomedical research and practice.

Prior knowledge on gene regulatory relationships from multiple sources (e.g. genomic context, conserved gene co-expression, knockout or high-throughput experiment) spreads out in various databases and literature. It is desirable to develop a unified database and provide users with the necessary tools for information access or retrieval. However, only limited efforts such as RegulonDB for Escherichia coli ( 13 ) have been previously made towards this goal, and the works on the genome-wide regulatory relationships for other species are still lacking so far. Considering the overwhelming importance of human and mouse in biomedical studies, we build a database of genome-wide regulatory relationships for the two species. It should be noted that, besides the experimentally observed or discovered regulatory relationships curated in public databases such as TRED ( 14 ) and KEGG ( 15 ), the TF binding site (TFBS) information for TF–gene regulatory interaction potentials ( 16 , 17 ) can also be used to predict new transcriptional regulatory relationships between TFs and genes by matching the binding motifs in DNA sequences. Thus, such predictions based on TFBS are also integrated into our database to provide a more comprehensive landscape of gene regulations. Moreover, to include post- transcriptional regulatory relationships in the database, we also consider miRNAs, which are small non-coding RNA molecules (∼22 nucleotides) found in various organisms ( 18 ) and ubiquitously perform crucial roles in post- transcriptional regulation of gene expression by binding to the 3′ untranslated region of mRNA ( 19 ).

Although there exist many computational methods for deciphering the transcriptional regulatory interactions between TFs and genes, the integrative analysis considering both TF and miRNA as regulators is still very limited due to the lack of a ready-to-use regulatory network database ( 20 ). In recognition of such an emerging need, here we build a comprehensive database for genome-wide regulatory networks at both transcriptional and post- transcriptional levels for human and mouse by integrating the documented regulatory relationships from 25 databases. RegNetwork can be freely accessed at http://www.regnetworkweb.org .

Materials and methods

Data sources

Both transcriptional and post-transcriptional regulatory relationships are important, we thus consider both TFs and miRNAs as regulators. Figure 1 shows a basic regulatory circuit involving TF, miRNA and target gene, as well as the essential steps of transcriptional and post- transcriptional regulation of gene expression. Note that the miRNA component is usually missing in most of the previous studies on reverse engineering of gene regulatory networks. However, given its important role in the post-transcriptional regulatory process ( 18 ), we believe that it is necessary to include miRNAs in RegNetwork.

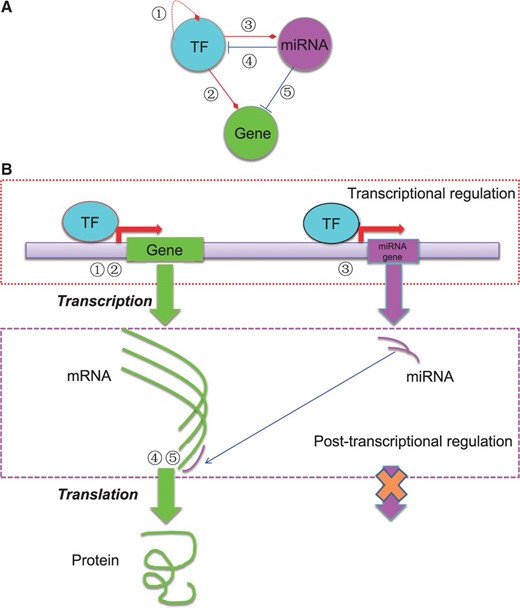

 The basic regulatory circuit involving TF, miRNA and target gene ( A ) and the schematic illustration of the mechanisms of transcriptional and post-transcriptional regulation of gene expression ( B ). In total, five types of regulatory relationships are considered among TF, miRNA and target gene.
Figure 1.

The basic regulatory circuit involving TF, miRNA and target gene ( A ) and the schematic illustration of the mechanisms of transcriptional and post-transcriptional regulation of gene expression ( B ). In total, five types of regulatory relationships are considered among TF, miRNA and target gene.

As shown in Figure 1 , five types of regulatory relationships among TFs, miRNAs and target genes are considered in the regulatory network. More specifically, for transcriptional regulatory relationships, ‘TF-TF’ (①) and ‘TF-gene’ (②) interactions are considered; for post-transcriptional regulatory relationships, the curated and predicted ‘miRNA-gene’ interactions (⑤) are considered; for interplays between regulators, ‘TF-miRNA’ (③) and ‘miRNA-TF’ (④) are included. A number of databases contain regulatory information for human and mouse, from which we collect the relevant information and data (e.g. TFs, miRNAs, TFBS motifs, genes and their annotations). Table 1 lists the databases we used to build the RegNetwork.

Table 1.

The databases used to build the RegNetwork database by collecting knowledge on gene regulatory relationships in human and mouse

DatabaseDescriptionSpeciesWebsiteReferenceVersion/access date
BioGridBioGRID is an online interaction repository with data compiled through comprehensive curation effortsMousehttp://thebiogrid.org/ ( 21 ) Version 3.2.100
EnsemblEnsembl is to provide a centralized resource for geneticists, molecular biologists and other researchers studying the genomes of our own species and other vertebrates and model organismsHuman and mousehttp://www.ensembl.org ( 22 ) Release 71 (March 2013)
FANTOMFunctional Annotation Of Mammalian genome and is an international research consortium to assign functional annotations to the full-length complementary DNAs (cDNAs)Human and mousehttp://fantom.gsc. riken.jp/ ( 23 ) 5 March 2010
GenBankA comprehensive database developed by NCBI, NIH, which contains publicly available nucleotide sequences for more than 250 00 formally described speciesHuman and mousehttp://www.ncbi.nlm.nih. gov/genbank/ ( 24 ) 14 August 2012
HPRDHPRD is a curated human protein-protein interaction databaseHumanhttp://www.hprd.org ( 25 ) Release 9
IntActIntAct is a database system of molecular interaction data. All interactions are derived from literature curation or direct user submissionsMousehttp://www.ebi.ac.uk/intact/ ( 26 ) 16 October 2012
JASPARAn open-access database of annotated, matrix-based transcription factor binding site (TFBS) profiles for multicellular eukaryotesHuman and mousehttp://jaspar.genereg.net/ ( 17 ) 12 October 2009
KEGGKEGG is a widely used pathway database resource for understanding high-level linkage functions and utilities of biological systemHuman and mousehttp://www.genome.jp/kegg/ ( 15 ) 5 December 2012
LiftoverA UCSC tool converts genome coordinates and genome annotation files between assembliesMousehttp://genome.ucsc.edu/cgi-bin/hgLiftOver ( 27 ) 7 March 2012
MicroCosmMicroCosm Targets (formerly miRBase Targets) is a web resource containing computationally predicted targets for microRNAs across many speciesHuman and mousehttp://www.ebi.ac.uk/enright-srv/microcosm/htdocs/targets/v5/ ( 28 ) Version v5
MicroTDIANA-microT is a combined computational- experimental approach predicts mouse microRNA targetsHuman and mousehttp://www.microrna.gr/microT ( 29 ) Version v3.0
miRandamiRanda is a miRNA target prediction method based on dynamic programming algorithmHuman and mousehttp://www.microrna. org/ ( 30 ) Release August 2010
miRBasemiRBase database is a searchable database of published miRNA sequences and annotationHuman and mousehttp://www.mirbase.org/ ( 31 ) Release 18
miRecordsmiRecords is a resource for animal miRNA-target interactions. The validated targets component is used, which is a large, high-quality database of experimentally validated miRNA targetsHuman and mousehttp://miRecords.umn. edu/miRecords ( 32 ) 25 November 2010
miRTarBasemiRTarBase is a database which curates experimentally validated microRNA-target interactionsHuman and mousehttp://miRTarBase.mbc.nctu.edu.tw/ ( 33 ) Release 2.5 (October 2011)
PicTarPicTar is a computational method for identifying common targets of microRNAsHuman and mousehttp://pictar.mdc-berlin.de/ ( 34 ) 26 March 2007
RefSeqRefSeq provides a non-redundant collection of sequences representing genomic data, transcripts and proteinsHuman and mousehttp://www.ncbi.nlm.nih. gov/refseq/ ( 35 ) 19 May2013
STRINGSTRING is a database of known and predicted protein interactionsMousehttp://www.string-db.org ( 36 ) Version 9.05
TarbaseTarbase collectes available miRNA targets derived from all contemporary experimental techniques (gene specific and high-throughput)Human and mousehttp://www.microrna.gr/tarbase ( 37 ) Version 5.0
TargetScanTargetScan is an algorithm to predict biological targets of miRNAs by searching for the presence of conserved 8mer and 7mer sites that match the seed region of each miRNAHuman and mousehttp://www.targetscan .org/ ( 38 ) Release 5.2
TRANSFACTransfac database is a manually curated database of eukaryotic transcription factors, their genomic binding sites (TFBS) and DNA binding profilesHuman and mousehttp://www.gene-regulati on.com/pub/databases.html ( 16 ) TRANSFAC 7.0
TransmiRTransmiR is a transcription factor-microRNA regulation databaseHuman and mousehttp://202.38.126.151/hmdd/mirna/tf/ ( 39 ) Version 1.2
TREDTranscriptional Regulatory Element Database (TRED) is an integrated repository repository for both cis- and trans- regulatory elements in mammals. It contains the curated regulations between TF and target geneHuman and mousehttp://rulai.cshl.edu/TRED/ ( 40 ) 12 February 2012
UniProtUniProt is a catalog of information on proteins and it is a central repository of protein sequence and functionHuman and mousehttp://www.uniprot.org/ ( 41 ) Release July2012
UCSCThe University of California, Santa Cruz Genome Browser is a database of genomic sequence and annotation data for a wide variety of organismsHuman and mousehttp://genome.ucsc.edu ( 27 ) mm10, GRCm38 (December 2011)
DatabaseDescriptionSpeciesWebsiteReferenceVersion/access date
BioGridBioGRID is an online interaction repository with data compiled through comprehensive curation effortsMousehttp://thebiogrid.org/ ( 21 ) Version 3.2.100
EnsemblEnsembl is to provide a centralized resource for geneticists, molecular biologists and other researchers studying the genomes of our own species and other vertebrates and model organismsHuman and mousehttp://www.ensembl.org ( 22 ) Release 71 (March 2013)
FANTOMFunctional Annotation Of Mammalian genome and is an international research consortium to assign functional annotations to the full-length complementary DNAs (cDNAs)Human and mousehttp://fantom.gsc. riken.jp/ ( 23 ) 5 March 2010
GenBankA comprehensive database developed by NCBI, NIH, which contains publicly available nucleotide sequences for more than 250 00 formally described speciesHuman and mousehttp://www.ncbi.nlm.nih. gov/genbank/ ( 24 ) 14 August 2012
HPRDHPRD is a curated human protein-protein interaction databaseHumanhttp://www.hprd.org ( 25 ) Release 9
IntActIntAct is a database system of molecular interaction data. All interactions are derived from literature curation or direct user submissionsMousehttp://www.ebi.ac.uk/intact/ ( 26 ) 16 October 2012
JASPARAn open-access database of annotated, matrix-based transcription factor binding site (TFBS) profiles for multicellular eukaryotesHuman and mousehttp://jaspar.genereg.net/ ( 17 ) 12 October 2009
KEGGKEGG is a widely used pathway database resource for understanding high-level linkage functions and utilities of biological systemHuman and mousehttp://www.genome.jp/kegg/ ( 15 ) 5 December 2012
LiftoverA UCSC tool converts genome coordinates and genome annotation files between assembliesMousehttp://genome.ucsc.edu/cgi-bin/hgLiftOver ( 27 ) 7 March 2012
MicroCosmMicroCosm Targets (formerly miRBase Targets) is a web resource containing computationally predicted targets for microRNAs across many speciesHuman and mousehttp://www.ebi.ac.uk/enright-srv/microcosm/htdocs/targets/v5/ ( 28 ) Version v5
MicroTDIANA-microT is a combined computational- experimental approach predicts mouse microRNA targetsHuman and mousehttp://www.microrna.gr/microT ( 29 ) Version v3.0
miRandamiRanda is a miRNA target prediction method based on dynamic programming algorithmHuman and mousehttp://www.microrna. org/ ( 30 ) Release August 2010
miRBasemiRBase database is a searchable database of published miRNA sequences and annotationHuman and mousehttp://www.mirbase.org/ ( 31 ) Release 18
miRecordsmiRecords is a resource for animal miRNA-target interactions. The validated targets component is used, which is a large, high-quality database of experimentally validated miRNA targetsHuman and mousehttp://miRecords.umn. edu/miRecords ( 32 ) 25 November 2010
miRTarBasemiRTarBase is a database which curates experimentally validated microRNA-target interactionsHuman and mousehttp://miRTarBase.mbc.nctu.edu.tw/ ( 33 ) Release 2.5 (October 2011)
PicTarPicTar is a computational method for identifying common targets of microRNAsHuman and mousehttp://pictar.mdc-berlin.de/ ( 34 ) 26 March 2007
RefSeqRefSeq provides a non-redundant collection of sequences representing genomic data, transcripts and proteinsHuman and mousehttp://www.ncbi.nlm.nih. gov/refseq/ ( 35 ) 19 May2013
STRINGSTRING is a database of known and predicted protein interactionsMousehttp://www.string-db.org ( 36 ) Version 9.05
TarbaseTarbase collectes available miRNA targets derived from all contemporary experimental techniques (gene specific and high-throughput)Human and mousehttp://www.microrna.gr/tarbase ( 37 ) Version 5.0
TargetScanTargetScan is an algorithm to predict biological targets of miRNAs by searching for the presence of conserved 8mer and 7mer sites that match the seed region of each miRNAHuman and mousehttp://www.targetscan .org/ ( 38 ) Release 5.2
TRANSFACTransfac database is a manually curated database of eukaryotic transcription factors, their genomic binding sites (TFBS) and DNA binding profilesHuman and mousehttp://www.gene-regulati on.com/pub/databases.html ( 16 ) TRANSFAC 7.0
TransmiRTransmiR is a transcription factor-microRNA regulation databaseHuman and mousehttp://202.38.126.151/hmdd/mirna/tf/ ( 39 ) Version 1.2
TREDTranscriptional Regulatory Element Database (TRED) is an integrated repository repository for both cis- and trans- regulatory elements in mammals. It contains the curated regulations between TF and target geneHuman and mousehttp://rulai.cshl.edu/TRED/ ( 40 ) 12 February 2012
UniProtUniProt is a catalog of information on proteins and it is a central repository of protein sequence and functionHuman and mousehttp://www.uniprot.org/ ( 41 ) Release July2012
UCSCThe University of California, Santa Cruz Genome Browser is a database of genomic sequence and annotation data for a wide variety of organismsHuman and mousehttp://genome.ucsc.edu ( 27 ) mm10, GRCm38 (December 2011)

The ‘Species’ column shows whether the information in a database is available for human, mouse or both. Twenty-five databases are used to build the RegNetwork and they are ordered alphabetically here, among which 17 of these databases in italic contain the regulatory relationships, and the rest provide other necessary information (e.g. annotations) for the database construction.

Table 1.

The databases used to build the RegNetwork database by collecting knowledge on gene regulatory relationships in human and mouse

DatabaseDescriptionSpeciesWebsiteReferenceVersion/access date
BioGridBioGRID is an online interaction repository with data compiled through comprehensive curation effortsMousehttp://thebiogrid.org/ ( 21 ) Version 3.2.100
EnsemblEnsembl is to provide a centralized resource for geneticists, molecular biologists and other researchers studying the genomes of our own species and other vertebrates and model organismsHuman and mousehttp://www.ensembl.org ( 22 ) Release 71 (March 2013)
FANTOMFunctional Annotation Of Mammalian genome and is an international research consortium to assign functional annotations to the full-length complementary DNAs (cDNAs)Human and mousehttp://fantom.gsc. riken.jp/ ( 23 ) 5 March 2010
GenBankA comprehensive database developed by NCBI, NIH, which contains publicly available nucleotide sequences for more than 250 00 formally described speciesHuman and mousehttp://www.ncbi.nlm.nih. gov/genbank/ ( 24 ) 14 August 2012
HPRDHPRD is a curated human protein-protein interaction databaseHumanhttp://www.hprd.org ( 25 ) Release 9
IntActIntAct is a database system of molecular interaction data. All interactions are derived from literature curation or direct user submissionsMousehttp://www.ebi.ac.uk/intact/ ( 26 ) 16 October 2012
JASPARAn open-access database of annotated, matrix-based transcription factor binding site (TFBS) profiles for multicellular eukaryotesHuman and mousehttp://jaspar.genereg.net/ ( 17 ) 12 October 2009
KEGGKEGG is a widely used pathway database resource for understanding high-level linkage functions and utilities of biological systemHuman and mousehttp://www.genome.jp/kegg/ ( 15 ) 5 December 2012
LiftoverA UCSC tool converts genome coordinates and genome annotation files between assembliesMousehttp://genome.ucsc.edu/cgi-bin/hgLiftOver ( 27 ) 7 March 2012
MicroCosmMicroCosm Targets (formerly miRBase Targets) is a web resource containing computationally predicted targets for microRNAs across many speciesHuman and mousehttp://www.ebi.ac.uk/enright-srv/microcosm/htdocs/targets/v5/ ( 28 ) Version v5
MicroTDIANA-microT is a combined computational- experimental approach predicts mouse microRNA targetsHuman and mousehttp://www.microrna.gr/microT ( 29 ) Version v3.0
miRandamiRanda is a miRNA target prediction method based on dynamic programming algorithmHuman and mousehttp://www.microrna. org/ ( 30 ) Release August 2010
miRBasemiRBase database is a searchable database of published miRNA sequences and annotationHuman and mousehttp://www.mirbase.org/ ( 31 ) Release 18
miRecordsmiRecords is a resource for animal miRNA-target interactions. The validated targets component is used, which is a large, high-quality database of experimentally validated miRNA targetsHuman and mousehttp://miRecords.umn. edu/miRecords ( 32 ) 25 November 2010
miRTarBasemiRTarBase is a database which curates experimentally validated microRNA-target interactionsHuman and mousehttp://miRTarBase.mbc.nctu.edu.tw/ ( 33 ) Release 2.5 (October 2011)
PicTarPicTar is a computational method for identifying common targets of microRNAsHuman and mousehttp://pictar.mdc-berlin.de/ ( 34 ) 26 March 2007
RefSeqRefSeq provides a non-redundant collection of sequences representing genomic data, transcripts and proteinsHuman and mousehttp://www.ncbi.nlm.nih. gov/refseq/ ( 35 ) 19 May2013
STRINGSTRING is a database of known and predicted protein interactionsMousehttp://www.string-db.org ( 36 ) Version 9.05
TarbaseTarbase collectes available miRNA targets derived from all contemporary experimental techniques (gene specific and high-throughput)Human and mousehttp://www.microrna.gr/tarbase ( 37 ) Version 5.0
TargetScanTargetScan is an algorithm to predict biological targets of miRNAs by searching for the presence of conserved 8mer and 7mer sites that match the seed region of each miRNAHuman and mousehttp://www.targetscan .org/ ( 38 ) Release 5.2
TRANSFACTransfac database is a manually curated database of eukaryotic transcription factors, their genomic binding sites (TFBS) and DNA binding profilesHuman and mousehttp://www.gene-regulati on.com/pub/databases.html ( 16 ) TRANSFAC 7.0
TransmiRTransmiR is a transcription factor-microRNA regulation databaseHuman and mousehttp://202.38.126.151/hmdd/mirna/tf/ ( 39 ) Version 1.2
TREDTranscriptional Regulatory Element Database (TRED) is an integrated repository repository for both cis- and trans- regulatory elements in mammals. It contains the curated regulations between TF and target geneHuman and mousehttp://rulai.cshl.edu/TRED/ ( 40 ) 12 February 2012
UniProtUniProt is a catalog of information on proteins and it is a central repository of protein sequence and functionHuman and mousehttp://www.uniprot.org/ ( 41 ) Release July2012
UCSCThe University of California, Santa Cruz Genome Browser is a database of genomic sequence and annotation data for a wide variety of organismsHuman and mousehttp://genome.ucsc.edu ( 27 ) mm10, GRCm38 (December 2011)
DatabaseDescriptionSpeciesWebsiteReferenceVersion/access date
BioGridBioGRID is an online interaction repository with data compiled through comprehensive curation effortsMousehttp://thebiogrid.org/ ( 21 ) Version 3.2.100
EnsemblEnsembl is to provide a centralized resource for geneticists, molecular biologists and other researchers studying the genomes of our own species and other vertebrates and model organismsHuman and mousehttp://www.ensembl.org ( 22 ) Release 71 (March 2013)
FANTOMFunctional Annotation Of Mammalian genome and is an international research consortium to assign functional annotations to the full-length complementary DNAs (cDNAs)Human and mousehttp://fantom.gsc. riken.jp/ ( 23 ) 5 March 2010
GenBankA comprehensive database developed by NCBI, NIH, which contains publicly available nucleotide sequences for more than 250 00 formally described speciesHuman and mousehttp://www.ncbi.nlm.nih. gov/genbank/ ( 24 ) 14 August 2012
HPRDHPRD is a curated human protein-protein interaction databaseHumanhttp://www.hprd.org ( 25 ) Release 9
IntActIntAct is a database system of molecular interaction data. All interactions are derived from literature curation or direct user submissionsMousehttp://www.ebi.ac.uk/intact/ ( 26 ) 16 October 2012
JASPARAn open-access database of annotated, matrix-based transcription factor binding site (TFBS) profiles for multicellular eukaryotesHuman and mousehttp://jaspar.genereg.net/ ( 17 ) 12 October 2009
KEGGKEGG is a widely used pathway database resource for understanding high-level linkage functions and utilities of biological systemHuman and mousehttp://www.genome.jp/kegg/ ( 15 ) 5 December 2012
LiftoverA UCSC tool converts genome coordinates and genome annotation files between assembliesMousehttp://genome.ucsc.edu/cgi-bin/hgLiftOver ( 27 ) 7 March 2012
MicroCosmMicroCosm Targets (formerly miRBase Targets) is a web resource containing computationally predicted targets for microRNAs across many speciesHuman and mousehttp://www.ebi.ac.uk/enright-srv/microcosm/htdocs/targets/v5/ ( 28 ) Version v5
MicroTDIANA-microT is a combined computational- experimental approach predicts mouse microRNA targetsHuman and mousehttp://www.microrna.gr/microT ( 29 ) Version v3.0
miRandamiRanda is a miRNA target prediction method based on dynamic programming algorithmHuman and mousehttp://www.microrna. org/ ( 30 ) Release August 2010
miRBasemiRBase database is a searchable database of published miRNA sequences and annotationHuman and mousehttp://www.mirbase.org/ ( 31 ) Release 18
miRecordsmiRecords is a resource for animal miRNA-target interactions. The validated targets component is used, which is a large, high-quality database of experimentally validated miRNA targetsHuman and mousehttp://miRecords.umn. edu/miRecords ( 32 ) 25 November 2010
miRTarBasemiRTarBase is a database which curates experimentally validated microRNA-target interactionsHuman and mousehttp://miRTarBase.mbc.nctu.edu.tw/ ( 33 ) Release 2.5 (October 2011)
PicTarPicTar is a computational method for identifying common targets of microRNAsHuman and mousehttp://pictar.mdc-berlin.de/ ( 34 ) 26 March 2007
RefSeqRefSeq provides a non-redundant collection of sequences representing genomic data, transcripts and proteinsHuman and mousehttp://www.ncbi.nlm.nih. gov/refseq/ ( 35 ) 19 May2013
STRINGSTRING is a database of known and predicted protein interactionsMousehttp://www.string-db.org ( 36 ) Version 9.05
TarbaseTarbase collectes available miRNA targets derived from all contemporary experimental techniques (gene specific and high-throughput)Human and mousehttp://www.microrna.gr/tarbase ( 37 ) Version 5.0
TargetScanTargetScan is an algorithm to predict biological targets of miRNAs by searching for the presence of conserved 8mer and 7mer sites that match the seed region of each miRNAHuman and mousehttp://www.targetscan .org/ ( 38 ) Release 5.2
TRANSFACTransfac database is a manually curated database of eukaryotic transcription factors, their genomic binding sites (TFBS) and DNA binding profilesHuman and mousehttp://www.gene-regulati on.com/pub/databases.html ( 16 ) TRANSFAC 7.0
TransmiRTransmiR is a transcription factor-microRNA regulation databaseHuman and mousehttp://202.38.126.151/hmdd/mirna/tf/ ( 39 ) Version 1.2
TREDTranscriptional Regulatory Element Database (TRED) is an integrated repository repository for both cis- and trans- regulatory elements in mammals. It contains the curated regulations between TF and target geneHuman and mousehttp://rulai.cshl.edu/TRED/ ( 40 ) 12 February 2012
UniProtUniProt is a catalog of information on proteins and it is a central repository of protein sequence and functionHuman and mousehttp://www.uniprot.org/ ( 41 ) Release July2012
UCSCThe University of California, Santa Cruz Genome Browser is a database of genomic sequence and annotation data for a wide variety of organismsHuman and mousehttp://genome.ucsc.edu ( 27 ) mm10, GRCm38 (December 2011)

The ‘Species’ column shows whether the information in a database is available for human, mouse or both. Twenty-five databases are used to build the RegNetwork and they are ordered alphabetically here, among which 17 of these databases in italic contain the regulatory relationships, and the rest provide other necessary information (e.g. annotations) for the database construction.

Regulatory relationship curation and prediction

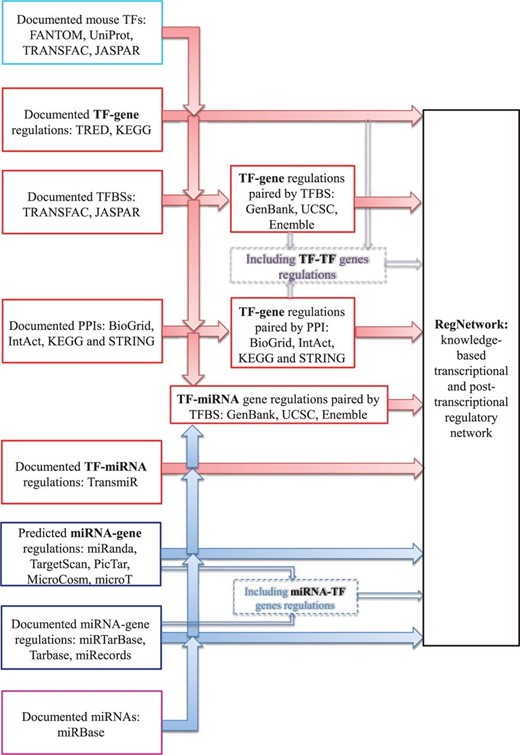

Figure 2 illustrates how the databases listed in Table 1 are used to construct the RegNetwork, and the same procedure in forms of tested computer code is performed for human and mouse, respectively.

The flowchart for RegNetwork construction.
Figure 2.

The flowchart for RegNetwork construction.

More specifically, for transcriptional regulatory relationships, we first compile a list of TFs for human and mouse, respectively, from FANTOM ( 23 ), UniProt ( 41 ), TRANSFAC ( 16 ) and JASPAR ( 17 ). Then, the ‘TF-gene’ interactions documented in TRED and KEGG are directly deposited in RegNetwork. Moreover, we predict the potential ‘TF-gene’ interactions from the documented TF binding site (TFBS) motifs in TRANSFAC and JASPAR. Since TFs regulate the target genes by binding to these experimentally identified TFBSs, we pair the TFs and genes by searching the promoter regions from the 5 kb upstream to 1 kb downstream of the transcription start site (TSS) for RefSeq ( 35 ) genes. Figure 3 illustrates the basic idea of how to pair a TF with the potential target genes via TFBS. As an example, TF ‘NR2F1’ has a known TFBS ‘MA0017’, which is represented by a position weighted matrix, and the sequence logo at the top-left corner in Figure 3 shows its nucleotides composition. Screening the promoter regions in the whole genome of human and mouse for this TFBS, the genes containing ‘MA0017’ in their promoter regions are thus identified as the potential targets of ‘NR2F1’. In general, we retrieve the information of TFBS conservation tracks from the UCSC Genome Browser ( 27 ) and Ensembl ( 22 ) database. Specifically, UCSC’s tfbsConsSites table contains the location and score of TFBS conserved in the human/mouse sequence alignment results. A binding site is considered to be conserved across the alignment results if its score is no less than the threshold score. The score and the threshold are computed with the TRANSFAC matrices by the TFLOC program ( 27 ). Since the UCSC only implements the TFBS conservation tracks in human genome, we map the TFBS conservation information to mouse genome by employing the LiftOver ( 27 ) tool of UCSC. Similarly, Ensemble’s MotifFeatures.gff table contains the alignment information for the TFBS element matrix documented in JASPAR [by MOODS software ( 42 )] for human and mouse. The chromosomal coordinates of TFBSs can be used to identify their corresponding genes and the potential regulatory relationships between TFs and genes can then be established. To include as many TFs and their interaction targets as possible in our database, we also consider and include protein–protein interactions (PPIs) in RegNetwork. We retrieve the PPI pairs that contain at least one TF from HPRD ( 25 ), BioGrid ( 21 ), IntAct ( 26 ), KEGG ( 15 ) and STRING ( 36 ). The functional linkages between TF and its interacting partners indicate putative gene regulations. Obviously, when a TF regulates the expression of its own gene, the ‘TF-TF’ self-regulations are also identified. To be consistent in this process, TFs and genes are represented using their corresponding NCBI Entrez IDs and official symbols ( 24 ).

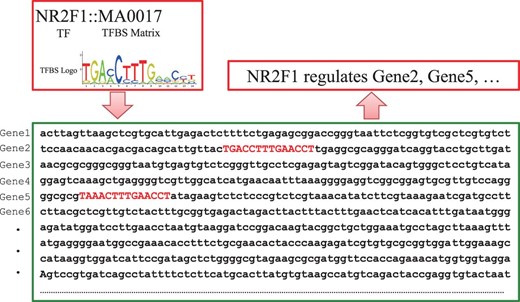

Schematic illustration of pairing TF and genes by TFBSs. When the documented TFBS ‘MA0017’ is found in the promoter regions of ‘Gene2’ and ‘Gene 5’, TF NR2F1 is predicted to have a potential to regulate the two genes accordingly.
Figure 3.

Schematic illustration of pairing TF and genes by TFBSs. When the documented TFBS ‘MA0017’ is found in the promoter regions of ‘Gene2’ and ‘Gene 5’, TF NR2F1 is predicted to have a potential to regulate the two genes accordingly.

For post-transcriptional regulations, the experimentally validated ‘miRNA–gene’ pairs in human and mouse from miRTarBase ( 33 ), TarBase ( 37 ) and miRecords ( 32 ) are directly deposited in RegNetwork. Then, the predicted ‘miRNA–gene’ interactions by one of the five representative algorithms, i.e. miRanda ( 30 ), TargetScan ( 38 ), PicTar ( 34 ), MicroCosm ( 28 ) and micorT ( 29 ), are included. Similarly, the documented ‘miRNA–TF’ genes regulatory relationships are directly deposited into RegNetwork.

The documented ‘TF–miRNA’ regulatory relationships in TransmiR ( 39 ) are also directly imported into RegNetwork. Then, the potential interactions between TFs and miRNA-encoding genes are predicted based on TFBS information using the similar method for potential ‘TF–gene’ interactions as described above. In such a way, the documented and putative regulatory pairs are both included in RegNetwork. For certain pairs of genes, the regulator (or target) gene in one database may be labeled as target (or regulator) gene in another database. We merged such results and thus the interactions between these pairs of genes can be bidirectional. That is, we used an ‘inclusive’ principle to deal with the inconsistency between the databases. At the same time, we also provide a link to the original databases for users to check the detailed information regarding the inconsistency and decide which result they will believe and use for a particular case. Finally, we added the degree of confidence for each of the regulatory interactions by using a three-level labeling approach (i.e. a ‘high’, ‘medium’ or ‘low’ confidence). More specifically, the experiment-validated regulations are tagged with the label ‘high confidence’, the predictions made by only one algorithm/method are tagged with ‘low confidence’, and the rest are tagged with ‘medium confidence’.

Database implementation and web user interface design

We have developed a web tool of RegNetwork for users to query and download the regulatory relationships and networks. RegNetwork is implemented in Java, JavaScript and Python together with the PostgreSQL database. All raw data ETL (Extract, Transfer and Load) are carried out with Python scripts on the back end. The frontend interface is developed using JSP and JavaScript.

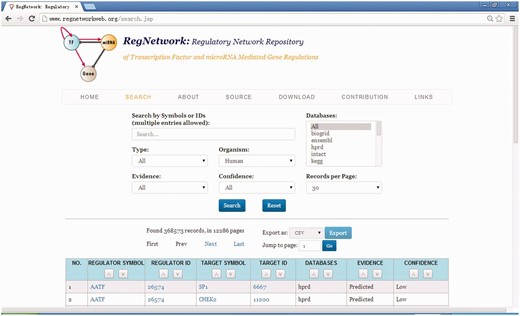

Figure 4 shows the web user interface of RegNetwork. The regulatory relationship can be searched by various types of components (i.e. by TF, miRNA or gene in the regulatory networks), by databases and/or by species (human or mouse). The interface also provides users the option to query transcriptional only, post-transcriptional only or both relationships to further refine the search. It also allows users, while querying RegNetwork, to specify and constraint the original databases where the regulatory relationships are derived from. The query results can be exported as a CSV file. The users can employ some tools such as Sig2BioPax ( 43 ) to convert the regulations into the BioPAX Level 3 format ( 44 ). Also, the full datasets are made available for users to download for further analyses.

The web user interface of RegNetwork.
Figure 4.

The web user interface of RegNetwork.

Results and discussion

Regulatory networks in human and mouse

By integrating the experimental, inferred or predicted regulatory interactions among TFs, miRNAs and genes from a variety of sources, we developed a database named RegNetwork as a comprehensive repository for genome-wide regulatory networks in human and mouse. RegNetwork contains both transcriptional and post- transcriptional regulatory relationships, and the interplays between TF/miRNA and their targets can then be easily retrieved from the database. In addition, the data source information for the regulatory relationships can also be retrieved from RegNetwork. As of June 2015, the basic statistics of the regulatory networks in RegNetwork are calculated and listed in Table 2 . Specifically, the human regulatory network contains 23 079 nodes and 369 277 edges, consisting of 1456 TFs, 1904 miRNAs and 19 719 target genes; and the mouse regulatory network contains 20 738 nodes and 323 636 edges, consisting of 1328 TFs, 1290 miRNAs and 18 120 target genes. For details of how to use expression data to identify subnetworks from the background network under specific conditions, the interested reader is referred to Liu et al. ( 9 ).

Table 2.

The basic statistics of the regulatory networks of human and mouse in RegNetwork

ElementDescription Number
HumanMouse
NodeAll nodes included in the regulatory network23 07920 738
EdgeAll regulatory relationships included in the regulatory network369 277323 636
TFThe documented TFs included in the regulatory network14561328
miRNAThe miRNAs included in the regulatory network19041290
GeneThe target genes included in the regulatory network19 71918 120
TF–geneThe ‘TF–gene’ regulations included in the regulatory network149 84194 876
TF–TFThe ‘TF’–‘TF gene’ self-regulations included the regulatory network361129
TF–miRNAThe ‘TF–miRNA gene’ regulations included in the regulatory network21 74425 574
miRNA–geneThe ‘miRNA–target gene’ regulations included in the regulatory network171 477176 512
miRNA–TFThe ‘miRNA–TF gene’ regulations included in the regulatory network25 85426 545
ElementDescription Number
HumanMouse
NodeAll nodes included in the regulatory network23 07920 738
EdgeAll regulatory relationships included in the regulatory network369 277323 636
TFThe documented TFs included in the regulatory network14561328
miRNAThe miRNAs included in the regulatory network19041290
GeneThe target genes included in the regulatory network19 71918 120
TF–geneThe ‘TF–gene’ regulations included in the regulatory network149 84194 876
TF–TFThe ‘TF’–‘TF gene’ self-regulations included the regulatory network361129
TF–miRNAThe ‘TF–miRNA gene’ regulations included in the regulatory network21 74425 574
miRNA–geneThe ‘miRNA–target gene’ regulations included in the regulatory network171 477176 512
miRNA–TFThe ‘miRNA–TF gene’ regulations included in the regulatory network25 85426 545
Table 2.

The basic statistics of the regulatory networks of human and mouse in RegNetwork

ElementDescription Number
HumanMouse
NodeAll nodes included in the regulatory network23 07920 738
EdgeAll regulatory relationships included in the regulatory network369 277323 636
TFThe documented TFs included in the regulatory network14561328
miRNAThe miRNAs included in the regulatory network19041290
GeneThe target genes included in the regulatory network19 71918 120
TF–geneThe ‘TF–gene’ regulations included in the regulatory network149 84194 876
TF–TFThe ‘TF’–‘TF gene’ self-regulations included the regulatory network361129
TF–miRNAThe ‘TF–miRNA gene’ regulations included in the regulatory network21 74425 574
miRNA–geneThe ‘miRNA–target gene’ regulations included in the regulatory network171 477176 512
miRNA–TFThe ‘miRNA–TF gene’ regulations included in the regulatory network25 85426 545
ElementDescription Number
HumanMouse
NodeAll nodes included in the regulatory network23 07920 738
EdgeAll regulatory relationships included in the regulatory network369 277323 636
TFThe documented TFs included in the regulatory network14561328
miRNAThe miRNAs included in the regulatory network19041290
GeneThe target genes included in the regulatory network19 71918 120
TF–geneThe ‘TF–gene’ regulations included in the regulatory network149 84194 876
TF–TFThe ‘TF’–‘TF gene’ self-regulations included the regulatory network361129
TF–miRNAThe ‘TF–miRNA gene’ regulations included in the regulatory network21 74425 574
miRNA–geneThe ‘miRNA–target gene’ regulations included in the regulatory network171 477176 512
miRNA–TFThe ‘miRNA–TF gene’ regulations included in the regulatory network25 85426 545

Network analysis

Real biological networks such as gene regulatory networks and protein–protein interaction networks are different from random networks ( 45 ) in terms of certain network properties like characteristic path length and node degree distribution ( 40 , 46 ). Therefore, network feature analysis allows us to assess whether a network is random or not. Some network feature indices for the established regulatory network for human and mouse from RegNetwork are summarized in Table 3 . Particularly, the clustering coefficients of the established regulatory networks in human and mouse are 0.118 and 0.101, respectively, which are much higher than that of random networks of a comparable size (∼ 1.5×105 ) ( 45 ). Moreover, the characteristic path lengths of the regulatory networks in human and mouse are 3.200 and 3.229, respectively, which are comparatively small, and thus suggest a quick propagation of regulatory information in a non-random manner. All other network topological properties also suggest that the established regulatory networks for human and mouse are different from random networks ( 45 , 46 ).

Table 3.

Selected measures in the established regulatory networks for human and mouse

Parameter Value
HumanMouse
Clustering coefficient0.1180.101
Connected components31
Network diameter88
Shortest paths42 727 38236 743 196
Characteristic path length3.2003.229
Average number of neighbors31.39130.548
Parameter Value
HumanMouse
Clustering coefficient0.1180.101
Connected components31
Network diameter88
Shortest paths42 727 38236 743 196
Characteristic path length3.2003.229
Average number of neighbors31.39130.548

The definitions of these measures are the same as in Refs. ( 43 , 45 ).

Table 3.

Selected measures in the established regulatory networks for human and mouse

Parameter Value
HumanMouse
Clustering coefficient0.1180.101
Connected components31
Network diameter88
Shortest paths42 727 38236 743 196
Characteristic path length3.2003.229
Average number of neighbors31.39130.548
Parameter Value
HumanMouse
Clustering coefficient0.1180.101
Connected components31
Network diameter88
Shortest paths42 727 38236 743 196
Characteristic path length3.2003.229
Average number of neighbors31.39130.548

The definitions of these measures are the same as in Refs. ( 43 , 45 ).

Second, the node degrees of the established networks are calculated and found to satisfy the power law distributions as shown in Figure 5 . Fitting the power law model y=α·xγ , where y denotes the number of nodes and x denotes the node degree, we obtain γ^=2.179 for the human regulatory network and γ^=2.137 for the mouse regulatory network. Since 2γ^3 , our background networks are scale-free ( 45 , 46 ). The network parameters provide evidence that our integrated regulatory networks are different from randomly generated networks. Notice that we employ the definition of random network in ( 45 ). A formal and rigorous comparison between the large human/mouse networks derived from our RegNetwork and the corresponding random networks require the use of computing-intensive Monte Carlo approaches, which is beyond the score of this paper.

 The node degree distributions of the established regulatory networks in human ( A ) and mouse ( B ). A power law distribution in the form of y=α·x−γ is fitted in each subfigure, respectively. The results show that the node degrees satisfy the power-law distribution, i.e. y=α·x−γ=126697·x−2.179 , R2=0.845 in human, y=α·x−γ=99838·x−2.137 , R2=0.859 in mouse.

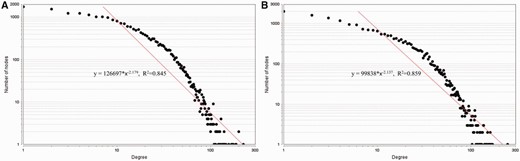

Figure 5.

The node degree distributions of the established regulatory networks in human ( A ) and mouse ( B ). A power law distribution in the form of y=α·xγ is fitted in each subfigure, respectively. The results show that the node degrees satisfy the power-law distribution, i.e. y=α·xγ=126697·x2.179 , R2=0.845 in human, y=α·xγ=99838·x2.137 , R2=0.859 in mouse.

Interplays among TF, miRNA and gene

Different from the existing regulatory relationship databases such as TRED ( 47 ), RegNetwork contains both the transcriptional and post-transcriptional regulatory interactions, which allows us to investigate more complex interplays between regulators (i.e. TF and miRNA) and their target genes. Figure 6 illustrates the collected interactions from a KEGG gene set involved in the T cell signaling pathway in human, where the post-transcriptional regulatory relationships are drawn as blue lines. Since network motif is an important local property and functional block of complex network, here we identify the three-node network motifs (‘TF-miRNA-gene’) in the established regulatory networks. Figure 6 clearly suggests the combinatorial control of gene expressions mediated by TFs and miRNAs simultaneously. For instance, visually we can identify several network motifs in Figure 6 , such as ‘FOS’-‘hsa-miR-569’-‘MAPK12’ and ‘JUN’-‘hsa-let-7a’-‘PAK1’, which are believed to be the major network building components and functional blocks in regulatory networks ( 48 ). By this simple example, we show that RegNetwork is a useful tool for querying the knowledge-based combinatorial regulatory relationships in both transcription and post-transcription. Actually, using the network motif detection algorithm, FANDOM ( 49 ), we can identify all the three-node motifs ‘TF-miRNA-gene’ in the human and mouse regulatory networks, respectively. Table 4 lists their occurrence frequencies and the statistical significance in the form of Z-scores. Ten types of ‘TF-miRNA-gene’ motifs are identified in the two networks. For each type of the motifs, the Z-score is calculated as the difference of its actual occurrence frequency and the average of its occurrence frequencies in 100 random networks of the same node-size, normalized by the standard deviation of these random occurrence frequencies, and the motifs with a Z-score higher than 2 are regarded as significantly enriched according to FANDOM ( 49 ). As shown in Table 4 , ‘M1’, ‘M2’, ‘M3’, ‘M5’ and ‘M7’ are enriched in both human and mouse regulatory networks; ‘M10’ are enriched in one of them, and motifs ‘M4’, ‘M6’, ‘M8’ and ‘M9’ are not enriched in either of them. The enrichment of different types of motifs suggests a major topological and statistical change in the local network structures, which is of significant scientific interest and a promising research approach for understanding context-specific (e.g. certain disease) regulatory machineries ( 31 ).

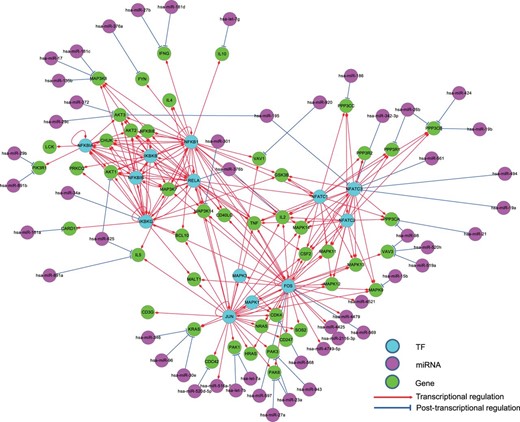

The regulatory relationships of a KEGG gene set for the human T cell receptor signaling pathway in RegNetwork. TF, miRNA and gene are in different colors and the transcriptional and post-transcriptional interplays are shown in red and blue, respectively.
Figure 6.

The regulatory relationships of a KEGG gene set for the human T cell receptor signaling pathway in RegNetwork. TF, miRNA and gene are in different colors and the transcriptional and post-transcriptional interplays are shown in red and blue, respectively.

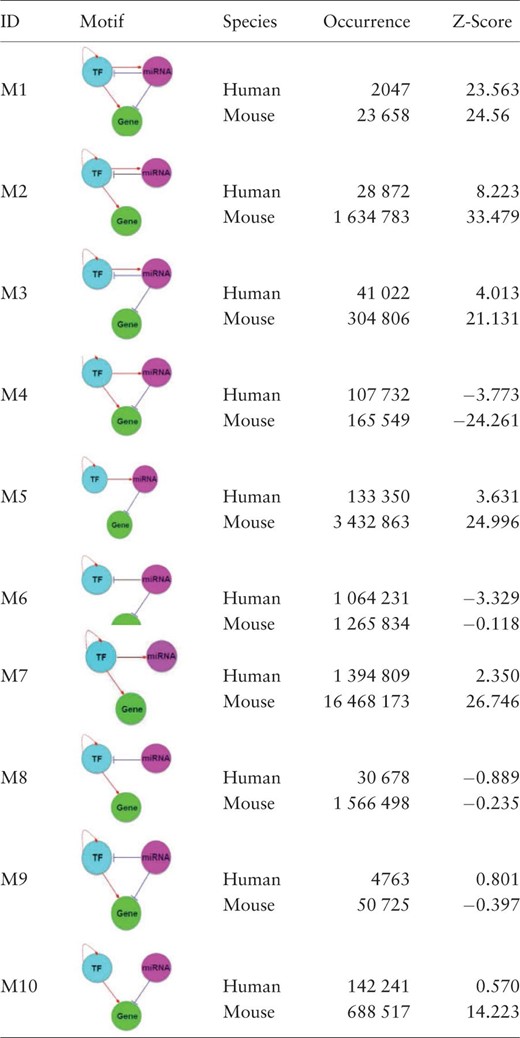

Table 4.

The three-node network motifs ‘TF–miRNA–gene’ in human and mouse regulatory networks

graphic
graphic

The motifs are ranked by the absolute Z-Scores of network motifs in human. The higher the Z-Score, the more enriched is a motif (threshold is 2 as suggested in FANDOM ( 47 )).

Table 4.

The three-node network motifs ‘TF–miRNA–gene’ in human and mouse regulatory networks

graphic
graphic

The motifs are ranked by the absolute Z-Scores of network motifs in human. The higher the Z-Score, the more enriched is a motif (threshold is 2 as suggested in FANDOM ( 47 )).

Conclusion

In this article, we developed a database, RegNetwork, of the knowledge-based genome-wide regulatory networks in human and mouse by integrating various data sources. A comprehensive set of interplays among TFs, miRNAs and target genes were collected and reorganized for public access. The established regulatory networks from RegNetwork provide genome-wide regulatory interactions, which lay an initial foundation and establish a prior background network to identify or verify molecular and functional regulations in pathways or subnetworks corresponding to different phenotypes. Also, combined with high-throughput expression data under specific physiological and developmental conditions (e.g. viral infection), one can identify differential subnetworks and pathways from the background networks in RegNetwork, which will lead to novel and interesting insights into regulatory mechanisms in context-specific processes.

At the time when the current version of RegNetwork was developed, the ENCODE project published thousands of regulatory interactions in human inferred from high-throughput datasets ( 50 ), which contains 162 100 regulatory relationships among 119 TFs, 736 miRNAs and 15 131 genes. Most of the TFs, miRNAs and genes in ENCODE (96.5% of the regulators and 89.9% of the targets) are already included in our database. We will continue to track and regularly integrate the ENCODE regulatory relationships into our database. We also recognize the usefulness of text mining tools to identify and curate the regulatory relationships from literature, which is another direction to extend the RegNetwork. We also plan to extend the RegNetwork to include additional information such as the experimental conditions and original references for each of the regulatory relationships that are derived from. We will also extend the RegNetwork to include other organisms, such as Rattus norvegicus (rat), Drosophila melanogaster (fruit fly), Caenorhabditis elegans (worm), Escherichia coli ( E. coli ) and Saccharomyces cerevisiae (yeast).

Funding

National Natural Science Foundation of China (NSFC) (Grant Nos. 61572287 and 61533011 to Z.P.L.); the Shandong Provincial Natural Science Foundation of China (Grant No. ZR2015FQ001 to Z.P.L.); the Fundamental Research Funds of Shandong University (Grant No. 2014TB006 to Z.P.L); the Scientific Research Foundation for the Returned Overseas Chinese Scholars, Ministry of Education of China (to Z.P.L.); University of Rochester Center for Biodefense Immune Modeling Grant (NIH/NIAID) (HHSN272201000055C to H.W.); University of Rochester Center for AIDS Research Grant (NIH/NIAID) (P30AI078498 to H.W); NIH Grant (R01GM100788 to H.M.). Funding for open access charge: Dr. Hulin Wu's start-up fund.

Conflict of interest . None declared.

References

1

Chen
K.
Rajewsky
N.
(
2007
)
The evolution of gene regulation by transcription factors and microRNAs
.
Nat. Rev. Genet.
,
8
,
93
103
.

2

Liu
Z.P.
(
2015
)
Reverse engineering of genome-wide gene regulatory networks from gene expression data
.
Curr. Genomics
,
16
,
3
22
.

3

Park
P.J.
(
2009
)
ChIP-seq: advantages and challenges of a maturing technology
.
Nat. Rev. Genet.
,
10
,
669
680
.

4

Wang
Z.
Gerstein
M.
Snyder
M.
(
2009
)
RNA-Seq: a revolutionary tool for transcriptomics
.
Nat. Rev. Genet.
,
10
,
57
63
.

5

Yeung
M.K.
Tegner
J.
Collins
J.J.
(
2002
)
Reverse engineering gene networks using singular value decomposition and robust regression
.
Proc. Natl. Acad. Sci. USA
,
99
,
6163
6168
.

6

Marbach
D.
Prill
R.J.
Schaffter
T.
et al.  . (
2010
)
Revealing strengths and weaknesses of methods for gene network inference
.
Proc. Natl. Acad. Sci. USA
,
107
,
6286
6291
.

7

Ideker
T.
Dutkowski
J.
Hood
L.
(
2011
)
Boosting signal-to-noise in complex biology: prior knowledge is power
.
Cell
,
144
,
860
863
.

8

Steele
E.
Tucker
A.
t Hoen
P.A.
et al.  . (
2009
)
Literature-based priors for gene regulatory networks
.
Bioinformatics
,
25
,
1768
1774
.

9

Liu
Z.P.
Wu
H.
Zhu
J.
et al.  . (
2014
)
Systematic identification of transcriptional and post-transcriptional regulations in human respiratory epithelial cells during influenza A virus infection
.
BMC Bioinformatics
,
15
,
336
.

10

Liu
Z.P.
Zhang
W.
Horimoto
K.
et al.  . (
2013
)
Gaussian graphical model for identifying significantly responsive regulatory networks from time course high-throughput data
.
IET Syst. Biol.
,
7
,
143
152
.

11

Greenfield
A.
Hafemeister
C.
Bonneau
R.
(
2013
)
Robust data-driven incorporation of prior knowledge into the inference of dynamic regulatory networks
.
Bioinformatics
,
29
,
1060
1067
.

12

Liu
Z.P.
Wang
Y.
Zhang
X.S.
et al.  . (
2011
)
Detecting and analyzing differentially activated pathways in brain regions of Alzheimer's disease patients
.
Mol. Biosyst.
,
7
,
1441
1452
.

13

Huerta
A.M.
Salgado
H.
Thieffry
D.
et al.  . (
1998
)
RegulonDB: a database on transcriptional regulation in Escherichia coli
.
Nucleic Acids Res.
,
26
,
55
59
.

14

Zhao
F.
Xuan
Z.
Liu
L.
et al.  . (
2005
)
TRED: a Transcriptional Regulatory Element Database and a platform for in silico gene regulation studies
.
Nucleic Acids Res.
,
33
,
D103
D107
.

15

Kanehisa
M.
Goto
S.
(
2000
)
KEGG: kyoto encyclopedia of genes and genomes
.
Nucleic Acids Res.
,
28
,
27
30
.

16

Matys
V.
Kel-Margoulis
O.V.
Fricke
E.
et al.  . (
2006
)
TRANSFAC and its module TRANSCompel: transcriptional gene regulation in eukaryotes
.
Nucleic Acids Res.
,
34
,
D108
D110
.

17

Bryne
J.C.
Valen
E.
Tang
M.H.
et al.  . (
2008
)
JASPAR, the open access database of transcription factor-binding profiles: new content and tools in the 2008 update
.
Nucleic Acids Res.
,
36
,
D102
D106
.

18

Bartel
D.P.
(
2004
)
MicroRNAs: genomics, biogenesis, mechanism, and function
.
Cell
,
116
,
281
297
.

19

He
L.
Hannon
G.J.
(
2004
)
MicroRNAs: small RNAs with a big role in gene regulation
.
Nat. Rev. Genet.
,
5
,
522
531
.

20

Marson
A.
Levine
S.S.
Cole
M.F.
et al.  . (
2008
)
Connecting microRNA genes to the core transcriptional regulatory circuitry of embryonic stem cells
.
Cell
,
134
,
521
533
.

21

Chatr-Aryamontri
A.
Breitkreutz
B.J.
Heinicke
S.
et al.  . (
2013
)
The BioGRID interaction database: 2013 update
.
Nucleic Acids Res.
,
41
,
D816
D823
.

22

Flicek
P.
Amode
M.R.
Barrell
D.
et al.  . (
2012
)
Ensembl 2012
.
Nucleic Acids Res.
,
40
,
D84
D90
.

23

Ravasi
T.
Suzuki
H.
Cannistraci
C.V.
et al.  . (
2010
)
An atlas of combinatorial transcriptional regulation in mouse and man
.
Cell
,
140
,
744
752
.

24

Benson
D.A.
Karsch-Mizrachi
I.
Clark
K.
et al.  . (
2012
)
GenBank
.
Nucleic Acids Res.
,
40
,
D48
D53
.

25

Mishra
G.R.
Suresh
M.
Kumaran
K.
et al.  . (
2006
)
Human protein reference database-2006 update
.
Nucleic Acids Res.
,
34
,
D411
D414
.

26

Kerrien
S.
Aranda
B.
Breuza
L.
et al.  . (
2012
)
The IntAct molecular interaction database in 2012
.
Nucleic Acids Res.
,
40
,
D841
D846
.

27

Fujita
P.A.
Rhead
B.
Zweig
A.S.
et al.  . (
2011
)
The UCSC Genome Browser database: update 2011
.
Nucleic Acids Res.
,
39
,
D876
D882
.

28

Griffiths-Jones
S.
Saini
H.K.
van Dongen
S.
et al.  . (
2008
)
miRBase: tools for microRNA genomics
.
Nucleic Acids Res.
,
36
,
D154
D158
.

29

Maragkakis
M.
Reczko
M.
Simossis
V.A.
et al.  . (
2009
)
DIANA-microT web server: elucidating microRNA functions through target prediction
.
Nucleic Acids Res.
,
37
,
W273
W276
.

30

Betel
D.
Wilson
M.
Gabow
A.
et al.  . (
2008
)
The microRNA.org resource: targets and expression
.
Nucleic Acids Res.
,
36
,
D149
D153
.

31

Ideker
T.
Krogan
N.J.
(
2012
)
Differential network biology
.
Mol. Syst. Biol.
,
8
.

32

Xiao
F.
Zuo
Z.
Cai
G.
et al.  . (
2009
)
miRecords: an integrated resource for microRNA-target interactions
.
Nucleic Acids Res.
,
37
,
D105
D110
.

33

Hsu
S.D.
Lin
F.M.
Wu
W.Y.
et al.  . (
2011
)
miRTarBase: a database curates experimentally validated microRNA-target interactions
.
Nucleic Acids Res.
,
39
,
D163
D169
.

34

Krek
A.
Grun
D.
Poy
M.N.
et al.  . (
2005
)
Combinatorial microRNA target predictions
.
Nat. Genet.
,
37
,
495
500
.

35

Pruitt
K.D.
Tatusova
T.
Maglott
D.R.
(
2005
)
NCBI Reference Sequence (RefSeq): a curated non-redundant sequence database of genomes, transcripts and proteins
.
Nucleic Acids Res.
,
33
,
D501
D504
.

36

Franceschini
A.
Szklarczyk
D.
Frankild
S.
et al.  . (
2013
)
STRING v9.1: protein-protein interaction networks, with increased coverage and integration
.
Nucleic Acids Res.
,
41
,
D808
D815
.

37

Sethupathy
P.
Corda
B.
Hatzigeorgiou
A.G.
(
2006
)
TarBase: A comprehensive database of experimentally supported animal microRNA targets
.
RNA
,
12
,
192
197
.

38

Lewis
B.P.
Shih
I.H.
Jones-Rhoades
M.W.
et al.  . (
2003
)
Prediction of mammalian microRNA targets
.
Cell
,
115
,
787
798
.

39

Wang
J.
Lu
M.
Qiu
C.
et al.  . (
2010
)
TransmiR: a transcription factor-microRNA regulation database
.
Nucleic Acids Res.
,
38
,
D119
D122
.

40

Albert
R.
(
2005
)
Scale-free networks in cell biology
.
J. Cell Sci.
,
118
,
4947
4957
.

41

UniProt
C.
(
2011
)
Ongoing and future developments at the Universal Protein Resource
.
Nucleic Acids Res.
,
39
,
D214
D219
.

42

Korhonen
J.
Martinmaki
P.
Pizzi
C.
et al.  . (
2009
)
MOODS: fast search for position weight matrix matches in DNA sequences
.
Bioinformatics
,
25
,
3181
3182
.

43

Webb
R.L.
Ma'ayan
A.
(
2011
)
Sig2BioPAX: Java tool for converting flat files to BioPAX Level 3 format
.
Source Code Biol. Med.
,
6
,
5
.

44

Demir
E.
Cary
M.P.
Paley
S.
et al.  . (
2010
)
The BioPAX community standard for pathway data sharing
.
Nat. Biotechnol.
,
28
,
935
942
.

45

Barabasi
A.L.
Albert
R.
(
1999
)
Emergence of scaling in random networks
.
Science
,
286
,
509
512
.

46

Newman
M.E.J.
(
2003
)
The structure and function of complex networks
.
SIAM Rev.
,
45
,
167
256
.

47

Jiang
C.
Xuan
Z.
Zhao
F.
et al.  . (
2007
)
TRED: a transcriptional regulatory element database, new entries and other development
.
Nucleic Acids Res.
,
35
,
D137
D140
.

48

Shen-Orr
S.S.
Milo
R.
Mangan
S.
et al.  . (
2002
)
Network motifs in the transcriptional regulation network of Escherichia coli
.
Nat. Genet.
,
31
,
64
68
.

49

Wernicke
S.
Rasche
F.
(
2006
)
FANMOD: a tool for fast network motif detection
.
Bioinformatics
,
22
(
9
),
1152
1153
.

50

Gerstein
M.B.
Kundaje
A.
Hariharan
M.
et al.  . (
2012
)
Architecture of the human regulatory network derived from ENCODE data
.
Nature
,
489
,
91
100
.

Author notes

Citation details: Liu,Z.-P., Wu,C., Miao,H. et al. RegNetwork: an integrated database of transcriptional and post-transcriptional regulatory networks in human and mouse. Database (2015) Vol. 2015: article ID bav095; doi:10.1093/database/bav095

This is an Open Access article distributed under the terms of the Creative Commons Attribution License ( http://creativecommons.org/licenses/by/4.0/ ), which permits unrestricted reuse, distribution, and reproduction in any medium, provided the original work is properly cited.
