Abstract

We introduce SilkBase as an integrated database for transcriptomic and genomic resources of the domesticated silkworm Bombyx mori and related species. SilkBase is the oldest B. mori database that was originally established as the expressed sequence tag database since 1999. Here, we upgraded the database by including the datasets of the newly assembled B. mori complete genome sequence, predicted gene models, bacterial artificial chromosome (BAC)-end and fosmid-end sequences, complementary DNA (cDNA) reads from 69 libraries, RNA-seq data from 10 libraries, PIWI-interacting RNAs (piRNAs) from 13 libraries, ChIP-seq data of 9 histone modifications and HP1 proteins and transcriptome and/or genome data of four B. mori-related species, i.e. Bombyx mandarina, Trilocha varians, Ernolatia moorei and Samia ricini. Our new integrated genome browser easily provides a snapshot of tissue- and stage-specific gene expression, alternative splicing, production of piRNAs and histone modifications at the gene locus of interest. Moreover, SilkBase is useful for performing comparative studies among five closely related lepidopteran insects.

Database URL: https://silkbase.ab.a.u-tokyo.ac.jp

Introduction

The silkworm Bombyx mori is the only fully domesticated insect that has been used for silk production for >5000 years (1). In addition to its industrial applications, B. mori is a model insect in genetics, molecular biology, physiology and pathology. For instance, Kametaro Toyama reported the Mendelian inheritance of the cocoon color of B. mori (2), which was the discovery that Mendelian laws are verified in animals. Currently, B. mori is used for producing a large amount of a single protein via genetic engineering (3) or baculovirus vectors (4).

The draft genomes of B. mori were independently constructed and reported by Chinese and Japanese groups in 2004 (5, 6), which were merged and assembled with newly obtained fosmid- and BAC-end sequences to form a 432-Mb-long new genome in 2008 (7). However, this genome assembly (ver. 2008) still contains various gaps primarily due to a huge number of repetitive sequences within the genome. To solve this problem, our group performed re-sequencing of B. mori genome by PacBio and Illumina sequencing platforms and obtained a new genome in 2016 with a total length of 460.3 Mb (8). The new genome assembly (ver. 2016) and newly predicted gene models (ver. 2017) were stored and made available in SilkBase.

SilkBase was developed in 1999 as the B. mori expressed sequence tag (EST) database. The first version of SilkBase contained about 35 000 ESTs from 36 complementary DNA (cDNA) libraries (9). Subsequently, several B. mori databases have been released, for instance, SilkDB (https://silkdb.bioinfotoolkits.net) (10), KAIKObase (https://kaikobase.dna.affrc.go.jp) (11), Silkworm Base (https://shigen.nig.ac.jp/silkwormbase/top.jsp), SilkPathDB (https://silkpathdb.swu.edu.cn) (12) and SGID (http://sgid.popgenetics.net) (13). Some of them contained our genome assembly (ver. 2016) and gene models (ver. 2017) (11, 13), whereas SilkDB has been updated by replacing the genome assembly and gene models (ver. 2008) (7) with other ones (10). The SilkDB includes genome datasets that were made from our group’s PacBio sequence reads (8), transcriptome, Hi-C and the genome data from 163 different geographically representative strains (10). The KAIKObase is the B. mori’s genome database that includes the genome assembly and gene models (ver. 2017), genetic maps and lists of manually curated gene families for pesticide targets and silk proteins (11). The SGID is a comprehensive and interactive database containing the genome assembly (ver. 2016) and gene models (ver. 2017). The genome browser in the SGID provides domestication levels at each gene locus by comparing sequences of B. mori and its putative ancestor Bombyx mandarina (13). In addition to these B. mori databases, several lepidopteran genome databases, such as the lepidoDB (https://bipaa.genouest.org/is/lepidodb/), lepbase (http://lepbase.org) (14), KONAGAbase (http://dbm.dna.affrc.go.jp/px/) (15) and MonarchBase (http://monarchbase.umassmed.edu) (16) are currently available.

As described above, SilkBase was originally established as the EST database. This EST database has been updated several times as an integrated database for B. mori transcriptome and genome resources and stably maintained availability for ‘23 years’. In this paper, we introduce the status of SilkBase that provides researchers quick and reliable outputs from accurate datasets using useful and comfortable in-built tools and browsers.

Materials and methods

Construction of sequence data

The de novo assembly of RNA-seq reads was performed using Trinity (17). The open reading frames (ORFs) of the RNA-seq assemblies were predicted using TransDecoder, which is the plugin of Trinity (17). Hypothetical genomes were constructed by substituting different nucleotides from the genome assembly (ver. 2016) using BWA (18), SAMtools (19) and GATK (20). Furthermore, genome sequences of B. mandarina (Sakado strain) were obtained using Illumina HiSeq 2500 and were then assembled using Platanus (21) with fosmid-end sequences.

Data annotation

The gene models (ver. 2017) were annotated using InterProScan (22) and blastp search against NCBI’s non-redundant (nr) protein data sets. The transcript levels [transcripts per million (TPM)] of each gene model (ver. 2017) in RNA-seq libraries were estimated using Bowtie 2 (23) and original R scripts. Gene ontology (GO) terms of each RNA-seq assembly were determined using ncbi-blastp against UniProtKB/Swiss-Prot. The transcript levels (TPM and fragments per kilobase of exon per million mapped fragments) of the RNA-seq assemblies were estimated using RSEM (24).

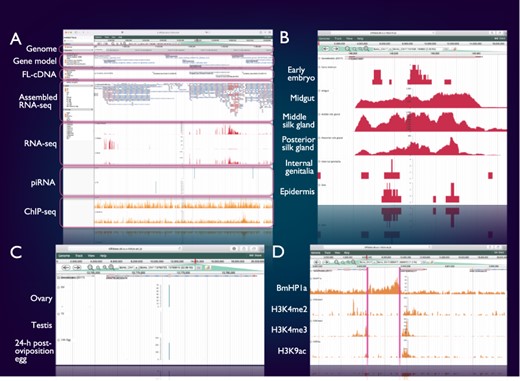

Data construction for the genome browser

The 2016 version of the genome assembly was used as the genome for the following data construction. Sequences of RNA-seq assemblies, cDNA reads, gene models (ver. 2008) and gene set A (25) made in 2013 were mapped to the genome using GMAP (26). The location of genes on chromosomes was determined in the process of gene prediction (8) and was then used for mapping gene models (ver. 2017) to the genome browser. Next, RNA-seq reads were mapped to the genome using HISAT2 (27). In addition, PIWI-interacting RNA (piRNA)- and ChIP-seq reads were mapped to the genome using Bowtie (28) with no mismatch and multimap. ChIP-seq peak calling was performed using epic2 (29).

Web interface and server construction

The Web interface was written in HTML, CGI, JavaScript and Perl. MySQL was used for the database management, and JBrowse (30) was used for the genome browser.

Data source

Bombyx mori

BAC clones derived from BAC-end sequences, BAC-derived assemblies (31) and W chromosome-derived BAC sequences (32). Hypothetically reconstructed genome and raw read of B. mori 18 strains derived from C108T, N4, b20, c10, c51, d18, e10, f35, g53, k25, n16, o55, o56, p20, p21, p22, p44 and u48. RNA-seq libraries designated as anterior silk gland, brain, early embryo, epidermis, fat body, internal genitalia, midgut and middle silk gland of B. mori p50T strain (8), early embryo of B. mori N4 strain and epidermis of B. mori otm mutant strain (33). cDNA-end reads derived from cDNA libraries and designated as an--, bmmt, BmN, bmnc, bmov, bmte, br--, brP-, brS-, caL-, ce--, ceN-, cesb, e40 h, e96 h, epV3, F1mg, famL, fbpv, fbS2, fbVf, fbVm, fcaL, fcP8, fdpe, fe100, fe8d, fepM, ffbm, FJsb, fmgV, fmxg, fner, fphe, fprw, ftes, fufe, FWD, fwgP, heS0, heS3, J150, JFsb, maV3, MFB, mg--, msgV, N--, Nnor, NRPG, NV02, NV06, NV12, ovS0, ovS3, P5PG, pg--, prgv, ps4M, psV3, tesS, tesV, vg4M, wdS0, wdS2, wdS3, wdV1, wdV3 and wdV4 (9). piRNA libraries designated as OV, TE, MW, WF, LY, Siwi, BmAgo3, GFP#8, 0h Egg, 6h Egg, 12h Egg, 24h Egg and 40h Diapaused Egg (32, 34–36). ChIP-seq reads designated as Input, pIZ, BmHP1a, Cdp1, IgG-R, H3K4me1, H3K4me2, H3K4me3, H3K9ac, H3K9me2, H3K9me3, H3K27ac, H3K27me3, H3K36me3, IgG-M and Pol2 (37–39). All information about the data source can be obtained from the library information page of the B. mori on SilkBase.

Bombyx mandarina

Hypothetically reconstructed genome and raw read of B. mandarina two strains derived from Sakado and Oki strains. RNA-seq libraries designated as B. mandarina anterior silk gland, midgut and middle silk gland. All information about the data source can be obtained from the library information page of the B. mandarina on SilkBase.

Trilocha varians

RNA-seq libraries derived from Trilocha varians (40) antennae (female), antennae (male) and midgut. All information about the data source can be obtained from the library information page of the T. varians on SilkBase.

Ernolatia moorei

RNA-seq library derived from Ernolatia moorei (40) midgut. This information can be obtained from the library information page of the E. moorei on SilkBase.

Samia ricini

RNA-seq libraries derived from Samia ricini anterior silk gland, midgut and middle silk gland. cDNA ends derived from S. ricini fat body and embryo (41). All information about the data source can be obtained from the library information page of the S. ricini on SilkBase.

Results

Data content

To avoid ‘Garbage In, Garbage Out’, unreliable data in public databases were not installed in SilkBase. Our group or collaborators obtained most data used in our database, particularly next-generation sequencing data. Some of these data have been published in peer-reviewed scientific journals (Table 1).

Table 1.

A summary of the datasets installed in SilkBase

CategoryLibraryDescriptionReferences
Bombyx mori
GenomeChromosome-level genome assembly28 chromosomes and 668 scaffolds(8)
Fosmid library274 342 fosmid clonesb
BAC libraries137 753 BAC clones from three libraries(31, 32)
Hypothetically reconstructed genome782 316 in total from 18 strainsb
Re-sequenced genome DNA libraries1 672 128  940 reads from 18 strainsb
Old scaffold library (2008)43 462 scaffolds(7)
GeneGene model16 880 genes(8)
Transcript level, protein family membership, domains and repeats, detail signature matches, residue annotation, GO term prediction and description against nr
Gene model (2008)14 623 genes(7)
Position on genome, GO term prediction, Uniref and Orthologs
Geneset A16 823 genes(25)
Position on genome
TranscriptomeAssembled RNA-seq libraries1 062 486 in total from 10 tissues/stagea(8)
Position on genome, GO term prediction, description against nr and transcript level
ORF from assembled RNA-seq libraries529 531 in total from 10 tissues/stagea(8)
Position on genome, GO term prediction and description against nr
RNA-seq librariesReads from 10 tissues/stage(8, 33)
The complete sequences of the FL-cDNA clone libraries11 833 clones(25)
Position on genome
cDNA libraries461 119 in total from 69 libraries(9) and unpublished
Position on genome, GO term prediction, Uniref and Orthologs
SAGE libraries82 227 clones(42)
MPSS libraries44 872 clonesa
piRNA libraries83 984 212 reads in total from 13 libraries(32, 34–36)
Transposon libraries121 of well-annotated transposons and 1690 of transposons(43)
EpigenomeChIP-seq libraries526 234 147 reads from 16 libraries(37–39)
Peak calling
Bombyx mandarina
GenomeScaffold-level genome assembly66 797 scaffoldsb
Fosmid libraries153 216 clonesa
Hypothetically reconstructed genome86 924 in total from two strainsb
Re-sequenced genome DNA libraries185 322 718 reads from two strainsb
TranscriptomeAssembled RNA-seq libraries141 139 in total from three tissuesa
GO term prediction, description against nr and transcript level
ORF from assembled RNA-seq libraries73 790 in total from three tissuesa
GO term prediction, Description against nr
Trilocha varians
TranscriptomeAssembled RNA-seq libraries106 248 in total from three tissuesa
GO term prediction, description against nr and transcript level
ORF from assembled RNA-seq libraries41 707 in total from three tissuesa
GO term prediction and description against nr
Ernolatia moorei
TranscriptomeAssembled RNA-seq libraries38 954 assemblya
GO term prediction, description against nr and transcript level
ORF from assembled RNA-seq libraries15 068 ORFsa
GO term prediction and description against nr
Samia ricini
GenomeScaffold-level genome assembly155 scaffolds(44)
TranscriptomeAssembled RNA-seq libraries171 159 in total from three tissuesa
GO term prediction, description against nr and transcript level
ORF from assembled RNA-seq libraries78 839 in total from three tissuesa
GO term prediction and description against nr
cDNA20 320 clones from two libraries(41)
GO term prediction, Uniref and Orthologs
CategoryLibraryDescriptionReferences
Bombyx mori
GenomeChromosome-level genome assembly28 chromosomes and 668 scaffolds(8)
Fosmid library274 342 fosmid clonesb
BAC libraries137 753 BAC clones from three libraries(31, 32)
Hypothetically reconstructed genome782 316 in total from 18 strainsb
Re-sequenced genome DNA libraries1 672 128  940 reads from 18 strainsb
Old scaffold library (2008)43 462 scaffolds(7)
GeneGene model16 880 genes(8)
Transcript level, protein family membership, domains and repeats, detail signature matches, residue annotation, GO term prediction and description against nr
Gene model (2008)14 623 genes(7)
Position on genome, GO term prediction, Uniref and Orthologs
Geneset A16 823 genes(25)
Position on genome
TranscriptomeAssembled RNA-seq libraries1 062 486 in total from 10 tissues/stagea(8)
Position on genome, GO term prediction, description against nr and transcript level
ORF from assembled RNA-seq libraries529 531 in total from 10 tissues/stagea(8)
Position on genome, GO term prediction and description against nr
RNA-seq librariesReads from 10 tissues/stage(8, 33)
The complete sequences of the FL-cDNA clone libraries11 833 clones(25)
Position on genome
cDNA libraries461 119 in total from 69 libraries(9) and unpublished
Position on genome, GO term prediction, Uniref and Orthologs
SAGE libraries82 227 clones(42)
MPSS libraries44 872 clonesa
piRNA libraries83 984 212 reads in total from 13 libraries(32, 34–36)
Transposon libraries121 of well-annotated transposons and 1690 of transposons(43)
EpigenomeChIP-seq libraries526 234 147 reads from 16 libraries(37–39)
Peak calling
Bombyx mandarina
GenomeScaffold-level genome assembly66 797 scaffoldsb
Fosmid libraries153 216 clonesa
Hypothetically reconstructed genome86 924 in total from two strainsb
Re-sequenced genome DNA libraries185 322 718 reads from two strainsb
TranscriptomeAssembled RNA-seq libraries141 139 in total from three tissuesa
GO term prediction, description against nr and transcript level
ORF from assembled RNA-seq libraries73 790 in total from three tissuesa
GO term prediction, Description against nr
Trilocha varians
TranscriptomeAssembled RNA-seq libraries106 248 in total from three tissuesa
GO term prediction, description against nr and transcript level
ORF from assembled RNA-seq libraries41 707 in total from three tissuesa
GO term prediction and description against nr
Ernolatia moorei
TranscriptomeAssembled RNA-seq libraries38 954 assemblya
GO term prediction, description against nr and transcript level
ORF from assembled RNA-seq libraries15 068 ORFsa
GO term prediction and description against nr
Samia ricini
GenomeScaffold-level genome assembly155 scaffolds(44)
TranscriptomeAssembled RNA-seq libraries171 159 in total from three tissuesa
GO term prediction, description against nr and transcript level
ORF from assembled RNA-seq libraries78 839 in total from three tissuesa
GO term prediction and description against nr
cDNA20 320 clones from two libraries(41)
GO term prediction, Uniref and Orthologs
a

This database.

b

This database (Sequenced by National Bio Resource Project).

Open in new tab
Table 1.

A summary of the datasets installed in SilkBase

CategoryLibraryDescriptionReferences
Bombyx mori
GenomeChromosome-level genome assembly28 chromosomes and 668 scaffolds(8)
Fosmid library274 342 fosmid clonesb
BAC libraries137 753 BAC clones from three libraries(31, 32)
Hypothetically reconstructed genome782 316 in total from 18 strainsb
Re-sequenced genome DNA libraries1 672 128  940 reads from 18 strainsb
Old scaffold library (2008)43 462 scaffolds(7)
GeneGene model16 880 genes(8)
Transcript level, protein family membership, domains and repeats, detail signature matches, residue annotation, GO term prediction and description against nr
Gene model (2008)14 623 genes(7)
Position on genome, GO term prediction, Uniref and Orthologs
Geneset A16 823 genes(25)
Position on genome
TranscriptomeAssembled RNA-seq libraries1 062 486 in total from 10 tissues/stagea(8)
Position on genome, GO term prediction, description against nr and transcript level
ORF from assembled RNA-seq libraries529 531 in total from 10 tissues/stagea(8)
Position on genome, GO term prediction and description against nr
RNA-seq librariesReads from 10 tissues/stage(8, 33)
The complete sequences of the FL-cDNA clone libraries11 833 clones(25)
Position on genome
cDNA libraries461 119 in total from 69 libraries(9) and unpublished
Position on genome, GO term prediction, Uniref and Orthologs
SAGE libraries82 227 clones(42)
MPSS libraries44 872 clonesa
piRNA libraries83 984 212 reads in total from 13 libraries(32, 34–36)
Transposon libraries121 of well-annotated transposons and 1690 of transposons(43)
EpigenomeChIP-seq libraries526 234 147 reads from 16 libraries(37–39)
Peak calling
Bombyx mandarina
GenomeScaffold-level genome assembly66 797 scaffoldsb
Fosmid libraries153 216 clonesa
Hypothetically reconstructed genome86 924 in total from two strainsb
Re-sequenced genome DNA libraries185 322 718 reads from two strainsb
TranscriptomeAssembled RNA-seq libraries141 139 in total from three tissuesa
GO term prediction, description against nr and transcript level
ORF from assembled RNA-seq libraries73 790 in total from three tissuesa
GO term prediction, Description against nr
Trilocha varians
TranscriptomeAssembled RNA-seq libraries106 248 in total from three tissuesa
GO term prediction, description against nr and transcript level
ORF from assembled RNA-seq libraries41 707 in total from three tissuesa
GO term prediction and description against nr
Ernolatia moorei
TranscriptomeAssembled RNA-seq libraries38 954 assemblya
GO term prediction, description against nr and transcript level
ORF from assembled RNA-seq libraries15 068 ORFsa
GO term prediction and description against nr
Samia ricini
GenomeScaffold-level genome assembly155 scaffolds(44)
TranscriptomeAssembled RNA-seq libraries171 159 in total from three tissuesa
GO term prediction, description against nr and transcript level
ORF from assembled RNA-seq libraries78 839 in total from three tissuesa
GO term prediction and description against nr
cDNA20 320 clones from two libraries(41)
GO term prediction, Uniref and Orthologs
CategoryLibraryDescriptionReferences
Bombyx mori
GenomeChromosome-level genome assembly28 chromosomes and 668 scaffolds(8)
Fosmid library274 342 fosmid clonesb
BAC libraries137 753 BAC clones from three libraries(31, 32)
Hypothetically reconstructed genome782 316 in total from 18 strainsb
Re-sequenced genome DNA libraries1 672 128  940 reads from 18 strainsb
Old scaffold library (2008)43 462 scaffolds(7)
GeneGene model16 880 genes(8)
Transcript level, protein family membership, domains and repeats, detail signature matches, residue annotation, GO term prediction and description against nr
Gene model (2008)14 623 genes(7)
Position on genome, GO term prediction, Uniref and Orthologs
Geneset A16 823 genes(25)
Position on genome
TranscriptomeAssembled RNA-seq libraries1 062 486 in total from 10 tissues/stagea(8)
Position on genome, GO term prediction, description against nr and transcript level
ORF from assembled RNA-seq libraries529 531 in total from 10 tissues/stagea(8)
Position on genome, GO term prediction and description against nr
RNA-seq librariesReads from 10 tissues/stage(8, 33)
The complete sequences of the FL-cDNA clone libraries11 833 clones(25)
Position on genome
cDNA libraries461 119 in total from 69 libraries(9) and unpublished
Position on genome, GO term prediction, Uniref and Orthologs
SAGE libraries82 227 clones(42)
MPSS libraries44 872 clonesa
piRNA libraries83 984 212 reads in total from 13 libraries(32, 34–36)
Transposon libraries121 of well-annotated transposons and 1690 of transposons(43)
EpigenomeChIP-seq libraries526 234 147 reads from 16 libraries(37–39)
Peak calling
Bombyx mandarina
GenomeScaffold-level genome assembly66 797 scaffoldsb
Fosmid libraries153 216 clonesa
Hypothetically reconstructed genome86 924 in total from two strainsb
Re-sequenced genome DNA libraries185 322 718 reads from two strainsb
TranscriptomeAssembled RNA-seq libraries141 139 in total from three tissuesa
GO term prediction, description against nr and transcript level
ORF from assembled RNA-seq libraries73 790 in total from three tissuesa
GO term prediction, Description against nr
Trilocha varians
TranscriptomeAssembled RNA-seq libraries106 248 in total from three tissuesa
GO term prediction, description against nr and transcript level
ORF from assembled RNA-seq libraries41 707 in total from three tissuesa
GO term prediction and description against nr
Ernolatia moorei
TranscriptomeAssembled RNA-seq libraries38 954 assemblya
GO term prediction, description against nr and transcript level
ORF from assembled RNA-seq libraries15 068 ORFsa
GO term prediction and description against nr
Samia ricini
GenomeScaffold-level genome assembly155 scaffolds(44)
TranscriptomeAssembled RNA-seq libraries171 159 in total from three tissuesa
GO term prediction, description against nr and transcript level
ORF from assembled RNA-seq libraries78 839 in total from three tissuesa
GO term prediction and description against nr
cDNA20 320 clones from two libraries(41)
GO term prediction, Uniref and Orthologs
a

This database.

b

This database (Sequenced by National Bio Resource Project).

Open in new tab

Bombyx mori

SilkBase contains B. mori genome assembly (ver. 2016), which was constructed by our group (8). In addition, it contains information about 274 342 fosmid clones, 137 753 BAC clones, hypothetically reconstructed genome and 1 672 128 940 raw reads (>QV30) of the genomes of 18 strains and 43 462 scaffolds of the genome assembly (ver. 2008) (7). Moreover, it comprises 16 880 gene models (ver. 2017) (8), 14 623 gene models (ver. 2008) (7) and 16 823 gene set A (26). The gene models (ver. 2017) were annotated with transcript levels, GO terms, blast results against nr and InterProScan results. Transcriptome data include 1 062 486 de novo assemblies of RNA-seq reads, 529 531 putative ORFs predicted from RNA-seq assemblies and RNA-seq raw reads. The RNA-seq de novo assemblies and predicted ORFs linked with genome loci, GO terms, blast results against nr and transcript levels. In addition, the following were installed: 11 833 complete sequences of the full-length cDNAs (26), 461 119 cDNA-end reads (9), 82 227 tags of serial analysis of gene expression (SAGE) (42), 44 872 signatures of massively parallel signature sequencing (MPSS) and 83 984 212 reads of piRNA libraries (32, 34–36) with 121 well-annotated and 1690 predicted transposons (piRNA precursors) (43). Epigenetic data include 526 234 147 reads of ChIP-seq (37–39). All information about these datasets can be obtained from the library information page of the B. mori on SilkBase.

Bombyx mandarina

SilkBase contains 66 797 genome scaffolds and 153 216 fosmid-end reads of Sakado strain of B. mandarina. It also contains a hypothetically reconstructed genome and 185 322 718 raw reads (>QV30) of the genome of two strains. A total of 141 139 de novo assemblies of RNA-seq reads and 73 790 ORFs predicted from RNA-seq assemblies were also installed. RNA-seq assemblies and predicted ORFs were annotated with GO term prediction, descriptions against nr and transcript levels (RNA-seq assemblies only). All information about these datasets is available on the library information page of the B. mandarina on SilkBase.

Trilocha varians

A total of 106 248 de novo assemblies of RNA-seq reads with GO terms, blast results against nr and transcript levels were installed. Additionally, 41 707 ORFs predicted from RNA-seq assemblies with GO term predictions and descriptions against nr were installed. All information about these datasets is available on the library information page of the T. varians on SilkBase.

Ernolatia moorei

A total of 38 954 de novo assemblies of RNA-seq reads with GO terms, blast results against nr and transcript levels were installed. Furthermore, 15 068 ORFs predicted from RNA-seq assemblies with GO terms and blast results against nr were installed. All information about these datasets is available on the library information page of the E. moorei on SilkBase.

Samia ricini

A total of 155 scaffolds of S. ricini genome assembly (44), 171 159 de novo assemblies of RNA-seq reads, 78 839 ORFs predicted from RNA-seq assemblies and 20 320 cDNA ends (41) were installed. The RNA-seq assemblies and predicted ORFs were annotated with GO terms, blast results against nr and their transcript levels (RNA-seq assemblies only). All information about these datasets is available on the library information page of the S. ricini on SilkBase.

Simple graphical user interface

The graphical user interface of SilkBase (Figure 1) is configured with the top page, blast search pages, the piRNA- and ChIP-seq mapping tool, keyword search pages, result pages, library information pages and the genome browser page. Direct links to all the main features, which are separated for each species, are displayed on the top page. On the blast search pages, a homologous sequence search is available. The piRNA- and ChIP-seq mapping tool is used for mapping piRNA- and ChIP-seq reads in the dataset of B. mori. Keyword search is also available for all species. All the SilkBase datasets are listed in a table format on the library information page, and most of them are linked to the detailed information page that also directs the genome browser. The transcriptome, genome and epigenome data are available in an integrated format on the genome browser.

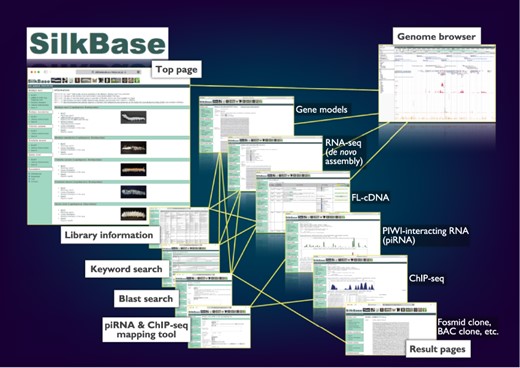

Figure 1.
Overview of the Web user interfaces. The path lines show the user pathways between the Web user interfaces.
Open in new tabDownload slide

Overview of the Web user interfaces. The path lines show the user pathways between the Web user interfaces.

Integrated genome browser

SilkBase users can access the genome browser from the top page or each gene (clone) page of the website. On this genome browser, a snapshot of tissue- and stage-specific gene expression (RNA-seq and cDNA ends), alternative splicing (RNA-seq and full-length cDNAs (FL-cDNAs)), piRNA production (piRNA-seq) and histone modifications (ChIP-seq) at the gene locus of interest on B. mori genome and gene models (Figure 2A) is also available.

Figure 2.
Integrated genome browser. (A) Overview of the genome browser. Genomic, transcriptomic and epigenomic information is displayed on a single screen. (B) Transcriptional status of BmSuc1 in different tissues. (C) A piRNA-producing locus in the Masc gene. (D) Histone modifications around the KWMTBOMO06377 gene.
Open in new tabDownload slide

Integrated genome browser. (A) Overview of the genome browser. Genomic, transcriptomic and epigenomic information is displayed on a single screen. (B) Transcriptional status of BmSuc1 in different tissues. (C) A piRNA-producing locus in the Masc gene. (D) Histone modifications around the KWMTBOMO06377 gene.

Figure 2B shows one of the results of RNA-seq mapping on the genome browser. The BmSuc1 encodes a functional β-fructofuranosidase, which is specifically expressed in the midgut and silk gland (45). This tissue-specific expression of BmSuc1 is clearly seen on our genome browser: RNA-seq reads from midgut, middle silk gland and posterior silk gland are abundantly mapped onto the BmSuc1 locus, whereas few reads are mapped in the RNA-seq libraries of the early embryo, internal genitalia and epidermis (Figure 2B).

Figure 2C shows an example of a piRNA-producing locus within the protein-coding gene. Masculinizer (Masc) encodes a protein required for masculinization and dosage compensation in B. mori. Our studies revealed that Masc messenger RNA is depleted by the W chromosome-derived Feminizer (Fem) piRNA in females and Masc also produces a Masc-derived piRNA via a ping-pong cycle (46–48). We can verify this result clearly on the genome browser: Masc piRNA can be seen in piRNA-seq libraries of ovary and 24-h post-oviposition egg but not in those of testis (Figure 2C).

Figure 2D shows a snapshot of histone modifications at a certain genome locus around KWMTBOMO06377. The ChIP-seq reads of three euchromatic marks, i.e. H3K4me2, H3K4me3 and H3K9ac (37), are abundantly mapped onto the gene body of KWMTBOMO06377. However, ChIP-seq reads of HP1a (B. mori heterochromatin protein 1 homolog), which is associated with the transcription start sites (TSSs) of highly expressed genes (38), can be seen at the TSS of KWMTBOMO06377. Combining with RNA-seq data, we can easily understand the transcriptional and epigenetic conditions of any gene on the B. mori genome.

piRNA- and ChIP-seq mapping tool

SilkBase users can examine the piRNA production status of any query sequence graphically and identify abundance, location and sequences of corresponding piRNAs (Figure 3A). Figure 3B shows a piRNA mapping result of Fem, which indicates a single abundant piRNA (Fem piRNA) produced from the sense strand. This tool was used to visualize Fem- or transposon-derived piRNAs in our previous studies (46–48). We can also use the ChIP-seq mapping tool on SilkBase because it provides abundance, location, and sequences of ChIP-seq reads (HP1 and histone marks) against any query sequence (Figure 3C).

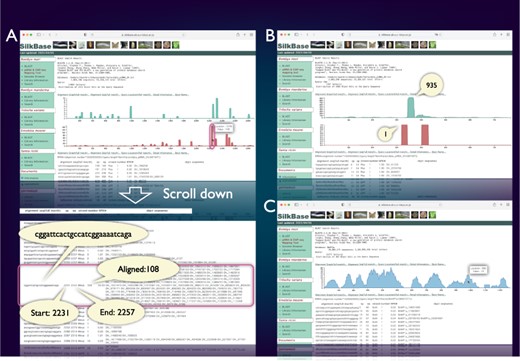

Figure 3.
piRNA- and ChIP-seq mapping tool. The vertical axis indicates the nucleotide position of the query sequence, and the horizontal axis indicates the depth of coverage. The upper graph shows the mapping results on the sense strand, whereas the lower graph shows those on the antisense strand (piRNA mapping tool only). Information on nucleotide sequence, start point, end point, strand and the depth of coverage is displayed below the graph. (A) piRNA production in ovary from the transposon Kabuki. The detailed information of a certain peak (indicated by oval) is as follows: the piRNA sequence is ‘cggattcactgccatcggaaaatcaga’, and 108 reads are mapped from 2231 to 2257. (B) An example of the piRNA production status in the Fem locus. The depth of coverage is 935 on the sense strand and 1 on the antisense strand. (C) Mapping of the HP1a-binding sites around the KWMTBOMO02692 gene. The depth of ChIP-seq coverage on both strands is merged and displayed on a single graph (ChIP-seq mapping tool).
Open in new tabDownload slide

piRNA- and ChIP-seq mapping tool. The vertical axis indicates the nucleotide position of the query sequence, and the horizontal axis indicates the depth of coverage. The upper graph shows the mapping results on the sense strand, whereas the lower graph shows those on the antisense strand (piRNA mapping tool only). Information on nucleotide sequence, start point, end point, strand and the depth of coverage is displayed below the graph. (A) piRNA production in ovary from the transposon Kabuki. The detailed information of a certain peak (indicated by oval) is as follows: the piRNA sequence is ‘cggattcactgccatcggaaaatcaga’, and 108 reads are mapped from 2231 to 2257. (B) An example of the piRNA production status in the Fem locus. The depth of coverage is 935 on the sense strand and 1 on the antisense strand. (C) Mapping of the HP1a-binding sites around the KWMTBOMO02692 gene. The depth of ChIP-seq coverage on both strands is merged and displayed on a single graph (ChIP-seq mapping tool).

Comparative genomic analysis of B. mori-related species

SilkBase comprises the transcriptome and/or genome resources of B. mori-related species, B. mandarina (Lepidoptera: Bombycidae), T. varians (Lepidoptera: Bombycidae), E. moorei (Lepidoptera: Bombycidae) and S. ricini (Lepidoptera: Saturniidae) (Figure 4A). Bombyx mandarina is a putative ancestor of B. mori and is commonly found in mulberry fields in East Asia. Meanwhile, T. varians is widely distributed in South and Southeast Asia, and its larvae feed on the leaves of Ficus spp. Ernolatia moorei is found in South and Southeast Asia, and its larvae feed on the leaves of Ficus spp. Furthermore, S. ricini (Eri silkmoth), a gigantic and polyphagous saturniid moth, is the almost fully domesticated saturniid species. The genome sequence of these species was recently determined by our collaborators (44).

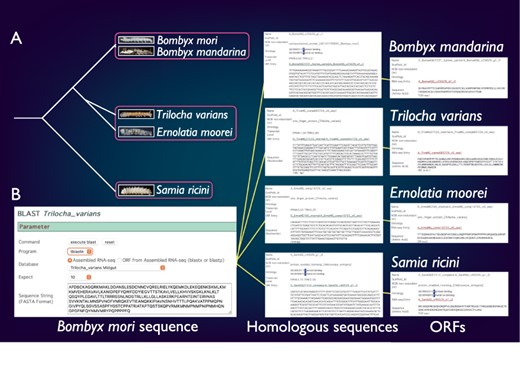

Figure 4.
Comparative genomic analysis of B. mori-related species. (A) The phylogenetic relationship of B. mori and related species. The host plants are different among the three groups (indicated by rectangles). (B) An example of the identification of B. mori Masc homologs from four species.
Open in new tabDownload slide

Comparative genomic analysis of B. mori-related species. (A) The phylogenetic relationship of B. mori and related species. The host plants are different among the three groups (indicated by rectangles). (B) An example of the identification of B. mori Masc homologs from four species.

SilkBase users can perform comparative genomic analysis between B. mori and these species. Figure 4B shows an example of the identification of B. mori Masc homologs. The users can obtain the homolog sequences by a tblastn search using the amino acid sequence of the B. mori Masc as a query against transcriptome assembly of B. mori-related species at each species tab (49). In addition, the ORF of each homolog sequence is available from the result page.

Conclusions

SilkBase is an integrated database of B. mori and related species. It consists of B. mori’s newly assembled chromosome-level genome, B. mori’s transcriptome and epigenome data generated from highly reliable reads of next-generation sequencers and four related species’ transcriptome and/or genome data, most of which were obtained and assembled in our laboratory. The unique selling points of SilkBase are as follows: (1) the simple graphic interface and powerful server provide researchers with good-looking results quickly, and the snapshots of results can be readily used for figure preparation, (2) researchers can easily understand the situation of tissue- and stage-specific gene expression, alternative splicing, piRNA production and histone modifications at a glance on our genome browser and analytic tools and (3) SilkBase provides a platform for conducting comparative studies among five closely related lepidopteran insects. In conclusion, SilkBase is a user-friendly database and we hope that researchers in the world routinely use this database for their studies on B. mori and other insects.

Acknowledgements

We thank Toru Shimada, Kazuei Mita, Shinpei Kawaoka, Katsuhiko Ito, Keisuke Shoji and Masaru Tamura for their helpful comments and discussions. Computational resources for the annotation of assembled RNA-seq were provided by the Data Integration and Analysis Facility, National Institute for Basic Biology.

Funding

Grant-in-Aid for Publication of Scientific Research Results, JSPS, Japan (1999-2003, 2005-2018 to Toru Shimada).

Conflict of interest

None declared.

References

1.

Goldsmith
M.R.
,
Shimada
T.
 and
Abe
H.
 (
2005
)
The genetics and genomics of the silkworm, Bombyx mori
.
Annu. Rev. Entomol.
,
50
,
71
–
100
.

Google Scholar

Crossref
Search ADS
PubMed


2.

Kametaro
T.
(
1906
)
On the hybridology of the silkworm
.
Bull. Tokyo Imperial Univ. Coll. Agric.
,
7
,
259
–
393
.

Google Scholar

OpenURL Placeholder Text


3.

Kurihara
H.
,
Sezutsu
H.
,
Tamura
T.
  et al.  (
2007
)
Production of an active feline interferon in the cocoon of transgenic silkworms using the fibroin H-chain expression system
.
Biochem. Biophys. Res. Comm.
,
355
,
976
–
980
.

Google Scholar

Crossref
Search ADS


4.

Maeda
S.
,
Kawai
T.
,
Obinata
M.
  et al.  (
1985
)
Production of human alpha-interferon in silkworm using a baculovirus vector
.
Nature
,
315
,
592
–
594
.

Google Scholar

Crossref
Search ADS
PubMed


5.

Mita
K.
,
Kasahara
M.
,
Sasaki
S.
  et al.  (
2004
)
The genome sequence of silkworm, Bombyx mori
.
DNA Res.
,
11
,
27
–
35
.

Google Scholar

Crossref
Search ADS
PubMed


6.

Xia
Q.
,
Zhou
Z.
,
Lu
C.
  et al.  (
2004
)
A draft sequence for the genome of the domesticated silkworm (Bombyx mori)
.
Science
,
306
,
1937
–
1940
.

Google Scholar

PubMed
OpenURL Placeholder Text


7.

International Silkworm Genome Consortium
. (
2008
)
The genome of a lepidopteran model insect, the silkworm Bombyx mori
.
Insect Biochem. Mol. Biol.
,
38
,
1036
–
1045
.

Crossref
Search ADS
PubMed


8.

Kawamoto
M.
,
Jouraku
A.
,
Toyoda
A.
  et al.  (
2019
)
High-quality genome assembly of the silkworm, Bombyx mori
.
Insect Biochem. Mol. Biol.
,
107
,
53
–
62
.

Google Scholar

Crossref
Search ADS
PubMed


9.

Mita
K.
,
Morimyo
M.
,
Okano
K.
  et al.  (
2003
)
The construction of an EST database for Bombyx mori and its application
.
Proc. Natl. Acad. Sci. U.S.A.
,
100
,
14121
–
14126
.

Google Scholar

Crossref
Search ADS
PubMed


10.

Lu
F.
,
Wei.
Z.
,
Luo
Y.
  et al.  (
2020
)
SilkDB 3.0: visualizing and exploring multiple levels of data for silkworm
.
Nucleic Acids Res.
,
48
,
D749
–
D755
.

Google Scholar

Crossref
Search ADS
PubMed


11.

Yang
C.
,
Yokoi
K.
,
Yamamoto
K.
  et al.  (
2021
)
An update of KAIKObase, the silkworm genome database
.
Database
,
2021
, baaa099.

Google Scholar

OpenURL Placeholder Text


12.

Li
T.
,
Pan
G.
,
Vossbrinck
C.R.
  et al.  (
2017
)
SilkPathDB: a comprehensive resource for the study of silkworm pathogens
.
Database
,
2017
, bax001.

Google Scholar

OpenURL Placeholder Text


13.

Zhu
Z.
,
Guan
Z.
,
Liu
G.
  et al.  (
2019
)
SGID: a comprehensive and interactive database of the silkworm
.
Database
,
2019
, baz134.

Google Scholar

OpenURL Placeholder Text


14.

Challis
R.J.
,
Kumar
S.
,
Dasmahapatra
K.K.
  et al.  (
2016
)
Lepbase: the Lepidopteran genome database
.
bioRxiv
. doi:
10.1101/056994
.

Google Scholar

OpenURL Placeholder Text

Crossref


15.

Jouraku
A.
,
Yamamoto
K.
,
Kuwazaki
S.
  et al.  (
2013
)
KONAGAbase: a genomic and transcriptomic database for the diamondback moth, Plutella xylostella
.
BMC Genomics
,
14
, 464.

Google Scholar

OpenURL Placeholder Text


16.

Zhan
S.
and
Reppert
S.M.
 (
2013
)
MonarchBase: the monarch butterfly genome database
.
Nucleic Acids Res.
,
41
,
D758
–
D763
.

Google Scholar

Crossref
Search ADS
PubMed


17.

Grabherr
M.G.
,
Haas
B.J.
,
Yassour
M.
  et al.  (
2011
)
Full-length transcriptome assembly from RNA-Seq data without a reference genome
.
Nat. Biotechnol.
,
29
,
644
–
652
.

Google Scholar

Crossref
Search ADS
PubMed


18.

Li
H.
(
2013
)
Aligning sequence reads, clone sequences and assembly contigs with BWA-MEM
. arXiv, 1303.3997v2.

OpenURL Placeholder Text

19.

Li
H.
,
Handsaker
B.
,
Wysoker
A.
  et al.  (
2009
)
The sequence alignment/map format and SAMtools
.
Bioinformatics
,
25
,
2078
–
2079
.

Google Scholar

Crossref
Search ADS
PubMed


20.

McKenna
A.
,
Hanna
M.
,
Banks
E.
  et al.  (
2010
)
The Genome Analysis Toolkit: a MapReduce framework for analyzing next-generation DNA sequencing data
.
Genome Res.
,
20
,
1297
–
1303
.

Google Scholar

Crossref
Search ADS
PubMed


21.

Kajitani
R.
,
Toshimoto
K.
,
Noguchi
H.
  et al.  (
2014
)
Efficient de novo assembly of highly heterozygous genomes from whole-genome shotgun short reads
.
Genome Res.
,
24
,
1384
–
1395
.

Google Scholar

Crossref
Search ADS
PubMed


22.

Jones
P.
,
Binns
D.
,
Chang
H.Y.
  et al.  (
2014
)
InterProScan 5: genome-scale protein function classification
.
Bioinformatics
,
30
,
1236
–
1240
.

Google Scholar

Crossref
Search ADS
PubMed


23.

Langmead
B.
and
Salzberg
S.L.
 (
2012
)
Fast gapped-read alignment with Bowtie 2
.
Nat. Methods
,
9
,
357
–
359
.

Google Scholar

Crossref
Search ADS
PubMed


24.

Li
B.
and
Dewey
C.N.
 (
2011
)
RSEM: accurate transcript quantification from RNA-Seq data with or without a reference genome
.
BMC Bioinform.
,
12
, 323.

Google Scholar

OpenURL Placeholder Text


25.

Suetsugu
Y.
,
Futahashi
R.
,
Kanamori
H.
  et al.  (
2013
)
Large scale full-length cDNA sequencing reveals a unique genomic landscape in a lepidopteran model insect, Bombyx mori
.
G3: Genes Genomes Genet.
,
3
,
1481
–
1492
.

Google Scholar

Crossref
Search ADS


26.

Wu
T.D.
and
Watanabe
C.K.
 (
2005
)
GMAP: a genomic mapping and alignment program for mRNA and EST sequences
.
Bioinformatics
,
21
,
1859
–
1875
.

Google Scholar

Crossref
Search ADS
PubMed


27.

Kim
D.
,
Paggi
J.M.
,
Park
C.
  et al.  (
2019
)
Graph-based genome alignment and genotyping with HISAT2 and HISAT-genotype
.
Nat. Biotechnol.
,
37
,
907
–
915
.

Google Scholar

Crossref
Search ADS
PubMed


28.

Langmead
B.
,
Trapnell
C.
,
Pop
M.
  et al.  (
2009
)
Ultrafast and memory-efficient alignment of short DNA sequences to the human genome
.
Genome Biol.
,
10
, R25.

Google Scholar

OpenURL Placeholder Text


29.

Stovner
E.
and
Sætrom
B.
 (
2019
)
epic2 efficiently finds diffuse domains in ChIP-seq data
.
Bioinformatics
,
35
,
4392
–
4393
.

Google Scholar

Crossref
Search ADS
PubMed


30.

Buels
R.
,
Yao
E.
,
Diesh
C.M.
  et al.  (
2016
)
JBrowse: a dynamic web platform for genome visualization and analysis
.
Genome Biol.
,
17
, 66.

Google Scholar

OpenURL Placeholder Text


31.

Yamamoto
K.
,
Nohata
J.
,
Kadono-Okuda
K.
  et al.  (
2008
)
A BAC-based integrated linkage map of the silkworm Bombyx mori
.
Genome Biol.
,
9
, R21.

Google Scholar

OpenURL Placeholder Text


32.

Kawaoka
S.
,
Kadota
K.
,
Arai
Y.
  et al.  (
2011
)
The silkworm W chromosome is a source of female-enriched piRNAs
.
RNA
,
17
,
2144
–
2151
.

Google Scholar

Crossref
Search ADS
PubMed


33.

Zhang
H.
,
Kiuchi
T.
,
Wang
L.
  et al.  (
2017
)
Bm-muted, orthologous to mouse muted and encoding a subunit of the BLOC-1 complex, is responsible for the otm translucent mutation of the silkworm Bombyx mori
.
Gene
,
629
,
92
–
100
.

Google Scholar

Crossref
Search ADS
PubMed


34.

Kawaoka
S.
,
Hayashi
N.
,
Suzuki
Y.
  et al.  (
2009
)
The Bombyx ovary-derived cell line endogenously expresses PIWI/PIWI-interacting RNA complexes
.
RNA
,
15
,
1258
–
1264
.

Google Scholar

Crossref
Search ADS
PubMed


35.

Kawaoka
S.
,
Arai
Y.
,
Kadota
K.
  et al.  (
2011
)
Zygotic amplification of secondary piRNAs during silkworm embryogenesis
.
RNA
,
17
,
1401
–
1407
.

Google Scholar

Crossref
Search ADS
PubMed


36.

Kawaoka
S.
,
Mitsutake
H.
,
Kiuchi
T.
  et al.  (
2012
)
A role for transcription from a piRNA cluster in de novo piRNA production
.
RNA
,
18
,
265
–
273
.

Google Scholar

Crossref
Search ADS
PubMed


37.

Kawaoka
S.
,
Hara
K.
,
Shoji
K.
  et al.  (
2013
)
The comprehensive epigenome map of piRNA clusters
.
Nucleic Acids Res.
,
41
,
1581
–
1590
.

Google Scholar

Crossref
Search ADS
PubMed


38.

Shoji
K.
,
Hara
K.
,
Kawamoto
M.
  et al.  (
2014
)
Silkworm HP1a transcriptionally enhances highly expressed euchromatic genes via association with their transcription start sites
.
Nucleic Acids Res.
,
42
,
11462
–
11471
.

Google Scholar

Crossref
Search ADS
PubMed


39.

Shoji
K.
,
Kiuchi
T.
,
Hara
K.
  et al.  (
2013
)
Characterization of a novel chromodomain-containing gene from the silkworm, Bombyx mori
.
Gene
,
527
,
649
–
654
.

Google Scholar

Crossref
Search ADS
PubMed


40.

Daimon
T.
,
Yago
M.
,
Hsu
Y.
  et al.  (
2012
)
Molecular phylogeny, laboratory rearing, and karyotype of the bombycid moth, Trilocha varians
.
J Insect Sci.
,
12
, 49.

Google Scholar

OpenURL Placeholder Text


41.

Arunkumar
K.P.
,
Tomar
A.
,
Daimon
T.
  et al.  (
2008
)
WildSilkbase: an EST database of wild silkmoths
.
BMC Genomics
,
9
, 338.

Google Scholar

OpenURL Placeholder Text


42.

Funaguma
S.
,
Hashimoto
S.
,
Suzuki
Y.
  et al.  (
2007
)
SAGE analysis of early oogenesis in the silkworm, Bombyx mori
.
Insect Biochem. Mol. Biol.
,
37
,
147
–
154
.

Google Scholar

Crossref
Search ADS
PubMed


43.

Osanai-Futahashi
M.
,
Suetsugu
Y.
,
Mita
K.
  et al.  (
2008
)
Genome-wide screening and characterization of transposable elements and their distribution analysis in the silkworm, Bombyx mori
.
Insect Biochem. Mol. Biol.
,
38
,
1046
–
1057
.

Google Scholar

Crossref
Search ADS
PubMed


44.

Lee
J.
,
Nishiyama
T.
,
Shigenobu
S.
  et al.  (
2020
)
The genome sequence of Samia ricini, a new model species of lepidopteran insect
.
Mol. Ecol. Resour.
,
21
,
327
–
339
.

Google Scholar

Crossref
Search ADS
PubMed


45.

Daimon
T.
,
Taguchi
T.
,
Meng
Y.
  et al.  (
2008
)
Beta-fructofuranosidase genes of the silkworm, Bombyx mori: insights into enzymatic adaptation of B. mori to toxic alkaloids in mulberry latex
.
J. Biol. Chem.
,
283
,
15271
–
15279
.

Google Scholar

Crossref
Search ADS
PubMed


46.

Kiuchi
T.
,
Koga
H.
,
Kawamoto
M.
  et al.  (
2014
)
A single female-specific piRNA is the primary determiner of sex in the silkworm
.
Nature
,
509
,
633
–
636
.

Google Scholar

Crossref
Search ADS
PubMed


47.

Katsuma
S.
,
Kawamoto
M.
 and
Kiuchi
T.
 (
2014
)
Guardian small RNAs and sex determination
.
RNA Biol.
,
11
,
1238
–
1242
.

Google Scholar

Crossref
Search ADS
PubMed


48.

Katsuma
S.
,
Kiuchi
T.
,
Kawamoto
M.
  et al.  (
2018
)
Unique sex determination system in the silkworm, Bombyx mori: current status and beyond
.
Proc. Jpn. Acad. Ser B Phys. Biol. Sci.
,
94
,
205
–
216
.

Google Scholar

Crossref
Search ADS
PubMed


49.

Lee
J.
,
Kiuchi
T.
,
Kawamoto
M.
  et al.  (
2015
)
Identification and functional analysis of a Masculinizer orthologue in Trilocha varians (Lepidoptera: Bombycidae)
.
Insect Mol. Biol.
,
24
,
561
–
569
.

Google Scholar

Crossref
Search ADS
PubMed


© The Author(s) 2022. Published by Oxford University Press.
This is an Open Access article distributed under the terms of the Creative Commons Attribution-NonCommercial License (https://creativecommons.org/licenses/by-nc/4.0/), which permits non-commercial re-use, distribution, and reproduction in any medium, provided the original work is properly cited. For commercial re-use, please contact journals.permissions@oup.com
Issue Section:
Original Article
Download all slides
