Abstract

We describe an online open repository and analysis platform, BioAcoustica ( http://bio.acousti.ca ), for recordings of wildlife sounds. Recordings can be annotated using a crowdsourced approach, allowing voice introductions and sections with extraneous noise to be removed from analyses. This system is based on the Scratchpads virtual research environment, the BioVeL portal and the Taverna workflow management tool, which allows for analysis of recordings using a grid computing service. At present the analyses include spectrograms, oscillograms and dominant frequency analysis. Further analyses can be integrated to meet the needs of specific researchers or projects. Researchers can upload and annotate their recordings to supplement traditional publication.

Database URL: http://bio.acousti.ca

Introduction

Collections of recorded wildlife sounds have huge potential as a resource for systematics, e.g. ( 1–3 ); biogeography, e.g. ( 4–6 ) and automated identification, e.g. ( 7–9 ). Many libraries of recorded sound exist in institutional collections but these are often underused, often because knowledge of their existence is limited within the institution, let alone outside of it. In order to maximize the potential of these collections they need to be easily accessible, and linked with the broader infrastructures of biodiversity informatics. Where collections are available, they generally do not deal with recordings containing multiple taxa or allow for annotation of regions containing spoken metadata or extraneous noise, e.g. ( 10 ).

The aims of BioAcoustica are 4-fold: (i), to make recordings available to as large an audience as possible in both human and machine readable formats; (ii) to facilitate crowdsourced annotation of recordings; (iii) to integrate common acoustic analyses without the need for additional specialist programs and (iv) provide the metadata of recordings to interested communities outside of the field of bioacoustics, e.g. the recording of a species in the wild is an observation of that species at a particular time and place. Records of this type are aggregated by the Global Biodiversity Informatics Facility (GBIF: http://gbif.org ) and can then be used in studies of global distribution of species.

Technical overview

BioAcoustica is a specialised instance of the Scratchpads ( 11 ) virtual research environment. Scratchpads provides a community website (a Scratchpad) for collaboratively managing biodiversity-related content, in this case audio files, locations, specimens, bibliographic references and the biological taxonomy used to manage them. The Scratchpad also manages user registration, commenting on content and the various methods of displaying content. Scratchpads are built on Drupal ( http://drupal.org ), an open source content management system. The BioAcoustica Scratchpad has been extended to allow for the annotation of audio files and for annotated sections of audio files to be analysed from within the Scratchpad by creating a custom content type (node type in Drupal) and additional code modules (using PHP and JavaScript) to handle the annotation and analysis of sounds. Analysis is performed by a cloud computation service. Figure 1 shows the infrastructure discussed in this article.

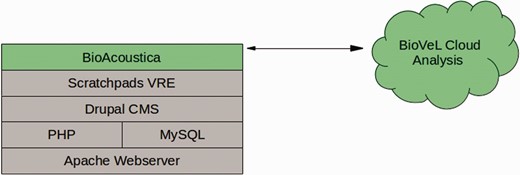

Infrastructure diagram of BioAcoustica, showing underlying server infrastructure (grey) and the systems.
Figure 1.

Infrastructure diagram of BioAcoustica, showing underlying server infrastructure (grey) and the systems.

Data model

Scratchpads provide node types for creating bibliographic, specimen/observation and location nodes, where a node is an individual item of content on a Scratchpad. The specimen/observation and location nodes follow the DarwinCore standard ( 12 ).

The only new node type created in BioAcoustica is the ‘Recording’ content type which is used to store both the recorded file (in WAV format) and the associated metadata. Table 1 shows the metadata fields used. These fields are based on the original metadata sheets used by the BMNH Acoustic Laboratory ( http://sounds.myspecies.info/node/11273 ; Figures 2 and 3 ).

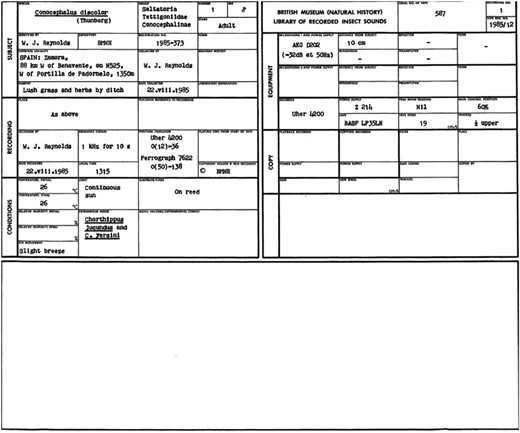

Example metadata record from the BMNH Acoustic Laboratory.
Figure 2.

Example metadata record from the BMNH Acoustic Laboratory.

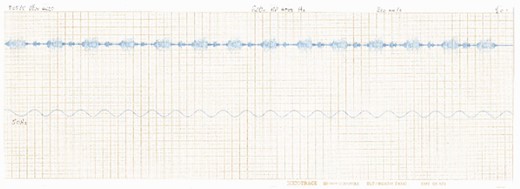

Scan of a waveform made in the BMNH Acoustic Laboratory. There exist a number of these wave traces where the original recording cannot be located.
Figure 3.

Scan of a waveform made in the BMNH Acoustic Laboratory. There exist a number of these wave traces where the original recording cannot be located.

Table 1.

Metadata fields used in the BioAcoustica ‘Recording’ node type

GroupFieldDescriptionExample
TitleThe name used to identify the recording (typically includes original CD/tape number and species) 954 Conocephalus discolor
RecordingThe audio file
ProjectNatural History Museum Sound Archive
SourceOriginal metadata imageA scan or photograph of the original metadata if it exists in printed or handwritten form See Figure 1
Original trace imagesScan(s) or photograph(s) of paper oscillograms relating to the recording See Figure 2
Original verbatim speciesThe species identification as recorded in the original metadataC. discolor
Original CD numberUsed to associate digital record with physical collection575
Original CD track numberUsed to associate digital record with physical collection4
Original tape numberUsed to associate digital record with physical collection575
Copyright holderNatural History Museum
LicenceCreative Commons: Attribution
SubjectSpeciesLink to a taxon in the site’s biological classificationC. discolor
Requested additional speciesUsed to suggest a name that is not currently in the site’s biological classification
SpecimenLink the recording to a preserved or observed specimenBMNH–E–1427969
RecordingLocationLocation the recording was made (may be different to where the specimen was collected)BMNH Acoustic Laboratory
Published referenceLink(s) to publications that make use of this recording Price et al. ( 13 )
Recorded ByWho made the recording?Ragge
Date recordedDate the recording was made06.xi.1985
Local timeLocal time recording was made13:00
Reference signalFrequency of any reference signal used10 kHz
ConditionsInitial temperatureTemperature in Celsius at the start of the recording23.5
Final temperatureTemperature in Celsius at the end of the recording24.0
Initial relative humidityRelative humidity (%) at start of recording40
Final relative humidityRelative humidity (%) at end of recording40
Air movementLight from fan 1 m away
Light60 W desk lamp
Extraneous noiseFan in background
Substrate or cageMesh cage
Biotic factors or experimental conditionsNone
Equipment: generalMicrophone and power supplySennheiserMKH 405
Equipment: recorderRecorderKudelski Nagra IV D
Power supplyATN2/QED750
Peak meter reading−20
Gain control position130
TapeBSF SP52
Tape speed (cm/s)38
TracksFull
GroupFieldDescriptionExample
TitleThe name used to identify the recording (typically includes original CD/tape number and species) 954 Conocephalus discolor
RecordingThe audio file
ProjectNatural History Museum Sound Archive
SourceOriginal metadata imageA scan or photograph of the original metadata if it exists in printed or handwritten form See Figure 1
Original trace imagesScan(s) or photograph(s) of paper oscillograms relating to the recording See Figure 2
Original verbatim speciesThe species identification as recorded in the original metadataC. discolor
Original CD numberUsed to associate digital record with physical collection575
Original CD track numberUsed to associate digital record with physical collection4
Original tape numberUsed to associate digital record with physical collection575
Copyright holderNatural History Museum
LicenceCreative Commons: Attribution
SubjectSpeciesLink to a taxon in the site’s biological classificationC. discolor
Requested additional speciesUsed to suggest a name that is not currently in the site’s biological classification
SpecimenLink the recording to a preserved or observed specimenBMNH–E–1427969
RecordingLocationLocation the recording was made (may be different to where the specimen was collected)BMNH Acoustic Laboratory
Published referenceLink(s) to publications that make use of this recording Price et al. ( 13 )
Recorded ByWho made the recording?Ragge
Date recordedDate the recording was made06.xi.1985
Local timeLocal time recording was made13:00
Reference signalFrequency of any reference signal used10 kHz
ConditionsInitial temperatureTemperature in Celsius at the start of the recording23.5
Final temperatureTemperature in Celsius at the end of the recording24.0
Initial relative humidityRelative humidity (%) at start of recording40
Final relative humidityRelative humidity (%) at end of recording40
Air movementLight from fan 1 m away
Light60 W desk lamp
Extraneous noiseFan in background
Substrate or cageMesh cage
Biotic factors or experimental conditionsNone
Equipment: generalMicrophone and power supplySennheiserMKH 405
Equipment: recorderRecorderKudelski Nagra IV D
Power supplyATN2/QED750
Peak meter reading−20
Gain control position130
TapeBSF SP52
Tape speed (cm/s)38
TracksFull

These are based on the fields used by the BMNH Acoustic Laboratory.

Table 1.

Metadata fields used in the BioAcoustica ‘Recording’ node type

GroupFieldDescriptionExample
TitleThe name used to identify the recording (typically includes original CD/tape number and species) 954 Conocephalus discolor
RecordingThe audio file
ProjectNatural History Museum Sound Archive
SourceOriginal metadata imageA scan or photograph of the original metadata if it exists in printed or handwritten form See Figure 1
Original trace imagesScan(s) or photograph(s) of paper oscillograms relating to the recording See Figure 2
Original verbatim speciesThe species identification as recorded in the original metadataC. discolor
Original CD numberUsed to associate digital record with physical collection575
Original CD track numberUsed to associate digital record with physical collection4
Original tape numberUsed to associate digital record with physical collection575
Copyright holderNatural History Museum
LicenceCreative Commons: Attribution
SubjectSpeciesLink to a taxon in the site’s biological classificationC. discolor
Requested additional speciesUsed to suggest a name that is not currently in the site’s biological classification
SpecimenLink the recording to a preserved or observed specimenBMNH–E–1427969
RecordingLocationLocation the recording was made (may be different to where the specimen was collected)BMNH Acoustic Laboratory
Published referenceLink(s) to publications that make use of this recording Price et al. ( 13 )
Recorded ByWho made the recording?Ragge
Date recordedDate the recording was made06.xi.1985
Local timeLocal time recording was made13:00
Reference signalFrequency of any reference signal used10 kHz
ConditionsInitial temperatureTemperature in Celsius at the start of the recording23.5
Final temperatureTemperature in Celsius at the end of the recording24.0
Initial relative humidityRelative humidity (%) at start of recording40
Final relative humidityRelative humidity (%) at end of recording40
Air movementLight from fan 1 m away
Light60 W desk lamp
Extraneous noiseFan in background
Substrate or cageMesh cage
Biotic factors or experimental conditionsNone
Equipment: generalMicrophone and power supplySennheiserMKH 405
Equipment: recorderRecorderKudelski Nagra IV D
Power supplyATN2/QED750
Peak meter reading−20
Gain control position130
TapeBSF SP52
Tape speed (cm/s)38
TracksFull
GroupFieldDescriptionExample
TitleThe name used to identify the recording (typically includes original CD/tape number and species) 954 Conocephalus discolor
RecordingThe audio file
ProjectNatural History Museum Sound Archive
SourceOriginal metadata imageA scan or photograph of the original metadata if it exists in printed or handwritten form See Figure 1
Original trace imagesScan(s) or photograph(s) of paper oscillograms relating to the recording See Figure 2
Original verbatim speciesThe species identification as recorded in the original metadataC. discolor
Original CD numberUsed to associate digital record with physical collection575
Original CD track numberUsed to associate digital record with physical collection4
Original tape numberUsed to associate digital record with physical collection575
Copyright holderNatural History Museum
LicenceCreative Commons: Attribution
SubjectSpeciesLink to a taxon in the site’s biological classificationC. discolor
Requested additional speciesUsed to suggest a name that is not currently in the site’s biological classification
SpecimenLink the recording to a preserved or observed specimenBMNH–E–1427969
RecordingLocationLocation the recording was made (may be different to where the specimen was collected)BMNH Acoustic Laboratory
Published referenceLink(s) to publications that make use of this recording Price et al. ( 13 )
Recorded ByWho made the recording?Ragge
Date recordedDate the recording was made06.xi.1985
Local timeLocal time recording was made13:00
Reference signalFrequency of any reference signal used10 kHz
ConditionsInitial temperatureTemperature in Celsius at the start of the recording23.5
Final temperatureTemperature in Celsius at the end of the recording24.0
Initial relative humidityRelative humidity (%) at start of recording40
Final relative humidityRelative humidity (%) at end of recording40
Air movementLight from fan 1 m away
Light60 W desk lamp
Extraneous noiseFan in background
Substrate or cageMesh cage
Biotic factors or experimental conditionsNone
Equipment: generalMicrophone and power supplySennheiserMKH 405
Equipment: recorderRecorderKudelski Nagra IV D
Power supplyATN2/QED750
Peak meter reading−20
Gain control position130
TapeBSF SP52
Tape speed (cm/s)38
TracksFull

These are based on the fields used by the BMNH Acoustic Laboratory.

BioAcoustica allows linkage of various nodes of different types to create a navigable resource covering recordings, specimens (whether living or later preserved), locations and publications. The linkages used in BioAcoustica are illustrated in Figure 4 and listed in Table 2 along with their rationales.

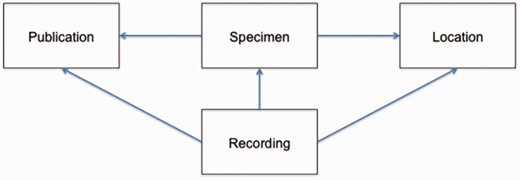

Data linkages in BioAcoustica. The creation of links is a unidirectional process, although back- and forward-links are presented to the end user.
Figure 4.

Data linkages in BioAcoustica. The creation of links is a unidirectional process, although back- and forward-links are presented to the end user.

Table 2.

Usage rationales for data linkages within the BioAcoustica website

FromToUsage
RecordingSpecimenMultiple recordings may be made from a single specimen
SpecimenLocation Multiple specimens may be recorded in the same location; individuals may be recorded at the same population over a number of years (e.g. Chapman’s Pool for Conocephalus discolor )
RecordingLocationWas the recording made in the field, or elsewhere at a later time from a collected individual
SpecimenPublication A publication may cite a specimen, or be used to provide further details about a specimen, e.g. using ( 14 ) to add GenBank references)
RecordingPublicationAllows a list of recordings used in a publication to be generated
FromToUsage
RecordingSpecimenMultiple recordings may be made from a single specimen
SpecimenLocation Multiple specimens may be recorded in the same location; individuals may be recorded at the same population over a number of years (e.g. Chapman’s Pool for Conocephalus discolor )
RecordingLocationWas the recording made in the field, or elsewhere at a later time from a collected individual
SpecimenPublication A publication may cite a specimen, or be used to provide further details about a specimen, e.g. using ( 14 ) to add GenBank references)
RecordingPublicationAllows a list of recordings used in a publication to be generated
Table 2.

Usage rationales for data linkages within the BioAcoustica website

FromToUsage
RecordingSpecimenMultiple recordings may be made from a single specimen
SpecimenLocation Multiple specimens may be recorded in the same location; individuals may be recorded at the same population over a number of years (e.g. Chapman’s Pool for Conocephalus discolor )
RecordingLocationWas the recording made in the field, or elsewhere at a later time from a collected individual
SpecimenPublication A publication may cite a specimen, or be used to provide further details about a specimen, e.g. using ( 14 ) to add GenBank references)
RecordingPublicationAllows a list of recordings used in a publication to be generated
FromToUsage
RecordingSpecimenMultiple recordings may be made from a single specimen
SpecimenLocation Multiple specimens may be recorded in the same location; individuals may be recorded at the same population over a number of years (e.g. Chapman’s Pool for Conocephalus discolor )
RecordingLocationWas the recording made in the field, or elsewhere at a later time from a collected individual
SpecimenPublication A publication may cite a specimen, or be used to provide further details about a specimen, e.g. using ( 14 ) to add GenBank references)
RecordingPublicationAllows a list of recordings used in a publication to be generated

Linkages between different types of content are displayed to the user at the bottom of the relevant webpage. See Figure 5 for an example showing specimens used in a published research article.

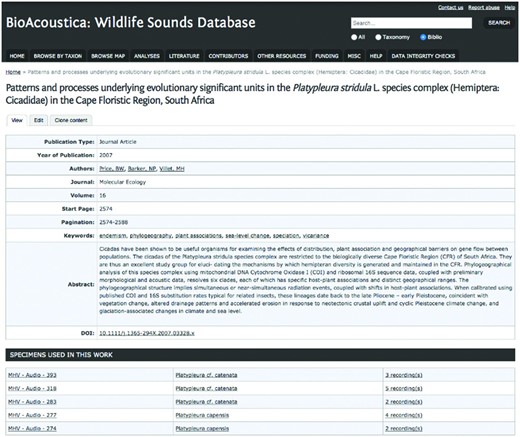

Publication page from BioAcoustica website showing links to specimens and recordings referenced in the article.
Figure 5.

Publication page from BioAcoustica website showing links to specimens and recordings referenced in the article.

Waveform display

BioAcoustica stores recordings in waveform audio (preferred) or MP3 encoded format. Waveform images of audio files are displayed on recording pages, allowing the user to examine the overall shape of the waveform ( Figure 6 ) and to facilitate precise annotations (see Annotation). These waveforms are generated in the user’s browser using the wavesurfer.js library (JavaScript). For longer audio files the waveform automatically scrolls across the screen as the file is played.

 Waveform generated by the wavesurfer.js library (from: http://bio.acousti.ca/node/11778 ).
Figure 6.

Waveform generated by the wavesurfer.js library (from: http://bio.acousti.ca/node/11778 ).

The waveform module for Drupal developed by Michael Mallet (see Code repositories) provides an integration of the wavesurfer.js code into the Drupal environment. The waveform module for Scratchpads developed for use in BioAcoustica is based on that by Michael Mallet with modifications by Baker and Rycroft to create a more comprehensive Drupal and Scratchpads integration, and to automatically scale the waveform to an appropriate size depending on the duration of the file.

In order to allow the waveform to be clearly visible while making annotations, and to allow accurate region selection, the waveform remains at the top of the page (at full width) as the user scrolls down. The horizontal (temporal) resolution of the waveform is limited to the size of the HTML canvas element that is used to draw it. The resolution is automatically set by BioAcoustica to allow maximum possible detail.

Annotation

The BioAcoustica Scratchpad has been extended to allow for the annotation of audio files. Many recordings include a spoken introduction and/or contain periods of extraneous noise. These sections must be removed before performing analysis of that sound file. In addition, recordings may include the acoustic behaviour of one or more individuals of a single species, or of more than one species. The annotation function allows for different parts of the file to be labelled appropriately. These annotated sections may then be used in acoustic analyses.

The annotation functionality has been achieved through the modification of the commenting facility of Scratchpads that creates an additional type of comment that is used as an annotation. Annotations require the user to select a type of annotation (e.g. voice introduction, extraneous noise, call with extraneous noise, clear call), the start and end times of the annotated section in seconds and optionally a free-text description of the annotation.

When an annotation is saved the type of the annotation is checked, and if the audio section is specified as a call, then the section is queued for analysis.

Annotations’ waveforms are displayed using the Regions plugin for wavesurfer.js. The annotated regions are coloured based upon the type of the annotation ( Figure 7 ). Regions are translucent to enable the visual display of overlapping annotations.

 Annotated waveform generated using the Regions plugin for wavesurfer.js. Annotated regions are colour coded by the type of annotation (blue for voice introductions, red for extraneous noise and green for calls). From: http://bio.acousti.ca/node/11778 .
Figure 7.

Annotated waveform generated using the Regions plugin for wavesurfer.js. Annotated regions are colour coded by the type of annotation (blue for voice introductions, red for extraneous noise and green for calls). From: http://bio.acousti.ca/node/11778 .

Analysis

Analysis is performed through the Seewave package ( 15 ) for the R statistical language and environment ( 16 ). The Biodiversity Virtual e-Laboratory (BioVeL, Ref. 14) Portal is used to perform analyses. The BioVeL portal runs Taverna workflows ( 17 ) submitted by users or other services using the myGrid infrastructure ( http://www.mygrid.org.uk/ ).

When an analysis is required, the Scratchpad sends a request to the BioVeL portal specifying the analysis to be performed, a link to the audio file to be analysed and any other required parameters (e.g. the start and end points of the analysis if the analysis is not of the entire file). The analysis is then queued by the BioVeL Portal and performed asynchronously from BioAcoustica. This method allows for multiple analyses to be submitted and performed without impacting on the performance of the Scratchpads server ( 18 ).

The Scratchpad periodically checks for completed analyses. When an analysis has completed the Scratchpad server downloads a zip file containing the analysis results from the BioVeL portal. The zip file is extracted and the results of the analysis are attached to the appropriate annotation. The analysis can be returned from the BioVeL portal, linked to the relevant annotation and updated in the user’s web browser without the user having to refresh their page due to the use of asynchronous web technologies.

This ‘analyse by default’ method is facilitated by using the external computational power provided by the BioVeL portal and provides for great efficiency: the analyses are completed quickly in the background as you annotate the sections you wish to study without competing for the resources of the Scratchpads servers.

Types of analysis

The default analysis workflow of BioAcoustica generates the following widely used analyses: dominant frequency, spectrogram, frequency spectrum and acoustic complexity index ( Figure 8 ).

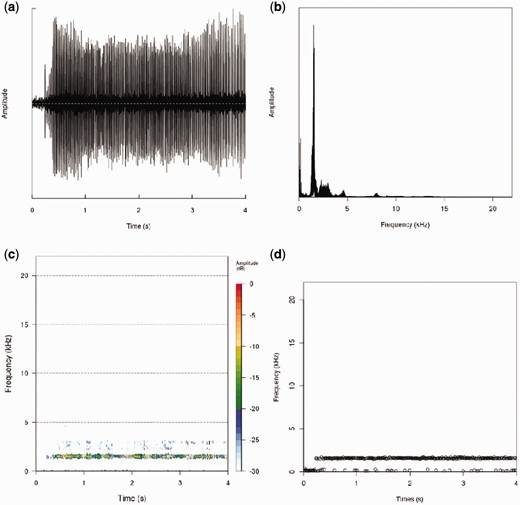

 Analysis plots generated using the seewave package for the R statistical language running on the BioVeL portal (from http://bio.acousti.ca/comment/40#comment-40 ). ( a ) Oscillogram showing overall amplitude of wave against time, ( b ) plot of frequency amplitude against frequency, ( c ) spectrogram plot, heatmap of frequency against time, ( d ) dominant frequency (largest amplitude) against time.
Figure 8.

Analysis plots generated using the seewave package for the R statistical language running on the BioVeL portal (from http://bio.acousti.ca/comment/40#comment-40 ). ( a ) Oscillogram showing overall amplitude of wave against time, ( b ) plot of frequency amplitude against frequency, ( c ) spectrogram plot, heatmap of frequency against time, ( d ) dominant frequency (largest amplitude) against time.

Researchers may use the sound files contained in BioAcoustica to perform their own analyses on their local machines, or develop a Taverna workflow that can be run from the BioVeL portal. Creating a Taverna workflow has the advantage that it can be integrated into the BioAcoustica site if it is widely used.

The R package bioacousticaR, currently available from the Natural History Museum’s GitHub repository is being developed to allow querying of the BioAcoustica recordings and annotations from within an R environment ( Figure 9 ).

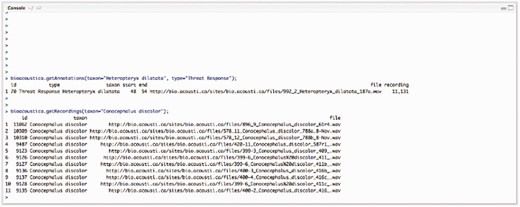

R console example of using bioacousticaR to query the BioAcoustica database of recordings and annotations.
Figure 9.

R console example of using bioacousticaR to query the BioAcoustica database of recordings and annotations.

Viewing analyses

As well as being able to view analyses directly below the recordings on which they are based, we have also created specialized views of the analyses to enable comparisons to be easily made ( Figure 10 ). A list of all analyses performed can be found at http://bio.acousti.ca/analyses . This list can be filtered by taxon.

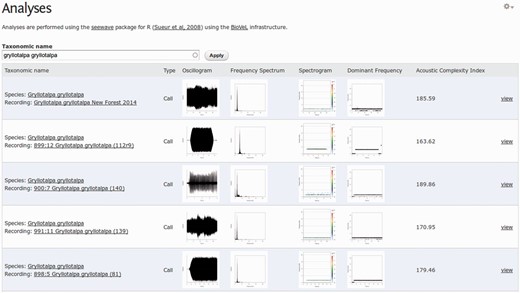

 View of five analyses of different recordings of the European Mole Cricket Gryllotalpa gryllotalpa .
Figure 10.

View of five analyses of different recordings of the European Mole Cricket Gryllotalpa gryllotalpa .

Taxonomy and nomenclature

The site uses a biological classification managed by the authors and limited in scope to taxa that have content within the database. External contributors can request the addition of taxa to this classification to accommodate their datasets. Mass imports of taxa are first checked against current taxonomies in the Encyclopedia of Life (EoL) through an automated script ( 19 ).

After the import of new datasets, scientific name strings are checked for synonyms and misspellings using the EoL database ( 20 ) using tools from the Supertree Toolkit ( 19 ). Each name in the sound database is checked by searching for that name via the EoL API. EoL returns information on possible synonyms within a JSON data object. For each name checked a status is assigned. These are: ‘green’: meaning the name is identical to the currently valid scientific name; ‘yellow’: meaning the name is a misspelling or synonym and the current valid scientific name is suggested; ‘amber’: the search return multiple results for the name and so is a homonym and required manual checking and ‘red’ meaning the name was not found.

Due to the nature of the EoL API manual checking of the results is required to see if scientific names on the BioAcoustica site need to be changed (e.g. issues may be raised by identical names that legitimately occur separately under the botanical and zoological codes of nomenclature). For this reason, name statuses are not shared with the public, but are available to site administrators and data providers.

Data integrity

The database is backed up daily, and daily backups are kept for 1 week, a monthly backup is kept for 1 year and yearly backups are currently kept indefinitely. Files (including audio recordings) are backed up daily, and deleted files are kept for 6 weeks. These backups are to preserve the data integrity of the site, and are not intended to be a resource for end users beyond peace of mind.

The Natural History Museum is committed to ensuring continued support (both hardware resource and developers) for the Scratchpads project to ensure the longevity of this, and all other Scratchpad instances.

Code repositories

The modifications to the Scratchpads code made by the BioAcoustica project are available in the Scratchpads repository. The code is separated into wildsound Drupal module, located at /sites/all/modules/custom/wildsound. All code listed in the repositories below is available under open licences, please see individual repositories for any restrictions as well as installation instructions.

(Changes by Baker and Rycroft to this module are available in the Scratchpads repository.). The Drupal/Scratchpads code requires a webserver running Apache, PHP and MySQL. Analysis will only be possible if your webserver is allowed access to the BioVeL portal, controlled by the BioVeL project.

Data sharing

In order to maximise the potential use and reuse of recordings held by BioAcoustica, recordings and metadata are (where licences allow) shared with the EoL ( 20 ) through the DarwinCore Archive export facility of Scratchpads ( 21 ). DarwinCore Archives are a widely used format for exchanging machine and human readable biodiversity datasets based on the Darwin Core standard ( 12 ).

Metadata and files where the copyright belongs to the Natural History Museum, London are made available through the NHM Data Portal ( http://data.nhm.ac.uk/dataset/bioacoustica ) through the same DarwinCore Archive.

The DarwinCore Archive format also allows the sharing of occurrence records with GBIF and DarwinCore Archive compatible mapping services such as CartoDB ( http://cartodb.com ).

Using and contributing to BioAcoustica

You do not need to register to view content on BioAcoustica. To create annotations and run analyses on the platform you will need to register for an account at http://bio.acousti.ca/user . No special permissions are needed for these tasks. If you wish to contribute to BioAcoustica a site administrator will need to grant you permission to do so, instructions on this process, as well as general instructions for using the service, can be found at http://bio.acousti.ca/help .

Acknowledgements

Robert Haines (University of Manchester) and Francisco Quevedo (University of Cardiff) provided support and assistance in integrating BioVeL workflows into BioAcoustica.

Funding

Funding for the development of BioAcoustica was provided through the Life Sciences Departmental Investment Fund [SDF 14011] of the Natural History Museum, London and the project uses infrastructure developed by the EU funded projects ViBRANT [RI-261532] and BioVeL [RI-283359]. Supertree Toolkit development is partly funded by BBSRC grant [BB/K006754/1]. Funding for open access charge: Department of Life Sciences, Natural History Museum, London.

Conflict of interest . None declared.

References

1

Ragge
D.R.
Reynolds
W.J.
(
1988
)
The songs and taxonomy of the grasshoppers of the Chorthippus biguttulus group in the Iberian Peninsula (Orthoptera: Acrididae)
.
J. Nat. Hist .
,
22
,
897
929
.

2

Guarnizo
C.E.
Escallón
C.
Cannatella
D.
et al.  . (
2012
)
Congruence between acoustic traits and genealogical history reveals a new species of Dendropsophus (Anura: Hylidae) in the High Andes of Colombia
.
Herpetologica
,
68
,
523
540
.

3

Jung
K.
Molinari
J.
Kalko
E.K.V.
(
2014
)
Driving factors for the evolution of species-specific echolocation call design in new world free-tailed bats (Molossidae)
.
PLoS One
,
9
,
e85279
.

4

Butlin
R.K.
Hewitt
G.M.
(
1985
)
A hybrid zone between Chorthippus parallelus parallelus and Chorthippus parallelus erythropus (Orthoptera: Acrididae): behavioural characters
.
Biol. J. Linn. Soc.
,
26
,
287
299
.

5

Fouquet
A.
Cassini
C.S.
Haddad
C.F.H.
et al.  . (
2014
)
Species delimitation, patterns of diversification and historical biogeography of the Neotropical frog genus Adenomera (Anura, Leptodactylidae)
.
J. Biogeogr
.
41
,
855
870
.

6

Habel
J.C.
Ulrich
W.
Peters
G.
et al.  . (
2014
)
Lowland panmixia versus highland disjunction: genetic and bioacoustic differentiation in two species of East African White-eye birds
.
Conserv.Genet.
,
15
,
655
664
.

7

Aide
T.M.
Corrada-Bravo
C.
Campos-Cerqueira
M.
et al.  . (
2013
)
Real-time bioacoustics monitoring and automated species identification
.
PeerJ
,
1
:
e103
.

8

Dietrich
C.
Palm
G.
Riede
K.
et al.  . (
2004
)
Classification of bioacoustic time series based on the combination of global and local decisions
.
Pattern Recogn.
,
37
,
2293
2305
.

9

Harma
A.
(
2003
)
Automatic identification of bird species based on sinusoidal modeling of syllables
. In:
Acoustics, Speech and Signal Processing
,
Vol. 5
. .

10

Cugler
D.C.
Medeiros
C.B.
Toledo
L.F.
(
2012
)
An architecture for retrieval of animal sound recordings based on context variables
.
Concurr. Comput. Pract. Exp.
,
25
,
2310
2326
.

11

Smith
V.S.
Rycroft
S.D.
Scott
B.
et al.  . (
2011
)
Scratchpads 2.0: a virtual research environment supporting scholarly collaboration, communication and data publication in biodiversity science
.
ZooKeys
,
150
,
53
70
.

12

Wieczorek
J.
Bloom
D.
Guralnick
R.
et al.  . (
2012
)
Darwin core: an evolving community-developed biodiversity data standard
.
PLoS One
,
7
,
e29715
.

13

Price
B.W.
Barker
N.P.
Villet
M.H.
(
2007
)
Patterns and processes underlying evolutionary significant units in the Platypleura stridula L. species complex (Hemiptera: Cicadidae) in the Cape Floristic Region, South Africa
.
Mol. Ecol.
,
16
,
2574
2588
.

14

Vicario
S.
Hardisty
A.
Haitas
N.
(
2011
)
BioVeL: Biodiversity Virtual e-Laboratory
.
EMBnet J.
,
17
,
5
.

15

Sueur
J.
Aubin
T.
Simonis
C.
(
2008
)
Seewave, a free modular tool for sound analysis and synthesis
.
Bioacoustics
,
18
.

16

R Core Team
(
2014
)
R: A Language and Environment for Statistical Computing
.
R Foundation for Statistical Computing, Vienna, Austria. http://www.R-project.org/ (17 December 2014, date last accessed)
.

17

Wolstencroft
K.
Haines
R.
Fellows
D.
et al.  . (
2013
)
The Taverna workflow suite: designing and executing workflows of Web Services on the desktop, web or in the cloud
.
Nucleic Acids Res
41 (W1): W557-W561
.

18

Haines
R.
Rycroft
S.D.
Smith
V.
et al.  . (
2014
)
Integrating Taverna Player into Scratchpads
.
ZENODO
.
http://zenodo.org/record/10871 (15th January 2015, date last accessed).

19

Hill
J.
Davis
K.
, (
2014
)
The Supertree Toolkit 2: a new and improved software package with a graphical user interface for supertree construction
.
Biodivers. Data J.
,
2
,
e1053
.

20

Parr
C.
Wilson
N.
Leary
P.
et al.  . (
2014
)
The Encyclopedia of Life v2: providing global access to knowledge about life on earth
.
Biodivers. Data J.
,
2
,
e1079
.

21

Baker
E.
Rycroft
S.
Smith
V.
(
2014
)
Linking multiple biodiversity informatics platforms with Darwin Core Archives
.
Biodivers. Data J.
,
2
,
e1039
.

Author notes

Citation details: Baker,E., Price,B.W., Rycroft,S.D., et al . BioAcoustica: a free and open repository and analysis platform for bioacoustics. Database (2015) Vol. 2015: article ID bav054; doi:10.1093/database/bav054

This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted reuse, distribution, and reproduction in any medium, provided the original work is properly cited.
