Abstract

Next-generation sequencing is increasing our understanding and knowledge of non-coding RNAs (ncRNAs), elucidating their roles in molecular mechanisms and processes such as cell growth and development. Within such a class, tRNA-derived ncRNAs have been recently associated with gene expression regulation in cancer progression. In this paper, we characterize, for the first time, tRNA-derived ncRNAs in NCI-60. Furthermore, we assess their expression profile in The Cancer Genome Atlas (TCGA). Our comprehensive analysis allowed us to report 322 distinct tRNA-derived ncRNAs in NCI-60, categorized in tRNA-derived fragments (11 tRF-5s, 55 tRF-3s), tRNA-derived small RNAs (107 tsRNAs) and tRNA 5′ leader RNAs (149 sequences identified). In TCGA, we were able to identify 232 distinct tRNA-derived ncRNAs categorized in 53 tRF-5s, 58 tRF-3s, 63 tsRNAs and 58 5′ leader RNAs. This latter group represents an additional evidence of tRNA-derived ncRNAs originating from the 5′ leader region of precursor tRNA. We developed a public database, tRFexplorer, which provides users with the expression profile of each tRNA-derived ncRNAs in every cell line in NCI-60 as well as for each TCGA tumor type. Moreover, the system allows us to perform differential expression analyses of such fragments in TCGA, as well as correlation analyses of tRNA-derived ncRNAs expression in TCGA and NCI-60 with gene and miRNA expression in TCGA samples, in association with all omics and compound activities data available on CellMiner. Hence, the tool provides an important opportunity to investigate their potential biological roles in absence of any direct experimental evidence.

Database URL: https://trfexplorer.cloud/

Introduction

With the advent of next-generation sequencing technologies, the number of characterized ncRNA classes in eukaryotic cells has dramatically increased (1–3). Recently, tRNA-derived non-coding RNAs (ncRNAs), a novel heterogeneous class of ncRNAs originating from tRNA processing, have been characterized. Indeed, it has been shown that tRNA-derived ncRNAs are not mere byproducts of random tRNA cleavage, rather they may actively play roles in several biological phenomena, such as ribosome biogenesis, retrotransposition, virus infections, apoptosis and cancer pathogenesis (4–13). Furthermore, some classes of tRNA-derived ncRNAs have been shown to bind AGO and PIWI proteins, potentially acting as post- or pre-transcriptional regulators of gene expression (9, 14).

Accumulating evidence also suggests the presence of functional tRNA-derived ncRNAs in human biological fluids, such as urine and serum from cancer patients (15–19).

tRNA biogenesis begins with the transcription of tRNA genes by RNA polymerase III leading to ‘precursor tRNA’ (pre-tRNA). Such molecules undergo a maturation process inside the nucleus, where 5′ leader and 3′ trailer sequences are cleaved by ribonuclease P (RNase P) and ribonuclease Z (RNase Z), respectively (15, 20–25). In the last few years, several kinds of tRNA-derived ncRNAs have been discovered. However, a unique classification is still missing. A common grouping of such molecules is based on the location they originate from within the tRNA gene. tRNA-derived ncRNAs can, therefore, be divided into two main classes: (i) tsRNAs, which derive from pre-tRNA and (ii) stress-induced tRNA fragments (tiRNAs), together with tRFs, which derive from mature tRNA (13).

tsRNA are produced inside the nucleus and result from the cleavage of the pre-tRNAs 3′ trailer sequence by RNases Z. They usually begin after the 3′-end of mature tRNAs and are characterized by a polyuracil sequence at their 3′-ends (13).

tiRNAs, which have a length of ~28–36 nt, are produced in the cytoplasm via specific cleavage of the anticodon loop of mature tRNAs by Rny1p and angiogenin (ANG) in yeast and mammalians cells, respectively (15, 26, 27). This class is comprised of 5’-tiRNA and 3’-tiRNA, in reference to the 5′ or 3′ half of the mature tRNA they derive from, respectively (15).

tRFs, ranging from 14 to 30 nt in length, are derived from mature tRNA (15, 23, 28). Three types of tRFs have been discovered to date: (i) tRF-5s; (ii) tRF-3s; and (iii) i-tRFs (29, 30). tRF-5s are generated in the cytoplasm by Dicer-mediated cleavage of the mature tRNA D-loop (29, 31). tRF-3s are produced in the cytoplasm via cleavage of the T-loop in mature tRNAs operated by Dicer, ANG and other members of the RNase A superfamily. They are fragments originating from mature tRNA 3′-ends, and include the final CCA sequence (28, 29, 32). Finally, i-tRFs are enriched within the internal regions of mature tRNAs, usually straddling the anticodon region (29, 33). It is important to highlight that in literature and in some databases, tsRNAs (which derive from 3′ trailer sequence of pre-tRNAs) are also termed tRF-1s (30, 34, 35).

Additionally, a recently investigated group of tRFs, namely 5′ leader-exon tRFs, has been described in a study associating them with the loss of spinal motor neurons in CLP1-kinase dead mice (36). These fragments span from the beginning of the 5′ end of pre-tRNAs to the 5′ end of mature tRNAs and are produced inside the nucleus. However, their biogenesis and function remain still unknown, and consequently, this class has not currently been completely characterized (36).

Our study aims at the identification of tRNA-derived ncRNAs in the National Cancer Institute 60 (NCI-60) cell lines and The Cancer Genome Atlas (TCGA) samples. This has been done through the development of a custom bioinformatics pipeline for the identification of tsRNAs (also termed tRF-1), tRFs (tRF-5s and tRF-3s) and 5′ leader RNAs in small non-coding RNA-seq (sncRNA-seq data).

NCI-60 is a panel of 60 human cancer cell lines derived from nine different cancer types (leukemia, colon, lung, central nervous system, renal, melanoma, ovarian, breast and prostate) (37–39), while TCGA is a collection of samples covering 33 different tumor types with more than 11 000 cancer patients.

We collected all the profiling results in an intuitive, publicly available database, tRFexplorer (https://trfexplorer.cloud/). Our database allows users to search for tRNA-derived ncRNAs, visualize their expression profiles in both NCI-60 cell lines and TCGA patient cohorts, apply differential expression (DE) analysis on TCGA samples and correlate tRNA-derived ncRNA expression profiles with several covariates, such as NCI-60 omics data, TCGA mRNA and miRNA expressions, and TCGA patients survival data, in order to better aid in the identification of mechanisms in which such molecules might be involved in.

Material and methods

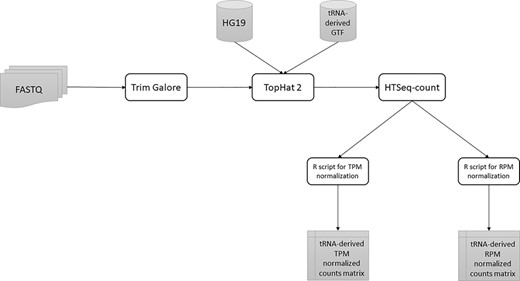

tRNA-derived ncRNAs identification pipeline

The identification of tsRNAs, 5′ leader RNAs and tRFs in sncRNA-seq datasets is a complex process, since such small fragments may be mapped to multiple DNA regions. For this purpose, we implemented a conservative pipeline to get an accurate estimation of tsRNAs, 5′ leader RNAs and tRF expression. First, we assembled a custom annotation of the reference human genome (hg19) containing only known tsRNAs and tRFs. We included all tRF-5s, tRF-3s and tRF-1s from tRFdb (http://genome.bioch.virginia.edu/trfdb/) (34), all tsRNA identified by (8) and the 20-nt upstream region of tRNA human genes for the 5′ leader RNAs. Human tRNA genes were taken from GtRNAdb (http://gtrnadb.ucsc.edu/) (40). Subsequently, we examined sncRNA-seq datasets of NCI-60 cell lines as provided by the sequence read archive (SRA) (PRJNA390643) (39), as well as sncRNA-seq datasets on TCGA. In Table 1, we provide a list of NCI-60 cell lines and the SRA datasets, while in Table 2, it lists the analyzed TCGA cancer types with their relative numbers of tumor and control samples. Raw FASTQ files were pre-processed for adaptor removal and quality filtering by applying Trim Galore (https://www.bioinformatics.babraham.ac.uk/projects/trim_galore/) tuned for sncRNA-seq (Phred quality score ≥20). Trim Galore is a wrapper for Cutadapt (41) and FastQC (http://www.bioinformatics.babraham.ac.uk/projects/fastqc/), which is used as a consistent method to apply quality filtering and adaptor trimming. Filtered FASTQ files were then aligned to a reference human genome (hg19) using TopHat version 2.1.0 (42) as well as to our custom annotation file. Read quantification has been performed with HTSeq version 0.10.0 (43). In this phase, all ambiguously mapped reads were removed for a more accurate and conservative analysis. Data analysis was performed with R version 3.5.1. Raw counts were normalized with two different normalization methods: transcripts per million mapped reads (TPM) (44) and reads per million mapped reads (RPM) (45).
Table 1

List of NCI-60 cell lines tested and the relative SRA dataset

Cell lineType of cancerSRA dataset
T-47DBREASTSRR5689215
MCF-7BREASTSRR5689213
MDA-MB-231BREASTSRR5689212
BT-549BREASTSRR5689211
HS-578TBREASTSRR5689210
SF-295CNSSRR5689217
SF-268CNSSRR5689216
SF-539CNSSRR5689214
U251CNSSRR5689209
SNB-75CNSSRR5689208
SNB-19CNSSRR5689175
HCT-116COLONSRR5689179
HT-29COLONSRR5689178
KM12COLONSRR5689177
SW-620COLONSRR5689176
COLO 205COLONSRR5689174
HCT-15COLONSRR5689173
HCC2998COLONSRR5689172
MOLT-4LEUKEMIASRR5689193
K-562LEUKEMIASRR5689192
SRLEUKEMIASRR5689191
RPMI 8226LEUKEMIASRR5689190
CCRF-CEMLEUKEMIASRR5689183
HL-60(TB)LEUKEMIASRR5689182
LOX-IMVIMELANOMASRR5689197
MALME-3MMELANOMASRR5689196
MDA-MB-435MELANOMASRR5689195
M14MELANOMASRR5689194
SK-MEL-5MELANOMASRR5689189
SK-MEL-28MELANOMASRR5689188
UACC-62MELANOMASRR5689167
UACC-257MELANOMASRR5689164
SK-MEL-2MELANOMASRR5689165
NCI-H522NSCLCSRR5689201
NCI-H460NSCLCSRR5689200
HOP 62NSCLCSRR5689171
NCI-H23NSCLCSRR5689170
EKVXNSCLCSRR5689169
HOP 92NSCLCSRR5689168
A549NSCLCSRR5689166
NCI-H322MNSCLCSRR5689163
NCI-H226NSCLCSRR5689162
OVCAR-5OVARIANSRR5689207
OVCAR-4OVARIANSRR5689206
OVCAR-8OVARIANSRR5689205
OVCAR-3OVARIANSRR5689204
NCI/ADR-RESOVARIANSRR5689203
IGR-OV1OVARIANSRR5689202
SK-OV-3OVARIANSRR5689198
DU-145PROSTATESRR5689199
PC-3PROSTATESRR5689187
A498RENALSRR5689186
CAKI-1RENALSRR5689185
786-0RENALSRR5689184
SN12CRENALSRR5689181
TK-10RENALSRR5689180
UO-31RENALSRR5689161
ACHNRENALSRR5689160
RXF393RENALSRR5689159
Cell lineType of cancerSRA dataset
T-47DBREASTSRR5689215
MCF-7BREASTSRR5689213
MDA-MB-231BREASTSRR5689212
BT-549BREASTSRR5689211
HS-578TBREASTSRR5689210
SF-295CNSSRR5689217
SF-268CNSSRR5689216
SF-539CNSSRR5689214
U251CNSSRR5689209
SNB-75CNSSRR5689208
SNB-19CNSSRR5689175
HCT-116COLONSRR5689179
HT-29COLONSRR5689178
KM12COLONSRR5689177
SW-620COLONSRR5689176
COLO 205COLONSRR5689174
HCT-15COLONSRR5689173
HCC2998COLONSRR5689172
MOLT-4LEUKEMIASRR5689193
K-562LEUKEMIASRR5689192
SRLEUKEMIASRR5689191
RPMI 8226LEUKEMIASRR5689190
CCRF-CEMLEUKEMIASRR5689183
HL-60(TB)LEUKEMIASRR5689182
LOX-IMVIMELANOMASRR5689197
MALME-3MMELANOMASRR5689196
MDA-MB-435MELANOMASRR5689195
M14MELANOMASRR5689194
SK-MEL-5MELANOMASRR5689189
SK-MEL-28MELANOMASRR5689188
UACC-62MELANOMASRR5689167
UACC-257MELANOMASRR5689164
SK-MEL-2MELANOMASRR5689165
NCI-H522NSCLCSRR5689201
NCI-H460NSCLCSRR5689200
HOP 62NSCLCSRR5689171
NCI-H23NSCLCSRR5689170
EKVXNSCLCSRR5689169
HOP 92NSCLCSRR5689168
A549NSCLCSRR5689166
NCI-H322MNSCLCSRR5689163
NCI-H226NSCLCSRR5689162
OVCAR-5OVARIANSRR5689207
OVCAR-4OVARIANSRR5689206
OVCAR-8OVARIANSRR5689205
OVCAR-3OVARIANSRR5689204
NCI/ADR-RESOVARIANSRR5689203
IGR-OV1OVARIANSRR5689202
SK-OV-3OVARIANSRR5689198
DU-145PROSTATESRR5689199
PC-3PROSTATESRR5689187
A498RENALSRR5689186
CAKI-1RENALSRR5689185
786-0RENALSRR5689184
SN12CRENALSRR5689181
TK-10RENALSRR5689180
UO-31RENALSRR5689161
ACHNRENALSRR5689160
RXF393RENALSRR5689159
Table 1

List of NCI-60 cell lines tested and the relative SRA dataset

Cell lineType of cancerSRA dataset
T-47DBREASTSRR5689215
MCF-7BREASTSRR5689213
MDA-MB-231BREASTSRR5689212
BT-549BREASTSRR5689211
HS-578TBREASTSRR5689210
SF-295CNSSRR5689217
SF-268CNSSRR5689216
SF-539CNSSRR5689214
U251CNSSRR5689209
SNB-75CNSSRR5689208
SNB-19CNSSRR5689175
HCT-116COLONSRR5689179
HT-29COLONSRR5689178
KM12COLONSRR5689177
SW-620COLONSRR5689176
COLO 205COLONSRR5689174
HCT-15COLONSRR5689173
HCC2998COLONSRR5689172
MOLT-4LEUKEMIASRR5689193
K-562LEUKEMIASRR5689192
SRLEUKEMIASRR5689191
RPMI 8226LEUKEMIASRR5689190
CCRF-CEMLEUKEMIASRR5689183
HL-60(TB)LEUKEMIASRR5689182
LOX-IMVIMELANOMASRR5689197
MALME-3MMELANOMASRR5689196
MDA-MB-435MELANOMASRR5689195
M14MELANOMASRR5689194
SK-MEL-5MELANOMASRR5689189
SK-MEL-28MELANOMASRR5689188
UACC-62MELANOMASRR5689167
UACC-257MELANOMASRR5689164
SK-MEL-2MELANOMASRR5689165
NCI-H522NSCLCSRR5689201
NCI-H460NSCLCSRR5689200
HOP 62NSCLCSRR5689171
NCI-H23NSCLCSRR5689170
EKVXNSCLCSRR5689169
HOP 92NSCLCSRR5689168
A549NSCLCSRR5689166
NCI-H322MNSCLCSRR5689163
NCI-H226NSCLCSRR5689162
OVCAR-5OVARIANSRR5689207
OVCAR-4OVARIANSRR5689206
OVCAR-8OVARIANSRR5689205
OVCAR-3OVARIANSRR5689204
NCI/ADR-RESOVARIANSRR5689203
IGR-OV1OVARIANSRR5689202
SK-OV-3OVARIANSRR5689198
DU-145PROSTATESRR5689199
PC-3PROSTATESRR5689187
A498RENALSRR5689186
CAKI-1RENALSRR5689185
786-0RENALSRR5689184
SN12CRENALSRR5689181
TK-10RENALSRR5689180
UO-31RENALSRR5689161
ACHNRENALSRR5689160
RXF393RENALSRR5689159
Cell lineType of cancerSRA dataset
T-47DBREASTSRR5689215
MCF-7BREASTSRR5689213
MDA-MB-231BREASTSRR5689212
BT-549BREASTSRR5689211
HS-578TBREASTSRR5689210
SF-295CNSSRR5689217
SF-268CNSSRR5689216
SF-539CNSSRR5689214
U251CNSSRR5689209
SNB-75CNSSRR5689208
SNB-19CNSSRR5689175
HCT-116COLONSRR5689179
HT-29COLONSRR5689178
KM12COLONSRR5689177
SW-620COLONSRR5689176
COLO 205COLONSRR5689174
HCT-15COLONSRR5689173
HCC2998COLONSRR5689172
MOLT-4LEUKEMIASRR5689193
K-562LEUKEMIASRR5689192
SRLEUKEMIASRR5689191
RPMI 8226LEUKEMIASRR5689190
CCRF-CEMLEUKEMIASRR5689183
HL-60(TB)LEUKEMIASRR5689182
LOX-IMVIMELANOMASRR5689197
MALME-3MMELANOMASRR5689196
MDA-MB-435MELANOMASRR5689195
M14MELANOMASRR5689194
SK-MEL-5MELANOMASRR5689189
SK-MEL-28MELANOMASRR5689188
UACC-62MELANOMASRR5689167
UACC-257MELANOMASRR5689164
SK-MEL-2MELANOMASRR5689165
NCI-H522NSCLCSRR5689201
NCI-H460NSCLCSRR5689200
HOP 62NSCLCSRR5689171
NCI-H23NSCLCSRR5689170
EKVXNSCLCSRR5689169
HOP 92NSCLCSRR5689168
A549NSCLCSRR5689166
NCI-H322MNSCLCSRR5689163
NCI-H226NSCLCSRR5689162
OVCAR-5OVARIANSRR5689207
OVCAR-4OVARIANSRR5689206
OVCAR-8OVARIANSRR5689205
OVCAR-3OVARIANSRR5689204
NCI/ADR-RESOVARIANSRR5689203
IGR-OV1OVARIANSRR5689202
SK-OV-3OVARIANSRR5689198
DU-145PROSTATESRR5689199
PC-3PROSTATESRR5689187
A498RENALSRR5689186
CAKI-1RENALSRR5689185
786-0RENALSRR5689184
SN12CRENALSRR5689181
TK-10RENALSRR5689180
UO-31RENALSRR5689161
ACHNRENALSRR5689160
RXF393RENALSRR5689159
Table 2

List of analyzed TCGA cancer types with their relative numbers of tumor and control samples

Tumor typeTumor nameTumor samplesControl samples
ACCAdrenocortical carcinoma79
BLCABladder urothelial carcinoma40819
BRCABreast invasive carcinoma1101113
CESCCervical squamous cell carcinoma and endocervical adenocarcinoma3063
CHOLCholangiocarcinoma369
COADColon adenocarcinoma45941
DLBCLymphoid neoplasm diffuse large B-cell lymphoma48
ESCAEsophageal carcinoma18511
GBMGlioblastoma multiforme167
HNSCHead and neck squamous cell carcinoma52244
KICHKidney chromophobe6625
KIRCKidney renal clear cell carcinoma53472
KIRPKidney renal papillary cell carcinoma29132
LAMLAcute myeloid leukemia173
LGGBrain lower grade glioma533
LIHCLiver hepatocellular carcinoma37450
LUADLung adenocarcinoma51759
LUSCLung squamous cell carcinoma50151
MESOMesothelioma87
OVOvarian serous cystadenocarcinoma309
PAADPancreatic adenocarcinoma1794
PCPGPheochromocytoma and paraganglioma1843
PRADProstate adenocarcinoma49852
READRectum adenocarcinoma16610
SARCSarcoma2632
SKCMSkin cutaneous melanoma4721
STADStomach adenocarcinoma41435
TGCTTesticular germ cell tumors139
THCAThyroid carcinoma51359
THYMThymoma1202
UCECUterine corpus endometrial carcinoma54623
UCSUterine carcinosarcoma57
UVMUveal melanoma80
10 327720
Tumor typeTumor nameTumor samplesControl samples
ACCAdrenocortical carcinoma79
BLCABladder urothelial carcinoma40819
BRCABreast invasive carcinoma1101113
CESCCervical squamous cell carcinoma and endocervical adenocarcinoma3063
CHOLCholangiocarcinoma369
COADColon adenocarcinoma45941
DLBCLymphoid neoplasm diffuse large B-cell lymphoma48
ESCAEsophageal carcinoma18511
GBMGlioblastoma multiforme167
HNSCHead and neck squamous cell carcinoma52244
KICHKidney chromophobe6625
KIRCKidney renal clear cell carcinoma53472
KIRPKidney renal papillary cell carcinoma29132
LAMLAcute myeloid leukemia173
LGGBrain lower grade glioma533
LIHCLiver hepatocellular carcinoma37450
LUADLung adenocarcinoma51759
LUSCLung squamous cell carcinoma50151
MESOMesothelioma87
OVOvarian serous cystadenocarcinoma309
PAADPancreatic adenocarcinoma1794
PCPGPheochromocytoma and paraganglioma1843
PRADProstate adenocarcinoma49852
READRectum adenocarcinoma16610
SARCSarcoma2632
SKCMSkin cutaneous melanoma4721
STADStomach adenocarcinoma41435
TGCTTesticular germ cell tumors139
THCAThyroid carcinoma51359
THYMThymoma1202
UCECUterine corpus endometrial carcinoma54623
UCSUterine carcinosarcoma57
UVMUveal melanoma80
10 327720
Table 2

List of analyzed TCGA cancer types with their relative numbers of tumor and control samples

Tumor typeTumor nameTumor samplesControl samples
ACCAdrenocortical carcinoma79
BLCABladder urothelial carcinoma40819
BRCABreast invasive carcinoma1101113
CESCCervical squamous cell carcinoma and endocervical adenocarcinoma3063
CHOLCholangiocarcinoma369
COADColon adenocarcinoma45941
DLBCLymphoid neoplasm diffuse large B-cell lymphoma48
ESCAEsophageal carcinoma18511
GBMGlioblastoma multiforme167
HNSCHead and neck squamous cell carcinoma52244
KICHKidney chromophobe6625
KIRCKidney renal clear cell carcinoma53472
KIRPKidney renal papillary cell carcinoma29132
LAMLAcute myeloid leukemia173
LGGBrain lower grade glioma533
LIHCLiver hepatocellular carcinoma37450
LUADLung adenocarcinoma51759
LUSCLung squamous cell carcinoma50151
MESOMesothelioma87
OVOvarian serous cystadenocarcinoma309
PAADPancreatic adenocarcinoma1794
PCPGPheochromocytoma and paraganglioma1843
PRADProstate adenocarcinoma49852
READRectum adenocarcinoma16610
SARCSarcoma2632
SKCMSkin cutaneous melanoma4721
STADStomach adenocarcinoma41435
TGCTTesticular germ cell tumors139
THCAThyroid carcinoma51359
THYMThymoma1202
UCECUterine corpus endometrial carcinoma54623
UCSUterine carcinosarcoma57
UVMUveal melanoma80
10 327720
Tumor typeTumor nameTumor samplesControl samples
ACCAdrenocortical carcinoma79
BLCABladder urothelial carcinoma40819
BRCABreast invasive carcinoma1101113
CESCCervical squamous cell carcinoma and endocervical adenocarcinoma3063
CHOLCholangiocarcinoma369
COADColon adenocarcinoma45941
DLBCLymphoid neoplasm diffuse large B-cell lymphoma48
ESCAEsophageal carcinoma18511
GBMGlioblastoma multiforme167
HNSCHead and neck squamous cell carcinoma52244
KICHKidney chromophobe6625
KIRCKidney renal clear cell carcinoma53472
KIRPKidney renal papillary cell carcinoma29132
LAMLAcute myeloid leukemia173
LGGBrain lower grade glioma533
LIHCLiver hepatocellular carcinoma37450
LUADLung adenocarcinoma51759
LUSCLung squamous cell carcinoma50151
MESOMesothelioma87
OVOvarian serous cystadenocarcinoma309
PAADPancreatic adenocarcinoma1794
PCPGPheochromocytoma and paraganglioma1843
PRADProstate adenocarcinoma49852
READRectum adenocarcinoma16610
SARCSarcoma2632
SKCMSkin cutaneous melanoma4721
STADStomach adenocarcinoma41435
TGCTTesticular germ cell tumors139
THCAThyroid carcinoma51359
THYMThymoma1202
UCECUterine corpus endometrial carcinoma54623
UCSUterine carcinosarcoma57
UVMUveal melanoma80
10 327720

All tsRNAs, 5′ leader RNAs and tRFs with average log2 TPM less than 1 were removed. A summary of our full pipeline is shown in Figure 1.

A summary of the tRNA-derived ncRNAs identification pipeline from RAW FASTQ files to normalized counts matrix.
Figure 1

A summary of the tRNA-derived ncRNAs identification pipeline from RAW FASTQ files to normalized counts matrix.

Implementation of tRFexplorer

All identified tsRNAs, 5′ leader RNAs and tRFs with their expression profiles have been integrated in a novel database named tRFexplorer. tRFexplorer enables users to visualize the expression profile of each tRNA-derived ncRNA in both NCI-60 cell lines and TCGA samples (33 cancer types). Furthermore, it uses the R package limma (46) to perform DE analysis on TCGA data. Interactive visualization of its results has been implemented through the R package Glimma (47). Our database allows users to conduct correlation analysis of tRNA-derived ncRNAs expression in NCI-60 with all data available on CellMiner (48, 49). Correlation analysis with genes and miRNA expression profiles, as well as patient survival, of TCGA samples has also been implemented.

tRFexplorer was developed by employing PHP and R for its backend, and Javascript and React for the main user interface. All omics data and compound activities used for the correlation analysis were obtained from CellMiner (48, 49). In Table 3, we list all CellMiner datasets.

Table 3

A list of CellMiner datasets with their description

CellMiner datasetDescription
DNA CNV-Roche NibleGen 385 K aCGH385 K element tiling array based on NCBI Build 35 of the human genome (HG17) and re-mapped to NCBI Build 35 (HG19); 50-mer tiling with a median probe spacing of 6000 bp.
DNA CNV-combined aCGHProbe intensities combined from four platforms: agilent human genome CGH Microarray 44A, Nimblegen HG19 CGH 385 K WG Tiling v2.0, Affymetrix GeneChip human mapping 500 k array set and Illumina Human1Mv1_C Beadchip
DNA single nucleotide polymorphism (SNP) per gene-Affy 500 KThis platform is used for whole-genome association studies. It is comprised of two arrays which enable genotyping of more than 500 000 SNPs.
DNA SNP per gene-Illumina 1 M SNPBeadChip array based on Illumina’s infinium assay with probes for 1 072 820 SNPs
DNA methylation-Illumina 450 KApproximately 450 000 probes querying the methylation status of CpG sites within and outside of genes.
RNA Affy HG-U133_ABHuman genome U133. 44 000 probeset 2-chip set. Gene expression.
RNA Affy HG-U133 Plus 2.0Aproximately 47 000 transcripts
RNA Affy HuEx 1.01 432 155 probesets for all human gene exons
RNA agilent human mRNAs44 000 probes for approximately 41 000 genes, with four arrays spotted on each slide.
RNA expression combined z-scoresGene expressions
RNA agilent human miRNAs15 000 probes for 723 human and 76 human viral miRNA’s. Each slide contains eight arrays.
RNA microRNA OSU V3 ChipCustom microarray developed at Microarray Shared Resource Comprehensive Cancer Center, OSU microarray facility. It contains 11 k probes (two technical replicates) for murin and human microRNAs together with hypothetical microRNAs and control probes.
RNA ABC transporters array47 specific oligonucleotide probes were designed for each of the ABC transporters using DNAStar Primer Select. Expression levels were measured by real-time quantitative RT-PCR using the LightCycler RNA Amplification SYBR Green kit and a LightCycler machine.
RNA OSU transporter arraySpotted 70-mer microarray
Protein lysate arrayReverse-phase lysate arrays (RPLA) for 162 antibodies for 94 genes. Each array included 64 lysates (60 cancer cells and 4 replicate control pools) in 10 serial 2-fold dilutions.
Compound activitiesNegative log10 (GI50) values of sulforhodamine B assay for ~ 50 K compounds, including more than 20 000 that passed quality control, 158 Food and Drug Administration approved and 79 clinical trial drugs. Higher values equate to higher sensitivity of cell lines.
CellMiner datasetDescription
DNA CNV-Roche NibleGen 385 K aCGH385 K element tiling array based on NCBI Build 35 of the human genome (HG17) and re-mapped to NCBI Build 35 (HG19); 50-mer tiling with a median probe spacing of 6000 bp.
DNA CNV-combined aCGHProbe intensities combined from four platforms: agilent human genome CGH Microarray 44A, Nimblegen HG19 CGH 385 K WG Tiling v2.0, Affymetrix GeneChip human mapping 500 k array set and Illumina Human1Mv1_C Beadchip
DNA single nucleotide polymorphism (SNP) per gene-Affy 500 KThis platform is used for whole-genome association studies. It is comprised of two arrays which enable genotyping of more than 500 000 SNPs.
DNA SNP per gene-Illumina 1 M SNPBeadChip array based on Illumina’s infinium assay with probes for 1 072 820 SNPs
DNA methylation-Illumina 450 KApproximately 450 000 probes querying the methylation status of CpG sites within and outside of genes.
RNA Affy HG-U133_ABHuman genome U133. 44 000 probeset 2-chip set. Gene expression.
RNA Affy HG-U133 Plus 2.0Aproximately 47 000 transcripts
RNA Affy HuEx 1.01 432 155 probesets for all human gene exons
RNA agilent human mRNAs44 000 probes for approximately 41 000 genes, with four arrays spotted on each slide.
RNA expression combined z-scoresGene expressions
RNA agilent human miRNAs15 000 probes for 723 human and 76 human viral miRNA’s. Each slide contains eight arrays.
RNA microRNA OSU V3 ChipCustom microarray developed at Microarray Shared Resource Comprehensive Cancer Center, OSU microarray facility. It contains 11 k probes (two technical replicates) for murin and human microRNAs together with hypothetical microRNAs and control probes.
RNA ABC transporters array47 specific oligonucleotide probes were designed for each of the ABC transporters using DNAStar Primer Select. Expression levels were measured by real-time quantitative RT-PCR using the LightCycler RNA Amplification SYBR Green kit and a LightCycler machine.
RNA OSU transporter arraySpotted 70-mer microarray
Protein lysate arrayReverse-phase lysate arrays (RPLA) for 162 antibodies for 94 genes. Each array included 64 lysates (60 cancer cells and 4 replicate control pools) in 10 serial 2-fold dilutions.
Compound activitiesNegative log10 (GI50) values of sulforhodamine B assay for ~ 50 K compounds, including more than 20 000 that passed quality control, 158 Food and Drug Administration approved and 79 clinical trial drugs. Higher values equate to higher sensitivity of cell lines.
Table 3

A list of CellMiner datasets with their description

CellMiner datasetDescription
DNA CNV-Roche NibleGen 385 K aCGH385 K element tiling array based on NCBI Build 35 of the human genome (HG17) and re-mapped to NCBI Build 35 (HG19); 50-mer tiling with a median probe spacing of 6000 bp.
DNA CNV-combined aCGHProbe intensities combined from four platforms: agilent human genome CGH Microarray 44A, Nimblegen HG19 CGH 385 K WG Tiling v2.0, Affymetrix GeneChip human mapping 500 k array set and Illumina Human1Mv1_C Beadchip
DNA single nucleotide polymorphism (SNP) per gene-Affy 500 KThis platform is used for whole-genome association studies. It is comprised of two arrays which enable genotyping of more than 500 000 SNPs.
DNA SNP per gene-Illumina 1 M SNPBeadChip array based on Illumina’s infinium assay with probes for 1 072 820 SNPs
DNA methylation-Illumina 450 KApproximately 450 000 probes querying the methylation status of CpG sites within and outside of genes.
RNA Affy HG-U133_ABHuman genome U133. 44 000 probeset 2-chip set. Gene expression.
RNA Affy HG-U133 Plus 2.0Aproximately 47 000 transcripts
RNA Affy HuEx 1.01 432 155 probesets for all human gene exons
RNA agilent human mRNAs44 000 probes for approximately 41 000 genes, with four arrays spotted on each slide.
RNA expression combined z-scoresGene expressions
RNA agilent human miRNAs15 000 probes for 723 human and 76 human viral miRNA’s. Each slide contains eight arrays.
RNA microRNA OSU V3 ChipCustom microarray developed at Microarray Shared Resource Comprehensive Cancer Center, OSU microarray facility. It contains 11 k probes (two technical replicates) for murin and human microRNAs together with hypothetical microRNAs and control probes.
RNA ABC transporters array47 specific oligonucleotide probes were designed for each of the ABC transporters using DNAStar Primer Select. Expression levels were measured by real-time quantitative RT-PCR using the LightCycler RNA Amplification SYBR Green kit and a LightCycler machine.
RNA OSU transporter arraySpotted 70-mer microarray
Protein lysate arrayReverse-phase lysate arrays (RPLA) for 162 antibodies for 94 genes. Each array included 64 lysates (60 cancer cells and 4 replicate control pools) in 10 serial 2-fold dilutions.
Compound activitiesNegative log10 (GI50) values of sulforhodamine B assay for ~ 50 K compounds, including more than 20 000 that passed quality control, 158 Food and Drug Administration approved and 79 clinical trial drugs. Higher values equate to higher sensitivity of cell lines.
CellMiner datasetDescription
DNA CNV-Roche NibleGen 385 K aCGH385 K element tiling array based on NCBI Build 35 of the human genome (HG17) and re-mapped to NCBI Build 35 (HG19); 50-mer tiling with a median probe spacing of 6000 bp.
DNA CNV-combined aCGHProbe intensities combined from four platforms: agilent human genome CGH Microarray 44A, Nimblegen HG19 CGH 385 K WG Tiling v2.0, Affymetrix GeneChip human mapping 500 k array set and Illumina Human1Mv1_C Beadchip
DNA single nucleotide polymorphism (SNP) per gene-Affy 500 KThis platform is used for whole-genome association studies. It is comprised of two arrays which enable genotyping of more than 500 000 SNPs.
DNA SNP per gene-Illumina 1 M SNPBeadChip array based on Illumina’s infinium assay with probes for 1 072 820 SNPs
DNA methylation-Illumina 450 KApproximately 450 000 probes querying the methylation status of CpG sites within and outside of genes.
RNA Affy HG-U133_ABHuman genome U133. 44 000 probeset 2-chip set. Gene expression.
RNA Affy HG-U133 Plus 2.0Aproximately 47 000 transcripts
RNA Affy HuEx 1.01 432 155 probesets for all human gene exons
RNA agilent human mRNAs44 000 probes for approximately 41 000 genes, with four arrays spotted on each slide.
RNA expression combined z-scoresGene expressions
RNA agilent human miRNAs15 000 probes for 723 human and 76 human viral miRNA’s. Each slide contains eight arrays.
RNA microRNA OSU V3 ChipCustom microarray developed at Microarray Shared Resource Comprehensive Cancer Center, OSU microarray facility. It contains 11 k probes (two technical replicates) for murin and human microRNAs together with hypothetical microRNAs and control probes.
RNA ABC transporters array47 specific oligonucleotide probes were designed for each of the ABC transporters using DNAStar Primer Select. Expression levels were measured by real-time quantitative RT-PCR using the LightCycler RNA Amplification SYBR Green kit and a LightCycler machine.
RNA OSU transporter arraySpotted 70-mer microarray
Protein lysate arrayReverse-phase lysate arrays (RPLA) for 162 antibodies for 94 genes. Each array included 64 lysates (60 cancer cells and 4 replicate control pools) in 10 serial 2-fold dilutions.
Compound activitiesNegative log10 (GI50) values of sulforhodamine B assay for ~ 50 K compounds, including more than 20 000 that passed quality control, 158 Food and Drug Administration approved and 79 clinical trial drugs. Higher values equate to higher sensitivity of cell lines.

Genomic viewer for tRNA-derived ncRNAs visualization is based on JBrowse (50). JBrowse is a fast and interactive genomic viewer built entirely with new HTML5 technology. We customized our browser by allowing users to search for both tRNAs or tRNA-derived ncRNAs using both genomic coordinates or identifiers.

Results

tRNA-derived ncRNAs identified

In our study, we employed NCI-60 (39) and TCGA sncRNA-seq datasets to identify tsRNAs, 5′ leader RNAs and tRFs, assessing their expression profile. In these datasets, we were able to identify 322 expressed tRNA-derived ncRNAs in NCI-60 (11 tRF-5s, 55 tRF-3s, 107 tsRNAs and 149 5′ leader RNAs) and 232 expressed tRNA-derived ncRNAs (53 tRF-5s, 58 tRF-3s, 63 tsRNAs and 58 5′ leader RNAs) in TCGA. A number of tsRNAs, 5′ leader RNAs and tRFs identified across NCI-60 cell lines and TCGA samples present noticeable expression levels. Moreover, all small RNA sequences mapped within four specific regions: 5′ end (tRF-5) and 3′ end (tRF-3) of mature tRNA, and 3′ trailer (tsRNA or tRF-1) and 5′ leader (5′ leader RNAs) regions of primary tRNA genes. If these small RNA sequences were the result of a random degradation process, their ends would be equally distributed along the lengths of tRNA genes with a comparable frequency (34, 35). In addition, we can observe that each TCGA cancer type (whose control samples are available) displays a different pattern of dysregulated tRNA-derived ncRNAs. Taken together, these results may suggest that these small RNAs are not fragments derived from the random cleavage of precursor and mature tRNAs, rather they are actively expressed and produced by specific ribonucleases and may be dysregulated in several human cancers. Indeed, recent evidences have shown dysregulated tRNA-derived ncRNAs in Chronic lymphocytic leukemia (CLL), colon, breast, ovary, lung and prostate cancers (8, 9, 11, 12, 51, 52).

tRFexplorer database

All identified sncRNAs have been integrated in a novel database named tRFexplorer. tRFexplorer is an easy-to-use, web-based database (https://trfexplorer.cloud/) containing tRNA-derived ncRNAs expression profiles for NCI-60 cell lines and TCGA samples, together with all omics and compound activities data available on CellMiner (Table 3). Leveraging CellMiner data, tRFexplorer enables users to perform correlation analysis inferring knowledge on the biological function of such molecules. Furthermore, a module allowing DE analysis for all tRNA-derived ncRNAs in TCGA samples has been released. A detailed explanation of tRFexplorer functions is provided in the following sections.

Browse. In the ‘Browse’ section, users can search for tsRNAs, 5′ leader RNAs and tRFs by ‘location’ or ‘expression’. Browsing by location enables users to search and visualize all tRNA-derived ncRNAs in the reference human genome (Figure 2). Specifically, through the custom genome browser, it is possible to interactively search tRNA-derived ncRNAs either by genomic coordinates or by identifier.

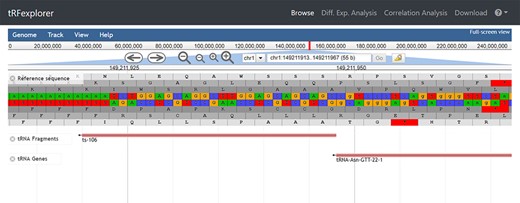

The genomic location of ts-106 visualized in our interactive genome viewer.
Figure 2

The genomic location of ts-106 visualized in our interactive genome viewer.

Browsing by expression section enables users to filter data using at least one of the following options: (i) the type of fragment (tRF-3, tRF-5, tsRNA and 5′ leader RNAs); (ii) the amino acid carried by the pre-tRNA; (iii) the anticodon sequence; (iv) the dataset in which the fragment is expressed (TCGA tumor types or NCI-60 cell lines); and (v) the tissue subtype (normal, tumor, metastatic, recurrent, etc). It is also possible to set a minimum RPM threshold for tRNA-derived ncRNAs. The search procedure will scan our database looking for all tRNA-derived ncRNAs matching users criteria, and the results will be reported in a table.

Once results become available, users may view a page with detailed information by selecting any single result. Such page will show plots for assessing RPM expression levels in both NCI-60 (Figure 3) and TCGA (Figure 4). A genomic viewer will show genomic locations for each tRNA-derived fragment.

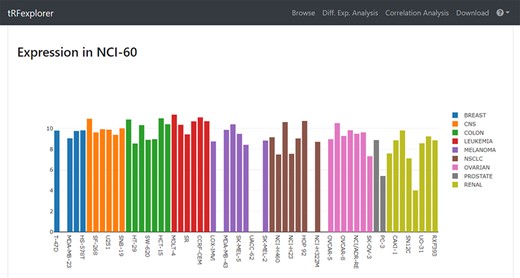

Example of bar plot which shows tRFdb-3022a expression across NCI-60 cell line.
Figure 3

Example of bar plot which shows tRFdb-3022a expression across NCI-60 cell line.

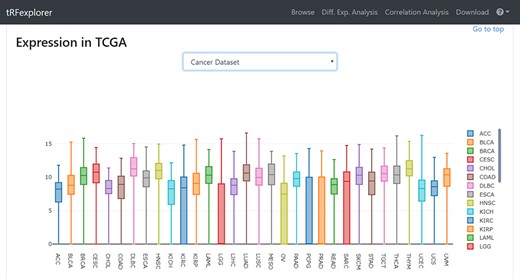

Example of box plot which shows tRFdb-3022a expression across TCGA cancer types.
Figure 4

Example of box plot which shows tRFdb-3022a expression across TCGA cancer types.

Correlation analysis. In the ‘Correlation Analysis’ section, users can perform correlation analyses of all identified tsRNAs, 5′ leader RNAs and tRFs in NCI-60, with the omics and compound activities data available on CellMiner (48) (Table 3). Correlation analysis can also be performed with mRNA/miRNA expression profiles, as well as patient survival data, of TCGA samples. Specifically, the user selects the correlation measure (Pearson or Spearman) and which dataset to consider. A list of correlated and anticorrelated tRNA-derived ncRNAs will be shown. The results can then be filtered by: (i) ncRNA name; (ii) genes, miRNAs, compound names; (iii) the genomic coordinates, when available; and (iv) the minimum correlation value. By clicking on each result, an interactive scatter plot with the data of the selected molecules will appear (Figure 5).

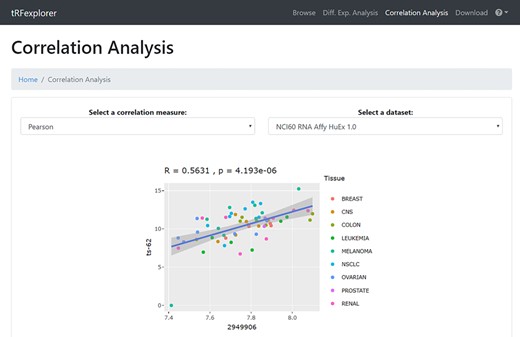

Example of a scatter plot which shows the correlation between the expression profile of ts-62 in NCI-60 and the expression of NOTCH4.
Figure 5

Example of a scatter plot which shows the correlation between the expression profile of ts-62 in NCI-60 and the expression of NOTCH4.

DE analysis. In the ‘DE analysis’ section, users can perform DE analysis to discover which tsRNAs, 5′ leader RNAs and tRFs are dysregulated in TCGA tumor types. To start the analysis, users select the cancer type and one of the available covariates (gender, race, vital status, sample type or classification). It is also possible to set the maximum P-value and minimum log-fold-change (logFC) for the analysis. After selecting all the parameters, users must select at least one contrast to perform for the DE analysis, in association with the selected covariate. Once the analysis is launched, a list of differentially expressed tRNA-derived ncRNAs with their logFC and FDR adjusted P-value will be shown together with an interactive volcano plot to better visualize their DE (Figure 6). By clicking on a specific point in the plot or row in the table, a swarm plot of the expression values will also be shown (Figure 6).

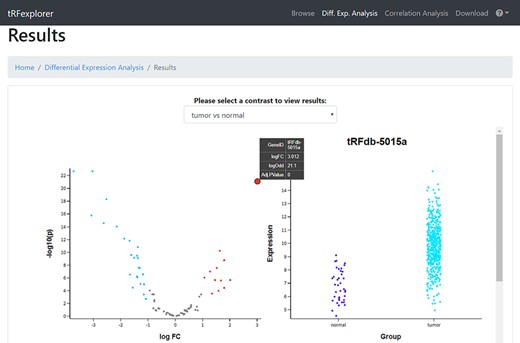

Vulcano plot which shows the differentially expressed tRNA-derived ncRNAs in TCGA Lung Squamous Cell Carcinoma (LUSC) when compared with control samples, and a swarm plot which specifically shows the difference in the expression profile of one (tRFdb-5015a) of the differentially expressed tRNA-derived ncRNAs.
Figure 6

Vulcano plot which shows the differentially expressed tRNA-derived ncRNAs in TCGA Lung Squamous Cell Carcinoma (LUSC) when compared with control samples, and a swarm plot which specifically shows the difference in the expression profile of one (tRFdb-5015a) of the differentially expressed tRNA-derived ncRNAs.

Comparison between tRFexplorer and MINTbase V.2.0

We compared data and features of tRFexplorer with MINTbase V2.0 (53), another established database of tRNA-derived ncRNAs in TCGA. MINTbase V2.0 has a user-friendly graphical user interface and it combines data from 768 different human datasets and 11.198 TCGA small RNA-Seq datasets. MINTbase V2.0, however, is focused only on tRFs, i-tRF and tiRNAs (or tRNA halves). Indeed, only tRNA-derived ncRNAs formed from mature tRNAs are taken into account. tsRNAs and 5′ leader RNAs, coming from pre-tRNAs, are not available in MINTbase V.2.0. On the other hand, tRFexplorer does not store tiRNAs and i-tRF. Table 4 reports the tRNA-derived ncRNAs classes stored in tRFexplorer and MINTbase V.2.0, respectively.

Concerning tRNA-derived ncRNAs identification methods, we aim to stress an important difference between tRFexplorer and MINTbase. The tRFs available in MINTbase V2.0 have been identified with MINTmap (54) prediction algorithm. Instead, tRFexplorer uses well-known mapping and counting tools (see Materials and Methods 2.1) to identify the RNA reads mapping on our custom annotated human genome. Specifically, we used the genomic coordinates obtained from tRFdb (34) for the identification of tRF-5s and tRF-3s and the genomic coordinates published on (8) for the identification of the experimental validated tsRNAs. Finally, for the 5′ leader RNAs identification, we counted the RNA reads mapped on the 20-nt upstream regions of all human tRNA genes. We used this strategy since tRFdb nomenclature is the most widely used for tRFs in literature while we used the genomic coordinates present on (8) for tsRNAs since they were identified by in vitro experiments and not with in-silico prediction.

Moreover, one of the aims of our work was to report only high confident tRFs and 5′ leader RNAs and in vitro validated tsRNAs. Specifically, we reported 399 tRNA-derived ncRNAs on tRFexplorer (some of them are expressed both on NCI-60 and TCGA datasets, while others are specifically expressed either on NCI-60 or TCGA datasets). On the contrary, a very large number of unique sequences reported on MINTbase V.2.0 (28.824) were identified through the prediction algorithm MINTmap. We noticed that many tRFs, i-tRFs and tiRNAs reported in MINTbase V.2.0 are expressed with 1 RPM in a single dataset (1 out of 12.023). Specifically, 6.248 out of 28.824 unique sequences present on MINTbase V.2.0 are expressed in only one dataset (1 out of 12.023), while 15.717 out of 28.824 unique sequences are expressed in only 10 out of 12.023 datasets. It is also well established that tRF-5s and tRF-3s have well-defined length and they can be further stratified in tRF-5a (14–16 nts), tRF-5b (22–24 nts), tRF-5c (28–30 nts), tRF-3a (about 18 nts) and tRF-3b (about 22 nts) subclasses accordingly to their size (13, 15, 30, 32). Moreover, tRF-5s and tRF-3s are produced by ribonuclease cleavage in the D-loop and T-loop region, respectively (13, 15, 30, 32). In MINTbase V2.0, we noticed that 252 out of 2304 tRF-5s and 1439 out of 4028 tRF-3s are longer than 31 and 25 nt, respectively, while 248 out of 2304 tRF-5s and 284 out of 4028 tRF-3s have sequences that do not end at their cleavage site in the D-loop or T-loop, respectively, but they overlap the anticodon region.

Table 4

tRNA-derived ncRNAs classes stored in tRFexplorer and MINTbase V2.0

tRFexplorerMINTbase V.2.0
5′ Leader RNAsx
tsRNAsx
tRF (tRF-5s and tRF-3s)xx
tiRNAs (tiRNA-5s and tiRNA-3s)x
i-tRFx
tRFexplorerMINTbase V.2.0
5′ Leader RNAsx
tsRNAsx
tRF (tRF-5s and tRF-3s)xx
tiRNAs (tiRNA-5s and tiRNA-3s)x
i-tRFx
Table 4

tRNA-derived ncRNAs classes stored in tRFexplorer and MINTbase V2.0

tRFexplorerMINTbase V.2.0
5′ Leader RNAsx
tsRNAsx
tRF (tRF-5s and tRF-3s)xx
tiRNAs (tiRNA-5s and tiRNA-3s)x
i-tRFx
tRFexplorerMINTbase V.2.0
5′ Leader RNAsx
tsRNAsx
tRF (tRF-5s and tRF-3s)xx
tiRNAs (tiRNA-5s and tiRNA-3s)x
i-tRFx

Indeed, the total number of tRNAs-derived ncRNAs in MINTbase V2.0 looks quite high if we consider that in the human genome, there are only about 400 tRNA genes and that many 5′ and 3′ end regions of mature tRNAs are shared across different tRNAs, and therefore, a single tRFs, with the same sequence, can be produced by different tRNAs. For this reason, to avoid overestimation, we decided to keep very low the number of identified tRNA-derived ncRNAs.

Finally, we conducted a comparison between the features of tRFexplorer vs those available in MINTbase V.2.0. tRFexplorer implements several specific functions such as: explore the genomic location of tRNA-derived ncRNAs through an interactive genomic browser; perform DE analysis in all TCGA samples; and finally correlation analysis with different TCGA (mRNAs and miRNAs expression) and CellMiner (omics data and compounds activities) data. Moreover, different high-quality plots are available on tRFexplorer to better understand the results. A detailed comparison of the features is shown in Table 5.

Table 5

Features comparison of tRFexplorer and MINTbase V2.0

tRFexplorerMINTbase V.2.0
DatasetsTCGA, NCI-60TCGA, human datasets
Total number datasets12.187 + 59 = 12.24612.023
tRNA-derived ncRNAs identification methodsMapping and counting on custom annotated human genomePrediction based on MINTmap
tRNA-derived ncRNAs filtering expression criteriaMean Log2 TPM > 1 across all samplesRPM ≥ 1 in a single sample
Unique sequences39928.824
tRFs sub-classification according to their sizeAvailableNot available
Normalization methodsTPM, RPMRPM
Interactive genomic browserAvailableNot available
DE analysisAvailableNot available
Correlation analysisAvailableNot available
Plot for data visualizationBar plot, box plot, scatter plot, volcano plot, swarm plotBar plot, box plot
Other data for tRNA-derived ncRNAs correlation analysisTCGA mRNAs and miRNAs expression, CellMiner datasetsNo other data available
tRFexplorerMINTbase V.2.0
DatasetsTCGA, NCI-60TCGA, human datasets
Total number datasets12.187 + 59 = 12.24612.023
tRNA-derived ncRNAs identification methodsMapping and counting on custom annotated human genomePrediction based on MINTmap
tRNA-derived ncRNAs filtering expression criteriaMean Log2 TPM > 1 across all samplesRPM ≥ 1 in a single sample
Unique sequences39928.824
tRFs sub-classification according to their sizeAvailableNot available
Normalization methodsTPM, RPMRPM
Interactive genomic browserAvailableNot available
DE analysisAvailableNot available
Correlation analysisAvailableNot available
Plot for data visualizationBar plot, box plot, scatter plot, volcano plot, swarm plotBar plot, box plot
Other data for tRNA-derived ncRNAs correlation analysisTCGA mRNAs and miRNAs expression, CellMiner datasetsNo other data available
Table 5

Features comparison of tRFexplorer and MINTbase V2.0

tRFexplorerMINTbase V.2.0
DatasetsTCGA, NCI-60TCGA, human datasets
Total number datasets12.187 + 59 = 12.24612.023
tRNA-derived ncRNAs identification methodsMapping and counting on custom annotated human genomePrediction based on MINTmap
tRNA-derived ncRNAs filtering expression criteriaMean Log2 TPM > 1 across all samplesRPM ≥ 1 in a single sample
Unique sequences39928.824
tRFs sub-classification according to their sizeAvailableNot available
Normalization methodsTPM, RPMRPM
Interactive genomic browserAvailableNot available
DE analysisAvailableNot available
Correlation analysisAvailableNot available
Plot for data visualizationBar plot, box plot, scatter plot, volcano plot, swarm plotBar plot, box plot
Other data for tRNA-derived ncRNAs correlation analysisTCGA mRNAs and miRNAs expression, CellMiner datasetsNo other data available
tRFexplorerMINTbase V.2.0
DatasetsTCGA, NCI-60TCGA, human datasets
Total number datasets12.187 + 59 = 12.24612.023
tRNA-derived ncRNAs identification methodsMapping and counting on custom annotated human genomePrediction based on MINTmap
tRNA-derived ncRNAs filtering expression criteriaMean Log2 TPM > 1 across all samplesRPM ≥ 1 in a single sample
Unique sequences39928.824
tRFs sub-classification according to their sizeAvailableNot available
Normalization methodsTPM, RPMRPM
Interactive genomic browserAvailableNot available
DE analysisAvailableNot available
Correlation analysisAvailableNot available
Plot for data visualizationBar plot, box plot, scatter plot, volcano plot, swarm plotBar plot, box plot
Other data for tRNA-derived ncRNAs correlation analysisTCGA mRNAs and miRNAs expression, CellMiner datasetsNo other data available

Discussion

Our study aims at identifying tsRNAs, 5′ leader RNAs and tRFs in NCI-60 and TCGA small RNA-seq datasets, together with an intuitive web interface for data querying and browsing. For this purpose, we implemented a custom bioinformatics pipeline for the detection and quantification of these ncRNAs from small RNA-Seq data. Due to TCGA’s large sample base, we took into consideration NCI-60 in light of its extensive use for the testing of novel compounds and the identification of drug-response biomarkers (55–60). We analyzed recent versions of the NCI-60 (39) and TCGA small RNA-seq datasets to identify and establish expression profiles for tsRNAs, 5′ leader RNAs and tRFs. In these datasets, we were able to detect 322 expressed tRNA-derived ncRNAs in NCI-60 (11 tRF-5s, 55 tRF-3s, 107 tsRNAs and 149 5′ leader RNAs) and 232 expressed tRNA-derived ncRNAs in TCGA samples (53 tRF-5s, 58 tRF-3s, 63 tsRNAs and 58 5′ leader RNAs). Our reference tsRNA and tRF annotation were obtained from (8) and tRFdb (34), respectively. 5′ leader RNAs were obtained from the 20-nt upstream region of tRNA genes and named by using the tRNA identifier from which they derived.

It is noteworthy that the high expression levels of some tsRNAs, 5′ leader RNAs and tRFs in both NCI-60 and TCGA, and their DEs across TCGA cancer types indicate that these molecules are not fragments derived from the random cleavage of precursor and mature tRNAs, suggesting that such molecules may be actively expressed and produced by specific ribonucleases. Indeed, if tsRNAs, 5′ leader RNAs and tRFs were the results of a random degradation process, their ends would be equally distributed along the lengths of tRNA genes with a comparable frequency (34, 35). In our case, small RNA sequences mapped on four specific regions: 5′ end (tRF-5) and 3′ end (tRF-3) of mature tRNA, and 3′ trailer (tsRNA or tRF-1) and 5′ leader (5′ leader RNAs) regions of primary tRNA genes. Pre-tRNA molecules undergo a maturation process inside the nucleus, where 5′ leader and 3′ trailer sequences are cleaved by RNAse P and RNAse Z, respectively (15). It is established that tsRNAs are derived from the 3′ trailer region of pre-tRNAs (9). Conversely, the identification of small RNA sequencing reads mapping within the pre-tRNA 5′ leader genomic region represents an additional evidence of this yet poorly investigated class of tsRNAs (24, 25, 61). Although some authors already reported tRNA fragments mapping between 5′ leader region and mature tRNA (36, 62), our 5′ sequences are entirely located inside the pre-tRNA leader region. Furthermore, such sequences extend up to the RNAse P cleavage site, without going beyond such site. The high expression of 5′ leader RNAs and their specific ends in correspondence of RNAse P cutting site supports the hypothesis that these molecules could have a biological function, although an in vitro validation is still missing.

All identified tsRNAs, 5′ leader RNAs and tRFs have been stored in tRFexplorer, a novel database accessible through an easy-to-use web interface. tRFexplorer allows us to visualize the expression profile of each tsRNAs, 5′ leader RNAs and tRFs for all NCI-60 cell lines and TCGA tumor types. Furthermore, it enables DE analysis for all tumor types present in TCGA and correlation analysis with all omics and compounds activity data reported on CellMiner. The interface is comprised of three main sections: ‘Browse’; ‘DE Analysis’; and ‘Correlation Analysis’. The ‘Browse’ section is used to search tsRNAs, 5′ leader RNAs and tRFs by location and expression. For each sncRNA, its expression is displayed in both NCI-60 cell lines and TCGA tumor types. Moreover, an interactive genomic viewer allows users to search and visualize all the identified tRNA-derived ncRNAs in the reference human genome. Through the DE analysis panel, users can discover which tRNA-derived ncRNAs are dysregulated in each TCGA tumor type. By selecting the cancer type to analyze and one of their variables (gender, race, vital status, sample type or classification), together with the P-value threshold and minimum logFC, a list of differentially expressed tRNA-derived ncRNAs with their logFC and FDR adjusted P-value will be shown. Volcano plots and swarm plots are also shown in order to better elucidate their DE. Finally, through the ‘Correlation Analysis’ panel, the user can perform correlation analyses of all identified tRNA-derived ncRNAs in NCI-60 with the omics and compound activities data available on CellMiner (48) (Table 3). In addition, correlation analysis with genes, miRNA expression and patients’ survival data of TCGA samples are also possible. The correlation tool will yield only the molecules that have an absolute correlation coefficient greater than 0.5. The user also has the option to select two different correlation measures (Pearson and Spearman).

The correlation analysis aids in the investigation of the biological function of tRNA-derived ncRNAs, as there is currently poor evidence in such regard. For this purpose, their correlation or anticorrelation with protein levels, mRNA and miRNA expressions, could provide a first clue regarding a potential biological pathway in which these ncRNAs may be involved.

Moreover, tRNA-derived ncRNAs showing high correlations or anticorrelations with the activity profiles (chemoresistance and chemosensitivity) of a specific antitumor compound could be selected for further studies as drug response biomarkers. Indeed, in a recent study, it has been shown that some tRFs are dysregulated in cell lines of breast cancer resistant to Trastuzumab against sensitive cell lines (63).

Finally, we compared data and features of tRFexplorer with MINTbase V2.0 (53), a database of tRNA-derived ncRNAs in TCGA. From the comparison, we can establish that, to avoid overestimation and artifacts within the databases, tRFexplorer stores less tRNA-derived ncRNAs with respect to MINTbase. On the other hand, tRFexplorer presents a more flexible interface allowing rich functional data analysis.

Conclusion

This study introduces a novel database called tRFexplorer equipped with a Web App enabling the exploration of tRNA-derived ncRNAs expression profiles (tsRNAs, 5′ leader pre-tRNAs derived small RNAs, and tRFs) on the NCI-60 panel and TCGA samples. By exploiting DE analysis, tRFexplorer allows users to study the specific pattern of dysregulated tRNA-derived ncRNAs of each TCGA cancer type. Finally, a correlation analysis tool provided by our software may be employed as an instrument to investigate the putative biological roles of these molecules in the absence of direct experimental validation of their functions while allowing users to consider further in vitro and in vivo investigations on the most promising molecules.

Availability

tRFexplorer is available at https://trfexplorer.cloud/.

Acknowledgements

The results presented in this manuscript are in part based upon data generated by the TCGA Research Network: http://cancergenome.nih.gov/ (Project #19459 - tsRNA signature in Cancer - Consent #73394-2).

Funding

A.L.F. is supported by the PhD fellowship on Complex Systems for Physical, Socio-economic and Life Sciences funded by the Italian MIUR ‘PON RI FSE-FESR 2014-2020’. S.A., A.F. and A.P. have been partially supported by the research project ‘Marcatori molecolari e clinico-strumentali precoci, nelle patologie metaboliche e cronico-degenerative’ founded by the Department of Clinical and Experimental Medicine of the University of Catania. S.A., A.F. and A.P. have also been partially supported by the MIUR PON research project BILIGeCT ‘Liquid Biopsies for Cancer Clinical Management’. A.P. has also been partially supported by the Italian MIUR FFABR grant.

Conflict of interest. The authors declare that they have no conflict of interests.

REFERENCES

1.

Veneziano
,
D.
,
Nigita
,
G.
and
Ferro
,
A.
(
2015
)
Computational approaches for the analysis of ncRNA through deep sequencing techniques
.
Front. Bioeng. Biotechnol.
,
3
,
77
.

2.

Saleembhasha
,
A.
and
Mishra
,
S.
(
2018
)
Novel molecules lncRNAs, tRFs and circRNAs deciphered from next-generation sequencing/RNA sequencing: computational databases and tools
.
Briefings Funct. Genomics
,
17
,
15
25
.

3.

Veneziano
,
D.
,
Di Bella
,
S.
,
Nigita
,
G.
et al.  (
2016
)
Noncoding RNA: current deep sequencing data analysis approaches and challenges
.
Hum. Mutat.
,
37
,
1283
1298
.

4.

Kim
,
H.K.
,
Fuchs
,
G.
,
Wang
,
S.
et al.  (
2017
)
A transfer-RNA-derived small RNA regulates ribosome biogenesis
.
Nature
,
552
,
57
62
.

5.

Schorn
,
A.J.
,
Gutbrod
,
M.J.
,
LeBlanc
,
C.
et al.  (
2017
)
LTR-retrotransposon control by tRNA-derived small RNAs
.
Cell
,
170
,
61
71.e11
.

6.

Ivanov
,
P.
(
2015
)
Emerging roles of tRNA-derived fragments in viral infections: the case of respiratory syncytial virus. Emerging roles of tRNA-derived fragments in viral infections: the case of respiratory syncytial virus
.
Mol. Ther.
,
23
,
1557
1558
.

7.

Saikia
,
M.
,
Jobava
,
R.
,
Parisien
,
M.
et al.  (
2014
)
Angiogenin-cleaved tRNA halves interact with cytochrome c, protecting cells from apoptosis during osmotic stress
.
Mol. Cell. Biol.
,
34
,
2450
2463
.

8.

Balatti
,
V.
,
Nigita
,
G.
,
Veneziano
,
D.
et al.  (
2017
)
tsRNA signatures in cancer
.
Proc. Natl. Acad. Sci. U. S. A.
,
114
,
8071
8076
.

9.

Pekarsky
,
Y.
,
Balatti
,
V.
,
Palamarchuk
,
A.
et al.  (
2016
)
Dysregulation of a family of short noncoding RNAs, tsRNAs, in human cancer
.
Proc. Natl. Acad. Sci. U. S. A.
,
113
,
5071
5076
.

10.

Slack
,
F.J.
(
2018
)
Tackling tumors with small RNAs derived from transfer RNA
.
N. Engl. J. Med.
,
378
,
1842
1843
.

11.

Huang
,
B.
,
Yang
,
H.
,
Cheng
,
X.
et al.  (
2017
)
tRF/miR-1280 suppresses stem cell-like cells and metastasis in colorectal cancer
.
Cancer Res.
,
77
,
3194
3206
.

12.

Shao
,
Y.
,
Sun
,
Q.
,
Liu
,
X.
et al.  (
2017
)
tRF-Leu-CAG promotes cell proliferation and cell cycle in non-small cell lung cancer
.
Chem. Biol. Drug Des.
,
90
,
730
738
.

13.

Balatti
,
V.
,
Pekarsky
,
Y.
and
Croce
,
C.M.
(
2017
)
Role of the tRNA-derived small RNAs in cancer: new potential biomarkers and target for therapy
.
Adv. Cancer Res.
,
135
,
173
187
.

14.

Kuscu
,
C.
,
Kumar
,
P.
,
Kiran
,
M.
et al.  (
2018
)
tRNA fragments (tRFs) guide ago to regulate gene expression post-transcriptionally in a dicer-independent manner
.
RNA
,
24
,
1093
1105
.

15.

Li
,
S.
,
Xu
,
Z.
and
Sheng
,
J.
(
2018
)
tRNA-derived small RNA: a novel regulatory small non-coding RNA
.
Genes
,
9
,
E246
.

16.

Zhao
,
C.
,
Tolkach
,
Y.
,
Schmidt
,
D.
et al.  (
2018
)
5′-tRNA halves are dysregulated in clear cell renal cell carcinoma
.
J. Urol.
,
199
,
378
383
.

17.

Yeri
,
A.
,
Courtright
,
A.
,
Reiman
,
R.
et al.  (
2017
)
Total extracellular small RNA profiles from plasma, saliva, and urine of healthy subjects
.
Sci. Rep.
,
7
,
44061
.

18.

Dhahbi
,
J.M.
,
Spindler
,
S.R.
,
Atamna
,
H.
et al.  (
2014
)
Deep sequencing of serum small RNAs identifies patterns of 5′ tRNA half and YRNA fragment expression associated with breast cancer
.
Biomark. Cancer
,
6
,
BIC.S20764
.

19.

Godoy
,
P.M.
,
Bhakta
,
N.R.
,
Barczak
,
A.J.
et al.  (
2018
)
Large differences in small RNA composition between human biofluids
.
Cell Rep.
,
25
,
1346
1358
.

20.

Walczyk
,
D.
,
Gößringer
,
M.
,
Rossmanith
,
W.
et al.  (
2016
)
Analysis of the cleavage mechanism by protein-only RNase P using precursor tRNA substrates with modifications at the cleavage site
.
J. Mol. Biol.
,
428
,
4917
4928
.

21.

Brillante
,
N.
,
Gößringer
,
M.
,
Lindenhofer
,
D.
et al.  (
2016
)
Substrate recognition and cleavage-site selection by a single-subunit protein-only RNase P
.
Nucleic Acids Res.
,
44
,
2323
2336
.

22.

Simos
,
G.
and
Hurt
,
E.
(
1999
)
Transfer RNA biogenesis: a visa to leave the nucleus
.
Curr. Biol.
,
9
,
R238
R241
.

23.

Lee
,
Y.S.
,
Shibata
,
Y.
,
Malhotra
,
A.
et al.  (
2009
)
A novel class of small RNAs: tRNA-derived RNA fragments (tRFs)
.
Genes Dev.
,
23
,
2639
2649
.

24.

Leung
,
Y.Y.
,
Kuksa
,
P.P.
,
Amlie-Wolf
,
A.
et al.  (
2016
)
DASHR: database of small human noncoding RNAs
.
Nucleic Acids Res.
,
44
,
D216
D222
.

25.

Chung
,
I.-F.
,
Chang
,
S.-J.
,
Chen
,
C.-Y.
et al.  (
2017
)
YM500v3: a database for small RNA sequencing in human cancer research
.
Nucleic Acids Res.
,
45
,
D925
D931
.

26.

Fu
,
H.
,
Feng
,
J.
,
Liu
,
Q.
et al.  (
2009
)
Stress induces tRNA cleavage by angiogenin in mammalian cells
.
FEBS Lett.
,
583
,
437
442
.

27.

Thompson
,
D.M.
and
Parker
,
R.
(
2009
)
The RNase Rny1p cleaves tRNAs and promotes cell death during oxidative stress in Saccharomyces cerevisiae
.
J. Cell Biol.
,
185
,
43
50
.

28.

Kumar
,
P.
,
Anaya
,
J.
,
Mudunuri
,
S.B.
et al.  (
2014
)
Meta-analysis of tRNA derived RNA fragments reveals that they are evolutionarily conserved and associate with AGO proteins to recognize specific RNA targets
.
BMC Biol.
,
12
,
78
.

29.

Xu
,
W.-L.
,
Yang
,
Y.
,
Wang
,
Y.-D.
et al.  (
2017
)
Computational approaches to tRNA-derived small RNAs
.
Noncoding RNA
,
3
,
E2
.

30.

Shen
,
Y.
,
Yu
,
X.
,
Zhu
,
L.
et al.  (
2018
)
Transfer RNA-derived fragments and tRNA halves: biogenesis, biological functions and their roles in diseases
.
J. Mol. Med.
,
96
,
1167
1176
.

31.

Cole
,
C.
,
Sobala
,
A.
,
Lu
,
C.
et al.  (
2009
)
Filtering of deep sequencing data reveals the existence of abundant dicer-dependent small RNAs derived from tRNAs
.
RNA
,
15
,
2147
2160
.

32.

Kumar
,
P.
,
Kuscu
,
C.
and
Dutta
,
A.
(
2016
)
Biogenesis and function of transfer RNA-related fragments (tRFs)
.
Trends Biochem. Sci.
,
41
,
679
689
.

33.

Telonis
,
A.G.
,
Loher
,
P.
,
Honda
,
S.
et al.  (
2015
)
Dissecting tRNA-derived fragment complexities using personalized transcriptomes reveals novel fragment classes and unexpected dependencies
.
Oncotarget
,
6
,
24797
24822
.

34.

Kumar
,
P.
,
Mudunuri
,
S.B.
,
Anaya
,
J.
et al.  (
2015
)
tRFdb: a database for transfer RNA fragments
.
Nucleic Acids Res.
,
43
,
D141
D145
.

35.

Zheng
,
L.-L.
,
Xu
,
W.-L.
,
Liu
,
S.
et al.  (
2016
)
tRF2Cancer: A web server to detect tRNA-derived small RNA fragments (tRFs) and their expression in multiple cancers
.
Nucleic Acids Res.
,
44
,
W185
W193
.

36.

Hanada
,
T.
,
Weitzer
,
S.
,
Mair
,
B.
et al.  (
2013
)
CLP1 links tRNA metabolism to progressive motor-neuron loss
.
Nature
,
495
,
474
480
.

37.

Shoemaker
,
R.H.
(
2006
)
The NCI60 human tumour cell line anticancer drug screen
.
Nat. Rev. Cancer
,
6
,
813
823
.

38.

Niu
,
N.
and
Wang
,
L.
(
2015
)
In vitro human cell line models to predict clinical response to anticancer drugs
.
Pharmacogenomics
,
16
,
273
285
.

39.

Marshall
,
E.A.
,
Sage
,
A.P.
,
Ng
,
K.W.
et al.  (
2017
)
Small non-coding RNA transcriptome of the NCI-60 cell line panel
.
Sci. Data
,
4
,
170157
.

40.

Chan
,
P.P.
and
Lowe
,
T.M.
(
2016
)
GtRNAdb 2.0: an expanded database of transfer RNA genes identified in complete and draft genomes
.
Nucleic Acids Res.
,
44
,
D184
D189
.

41.

Martin
,
M.
(
2011
)
Cutadapt removes adapter sequences from high-throughput sequencing reads
.
EMBnet.j
,
17
,
10
12
.

42.

Kim
,
D.
,
Pertea
,
G.
,
Trapnell
,
C.
et al.  (
2013
)
TopHat2: accurate alignment of transcriptomes in the presence of insertions, deletions and gene fusions
.
Genome Biol.
,
14
,
R36
.

43.

Anders
,
S.
,
Pyl
,
P.T.
and
Huber
,
W.
(
2015
)
HTSeq—a python framework to work with high-throughput sequencing data
.
Bioinformatics
,
31
,
166
169
.

44.

Wagner
,
G.P.
,
Kin
,
K.
and
Lynch
,
V.J.
(
2012
)
Measurement of mRNA abundance using RNA-seq data: RPKM measure is inconsistent among samples
.
Theory Biosci.
,
131
,
281
285
.

45.

Mortazavi
,
A.
,
Williams
,
B.A.
,
McCue
,
K.
et al.  (
2008
)
Mapping and quantifying mammalian transcriptomes by RNA-Seq
.
Nat. Methods
,
5
,
621
628
.

46.

Ritchie
,
M.E.
,
Phipson
,
B.
,
Wu
,
D.
et al.  (
2015
)
Limma powers differential expression analyses for RNA-sequencing and microarray studies
.
Nucleic Acids Res.
,
43
,
e47
.

47.

Su
,
S.
,
Law
,
C.W.
,
Ah-Cann
,
C.
et al.  (
2017
)
Glimma: interactive graphics for gene expression analysis
.
Bioinformatics
,
33
,
2050
2052
.

48.

Reinhold
,
W.C.
,
Sunshine
,
M.
,
Liu
,
H.
et al.  (
2012
)
CellMiner: a web-based suite of genomic and pharmacologic tools to explore transcript and drug patterns in the NCI-60 cell line set
.
Cancer Res.
,
72
,
3499
3511
.

49.

Reinhold
,
W.C.
,
Sunshine
,
M.
,
Varma
,
S.
et al.  (
2015
)
Using CellMiner 1.6 for systems pharmacology and genomic analysis of the NCI-60
.
Clin. Cancer Res.
,
21
,
3841
3852
.

50.

Buels
,
R.
,
Yao
,
E.
,
Diesh
,
C.M.
et al.  (
2016
)
JBrowse: a dynamic web platform for genome visualization and analysis
.
Genome Biol.
,
17
,
66
.

51.

Feng
,
W.
,
Li
,
Y.
,
Chu
,
J.
et al.  (
2018
)
Identification of tRNA-derived small noncoding RNAs as potential biomarkers for prediction of recurrence in triple-negative breast cancer. Identification of tRNA-derived small noncoding RNAs as potential biomarkers for prediction of recurrence in triple-negative breast cancer
.
Cancer Med.
,
7
,
5130
5144
.

52.

Olvedy
,
M.
,
Scaravilli
,
M.
,
Hoogstrate
,
Y.
et al.  (
2016
)
A comprehensive repertoire of tRNA-derived fragments in prostate cancer
.
Oncotarget
,
7
,
24766
24777
.

53.

Pliatsika
,
V.
,
Loher
,
P.
,
Magee
,
R.
et al.  (
2018
)
MINTbase v2.0: a comprehensive database for tRNA-derived fragments that includes nuclear and mitochondrial fragments from all the cancer genome atlas projects
.
Nucleic Acids Res.
,
46
,
D152
D159
.

54.

Loher
,
P.
,
Telonis
,
A.G.
and
Rigoutsos
,
I.
(
2017
)
MINTmap: fast and exhaustive profiling of nuclear and mitochondrial tRNA fragments from short RNA-seq data
.
Sci. Rep.
,
7
,
41184
.

55.

Raghu
,
V.K.
,
Beckwitt
,
C.H.
,
Warita
,
K.
et al.  (
2018
)
Biomarker identification for statin sensitivity of cancer cell lines
.
Biochem. Biophys. Res. Commun.
,
495
,
659
665
.

56.

Gholami
,
A.M.
,
Hahne
,
H.
,
Wu
,
Z.
et al.  (
2013
)
Global proteome analysis of the NCI-60 cell line panel
.
Cell Rep.
,
4
,
609
620
.

57.

Blower
,
P.E.
,
Chung
,
J.-H.
,
Verducci
,
J.S.
et al.  (
2008
)
MicroRNAs modulate the chemosensitivity of tumor cells
.
Mol. Cancer Ther.
,
7
,
1
9
.

58.

van Jaarsveld
,
M.T.M.
,
Helleman
,
J.
,
Boersma
,
A.W.M.
et al.  (
2013
)
miR-141 regulates KEAP1 and modulates cisplatin sensitivity in ovarian cancer cells
.
Oncogene
,
32
,
4284
4293
.

59.

Yang
,
D.S.
(
2014
)
Novel prediction of anticancer drug chemosensitivity in cancer cell lines: evidence of moderation by microRNA expressions
.
Conf. Proc. IEEE Eng. Med. Biol. Soc.
,
2014
,
4780
4786
.

60.

Li
,
J.
and
Mansmann
,
U.R.
(
2015
)
A microRNA molecular modeling extension for prediction of colorectal cancer treatment
.
BMC Cancer
,
15
,
472
.

61.

Kuksa
,
P.P.
,
Amlie-Wolf
,
A.
,
Katanic
,
Z.
et al.  (
2018
)
DASHR 2.0: integrated database of human small non-coding RNA genes and mature products
.
Bioinformatics
,
1
,
7
.

62.

Anderson
,
P.
and
Ivanov
,
P.
(
2014
)
tRNA fragments in human health and disease
.
FEBS Lett.
,
588
,
4297
4304
.

63.

Sun
,
C.
,
Yang
,
F.
,
Zhang
,
Y.
et al.  (
2018
)
tRNA-derived fragments as novel predictive biomarkers for Trastuzumab-resistant breast cancer
.
Cell. Physiol. Biochem.
,
49
,
419
431
.

This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted reuse, distribution, and reproduction in any medium, provided the original work is properly cited.
